Addgene

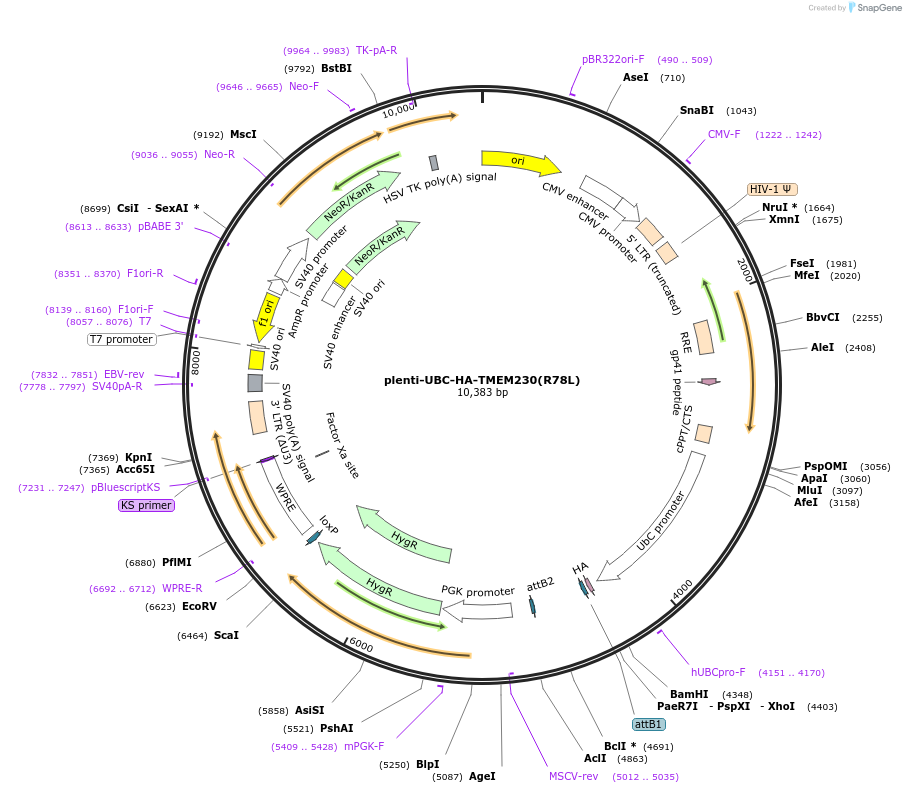

plenti-UBC-HA-TMEM230(R78L)
(Plasmid #225517)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 225517 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    plenti-UBC-gate-3xHA-pGK-PUR (Addgene #107396)
  • Vector type
    Lentiviral
  • Selectable markers
    Hygromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    TMEM230
  • Species
    H. sapiens (human)
  • Mutation
    R78L
  • Entrez Gene
    TMEM230 (a.k.a. C20orf30, HSPC274, dJ1116H23.2.1)
  • Tag / Fusion Protein
    • 3xHA (N terminal on insert)

Cloning Information

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    William Kaelin, backbone used is Addgene #107396.

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please visit https://doi.org/10.1101/2025.02.07.636106 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    plenti-UBC-HA-TMEM230(R78L) was a gift from Wade Harper (Addgene plasmid # 225517 ; http://n2t.net/addgene:225517 ; RRID:Addgene_225517)

  • For your References section:

    EndoMAP.v1, a Structural Protein Complex Landscape of Human Endosomes. Gonzalez-Lozano MA, Schmid EW, Whelan EM, Jiang Y, Paulo JA, Walter JC, Harper JW. bioRxiv [Preprint]. 2025 Feb 9:2025.02.07.636106. doi: 10.1101/2025.02.07.636106. 10.1101/2025.02.07.636106 PubMed 39975243
