p-HITI-F9-Ckm
(Plasmid
#226120)
-
PurposeHITI insert construct with Ckm gRNA and hF9 transgene
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 226120 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $89 * |
* Log in to view industry pricing.

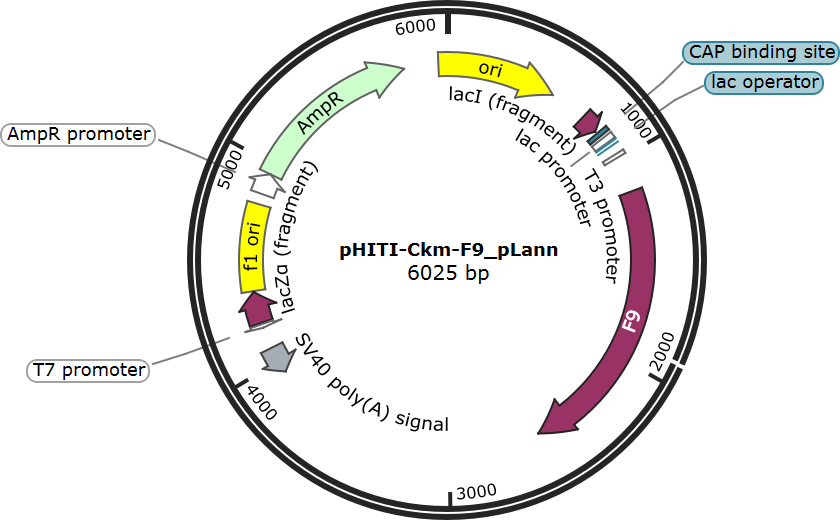

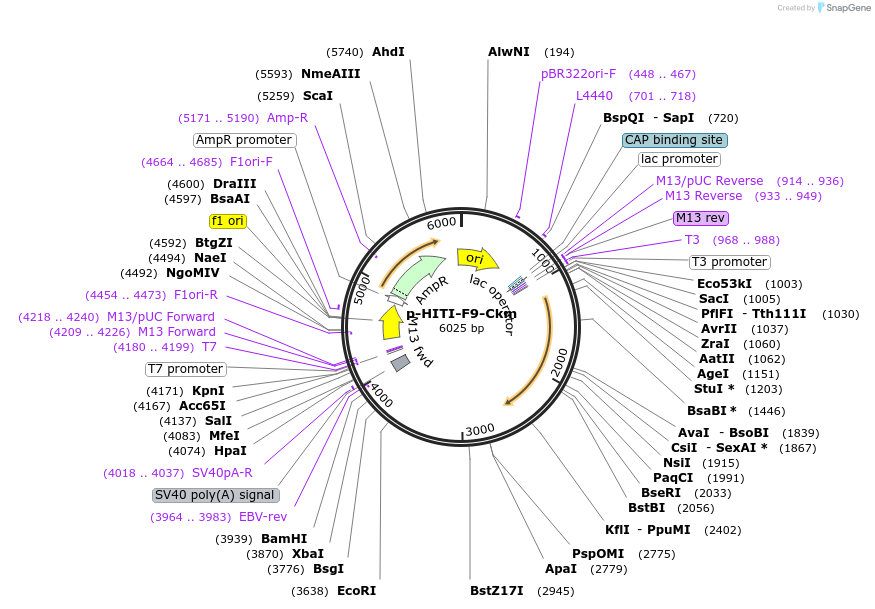

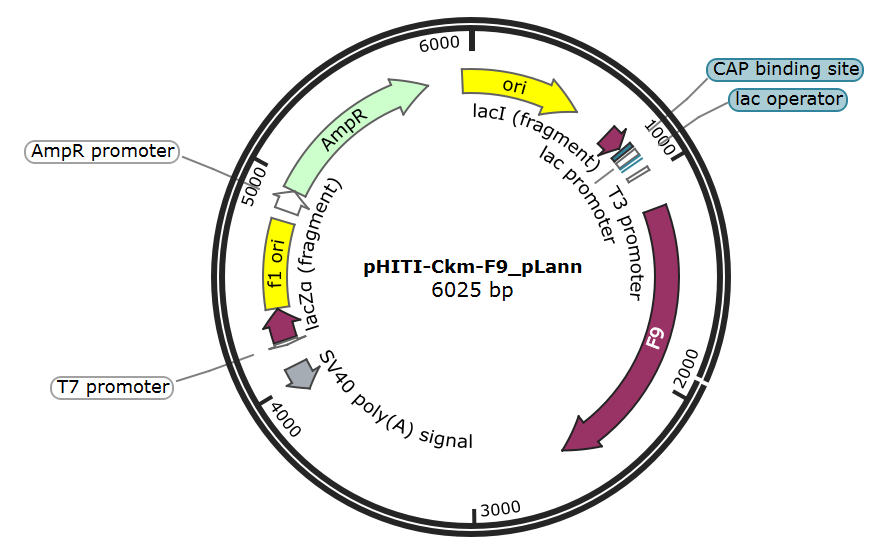

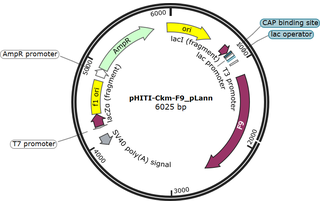

Backbone
-
Vector backbonepZDonor
-
Backbone manufacturerSigma
- Total vector size (bp) 6025
-
Vector typeMammalian Expression, CRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert 1
-
Gene/Insert nameF9
-
SpeciesH. sapiens (human)
-
Insert Size (bp)2774
-
Entrez GeneF9 (a.k.a. F9 p22, FIX, HEMB, P19, PTC, THPH8)
Cloning Information for Gene/Insert 1
- Cloning method Gibson Cloning
- 5′ sequencing primer M13R (Common Sequencing Primers)
Gene/Insert 2
-
Gene/Insert nameCkm gRNA
-
Alt nameCkm
-
SpeciesM. musculus (mouse)
-
Entrez GeneCkm (a.k.a. CPK-M, Ckmm, M-CK, MCK)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
part of the insert was cloned from Addgene Plasmid #182141 Please visit https://doi.org/10.1101/2024.03.18.582796 for bioRxiv preprint.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
p-HITI-F9-Ckm was a gift from Christopher Nelson (Addgene plasmid # 226120 ; http://n2t.net/addgene:226120 ; RRID:Addgene_226120) -
For your References section:
Precision and efficacy of RNA-guided DNA integration in high-expressing muscle loci. Padmaswari MH, Bulliard G, Agrawal S, Jia MS, Khadgi S, Murach KA, Nelson CE. Mol Ther Nucleic Acids. 2024 Sep 2;35(4):102320. doi: 10.1016/j.omtn.2024.102320. eCollection 2024 Dec 10. 10.1016/j.omtn.2024.102320 PubMed 39398225
