pAAV-TRE-fDIO-mem-seTurboID-IRES-tTA
(Plasmid
#237889)
-
PurposeAmplifier AAV vector of Dual-AAV sparse labeling system encoding membrane-tethered seTurboID
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 237889 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $89 |
Want a viral vector made from this plasmid?
Make a packaging request and we'll get back to you.
Please log in to submit a packaging request.
-
SerotypeSelect serotype for details See details about
-
PricingSelect serotype and quantity $ USD for preparation of µL virus + $32 USD for plasmid.
-
How this works
- Place a request for a quantity of 2 (0.2 mL), 10 (1 mL), 25 (2.5 mL), or 50 (5 mL). Our all-inclusive pricing includes DNA production and QC.
- Addgene will quickly confirm that we can produce a high-quality prep for you.
- Track your request and place an order from within your account. Payment information must be added before we can begin processing your order.
- Receive your prep in 6–9 weeks after the MTA is approved by your organization.
- Learn more about our Packaged on Request Service.

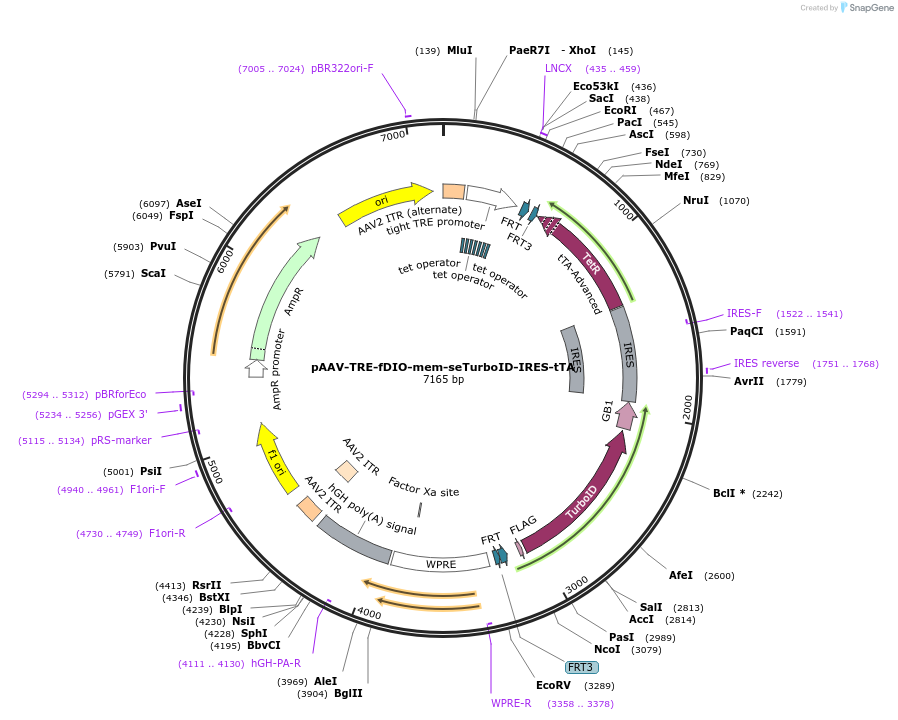

Backbone
-
Vector backbonepAAV
- Total vector size (bp) 7176
-
Vector typeMammalian Expression, AAV
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namemem-seTurboID
-
SpeciesSynthetic
-
Insert Size (bp)1242
- Promoter TRE
-
Tags
/ Fusion Proteins
- FLAG tag (N terminal on insert)
- GAP43 palmitoylation signal (N terminal on insert)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer AAGACAGGGCCAGGTTTCCG (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pAAV-TRE-fDIO-mem-seTurboID-IRES-tTA was a gift from Rui Lin (Addgene plasmid # 237889 ; http://n2t.net/addgene:237889 ; RRID:Addgene_237889) -
For your References section:
Ultrabright chemical labeling enables rapid neural connectivity profiling in large tissue samples. Zhong S, Zhang X, Gao X, Li Z, Huang L, Guo Q, Gong R, Ren J, Luo M, Lin R. Neuron. 2025 Sep 18:S0896-6273(25)00657-9. doi: 10.1016/j.neuron.2025.08.022. 10.1016/j.neuron.2025.08.022 PubMed 40972576
