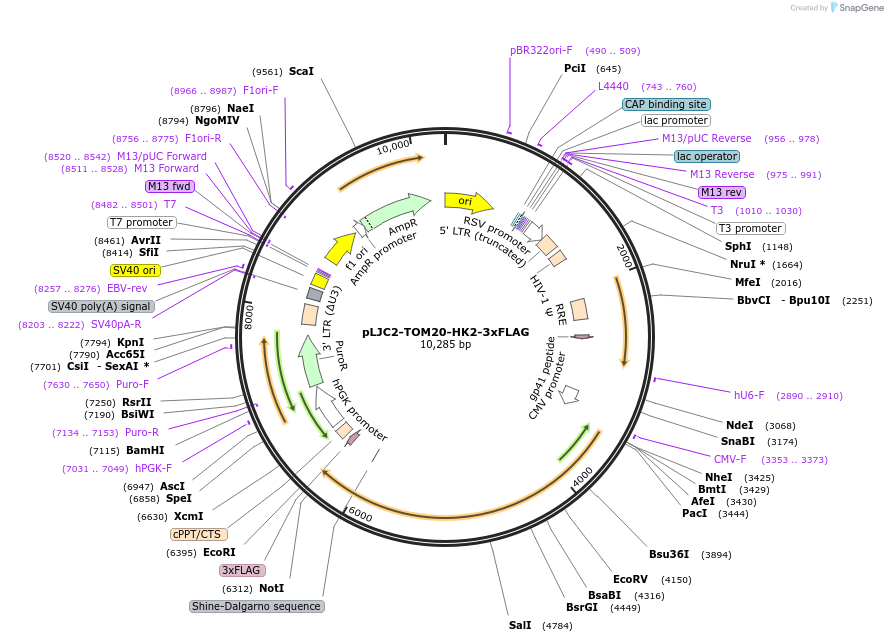

pLJC2-TOM20-HK2-3xFLAG
(Plasmid #239245)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 239245 Standard format: Plasmid sent in bacteria as agar stab 1 $89
Add to Cart

Backbone

  • Vector backbone
    pLJC2
  • Vector type
    Mammalian Expression, Lentiviral
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    TOM20-HK2
  • Species
    H. sapiens (human)
  • Mutation
    Insert contains the set of silent mutations described for pLJC2-HK2-3xFLAG. (See comments for further detail)
  • Entrez Gene
    HK2 (a.k.a. HKII, HXK2)
  • Entrez Gene
    TOMM20 (a.k.a. MAS20, MOM19, TOM20)
  • Promoter CMV
  • Tag / Fusion Protein
    • 3xFLAG (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site PacI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer TGTACGGTGGGAGGTCTATATAAG
  • 3′ sequencing primer CCCTTTTCTTTTAAAATTGTGGATGAATACTGCC
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Insert sequence encodes 30 amino acids that comprise the transmembrane domain of human TOM20 at the N-terminus, followed by a GGS linker and HK2 (from Ile2)

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLJC2-TOM20-HK2-3xFLAG was a gift from Jason Cantor (Addgene plasmid # 239245 ; http://n2t.net/addgene:239245 ; RRID:Addgene_239245)

  • For your References section:

    Hexokinase detachment from mitochondria drives the Warburg effect to support compartmentalized ATP production. Huggler KS, Flickinger KM, Forsberg MH, Mellado Fritz CA, Chang GR, McGuire MF, Capitini CM, Cantor JR. Nat Metab. 2026 Jan 16. doi: 10.1038/s42255-025-01428-1. 10.1038/s42255-025-01428-1 PubMed 41545565
