pSMT3-lpqZ-HA
(Plasmid #240159)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 240159 Standard format: Plasmid sent in bacteria as agar stab 1 $89
Add to Cart

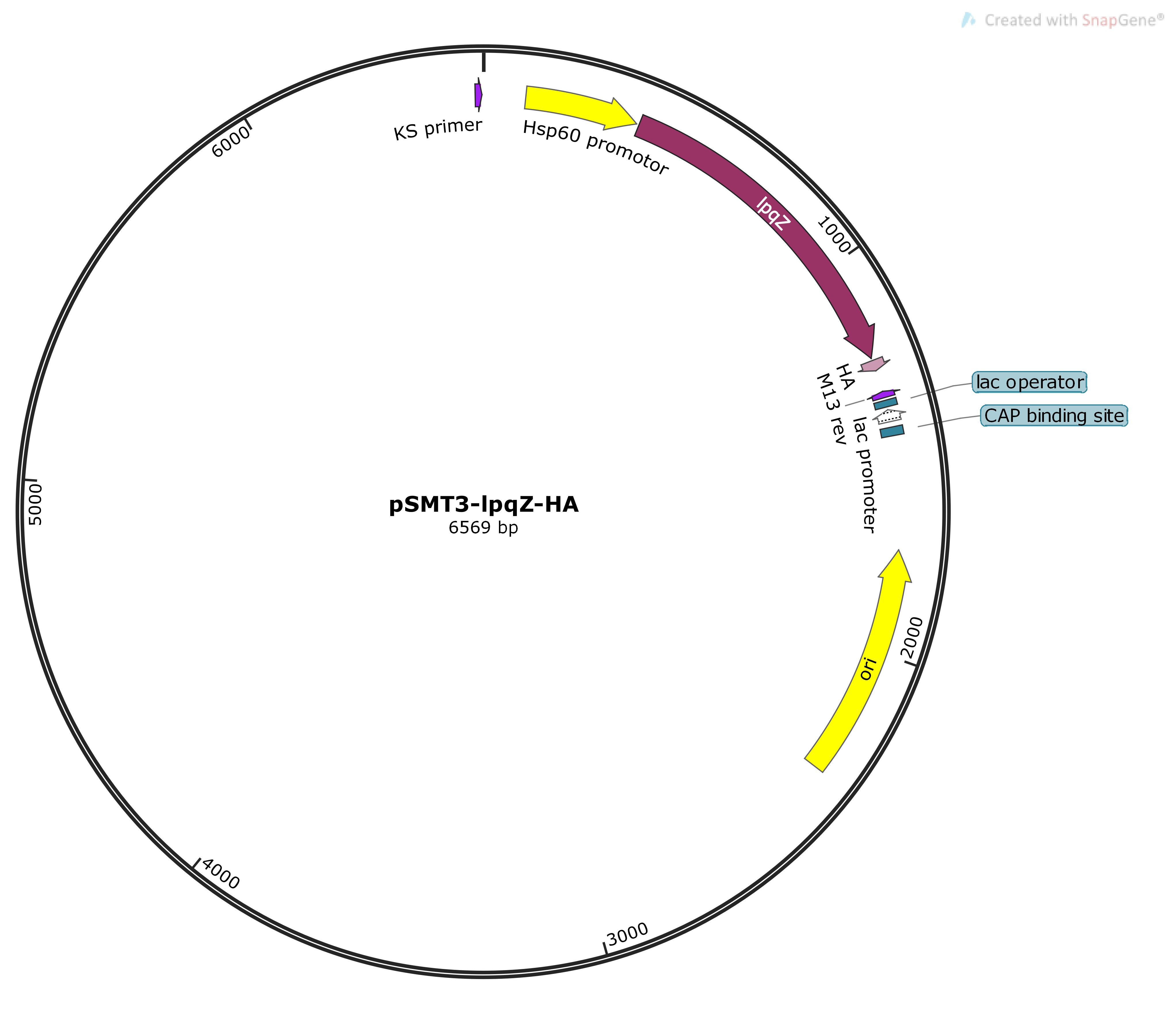

Backbone

  • Vector backbone
    pSMT3
  • Backbone size w/o insert (bp) 5720
  • Total vector size (bp) 6569
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Hygromycin, 200 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    lpqZ
  • Species
    Mycobacterium marinum
  • Insert Size (bp)
    849
  • Entrez Gene
    lpqZ (a.k.a. MMAR_4196)
  • Promoter HSP60
  • Tag / Fusion Protein
    • HA (C terminal on backbone)

Cloning Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSMT3-lpqZ-HA was a gift from Wilbert Bitter (Addgene plasmid # 240159 ; http://n2t.net/addgene:240159 ; RRID:Addgene_240159)

  • For your References section:

    A new role for lipoproteins LpqZ and FecB in orchestrating mycobacterial cell envelope biogenesis. Lissner R, Franklin A, Benedict ST, Charitou V, Speer A, Knol J, Jimenez C, Moynihan PJ, Nejentsev S, Kuijl C, Bitter W. mBio. 2025 Dec 12:e0211925. doi: 10.1128/mbio.02119-25. 10.1128/mbio.02119-25 PubMed 41384969
