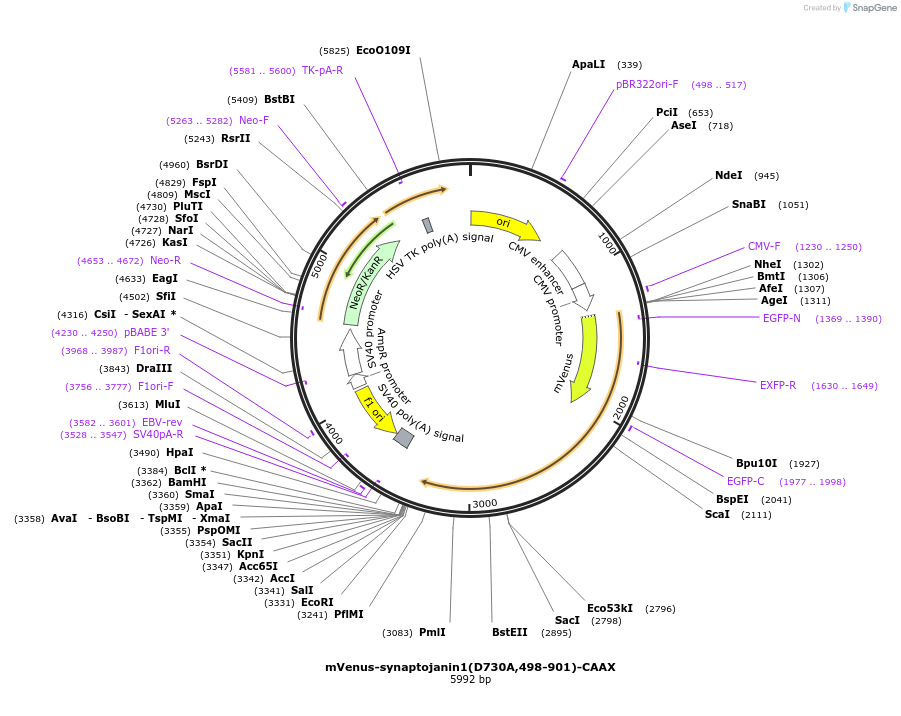

mVenus-synaptojanin1(D730A,498-901)-CAAX
(Plasmid #241304)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 241304 Standard format: Plasmid sent in bacteria as agar stab 1 $89
Add to Cart

Backbone

  • Vector backbone
    pEGFP-C1
  • Backbone manufacturer
    Clonetech
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Synaptojanin-1
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1272
  • Mutation
    498-901 aa, D730A
  • Entrez Gene
    SYNJ1 (a.k.a. DEE53, EIEE53, INPP5G, PARK20)
  • Promoter CMV
  • Tag / Fusion Protein
    • mVenus (N terminal on insert)

Cloning Information

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Addgene (#22293)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    mVenus-synaptojanin1(D730A,498-901)-CAAX was a gift from Justin Taraska (Addgene plasmid # 241304 ; http://n2t.net/addgene:241304 ; RRID:Addgene_241304)

  • For your References section:

    A PIP2-stabilized syntaxin-1a structure mapped with transition metal ion FRET and unnatural fluorescent amino acids at the plasma membrane. Obashi K, Strub MP, Taraska JW. Structure. 2025 Nov 24:S0969-2126(25)00388-0. doi: 10.1016/j.str.2025.10.001. 10.1016/j.str.2025.10.001 PubMed 41290003
