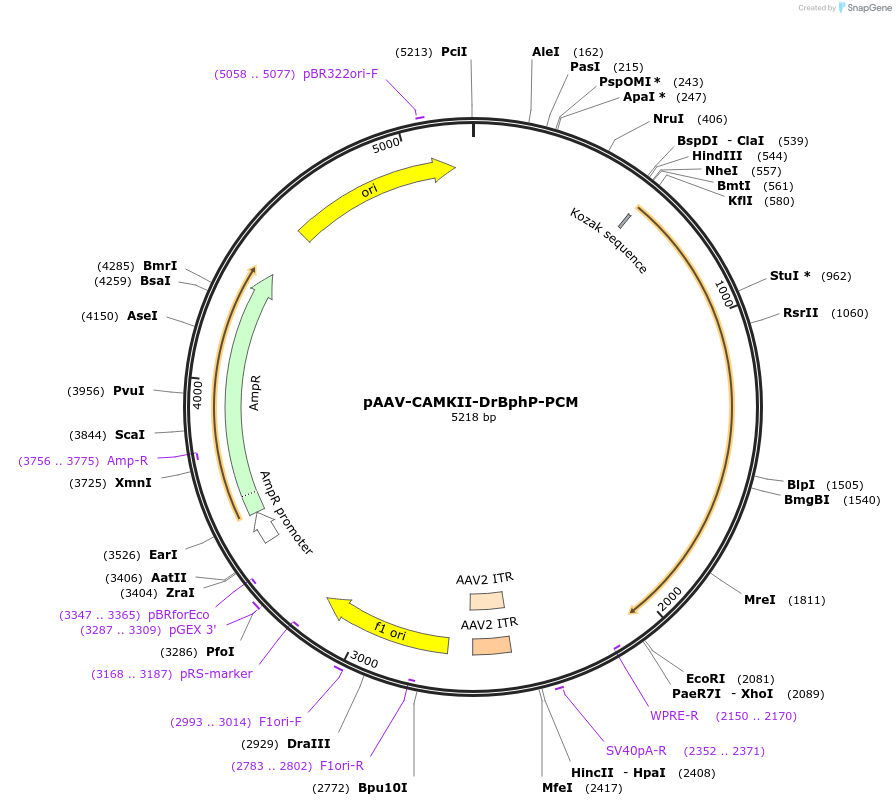

pAAV-CAMKII-DrBphP-PCM
(Plasmid #241775)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 241775 Standard format: Plasmid sent in bacteria as agar stab 1 $89
Add to Cart

Backbone

  • Vector backbone
    pAAV-CAMKII
  • Backbone size w/o insert (bp) 3755
  • Vector type
    AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    DrBphP-PCM
  • Species
    Deinococcus radiodurans
  • Insert Size (bp)
    1512
  • Promoter CAMKII

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NheI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer pBR322ori-F
  • 3′ sequencing primer WPRE-R
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Expression of DrBphP-PCM driven by the CAMKII promoter. From NCBI reference sequence NC_001264.1.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV-CAMKII-DrBphP-PCM was a gift from Vladislav Verkhusha (Addgene plasmid # 241775 ; http://n2t.net/addgene:241775 ; RRID:Addgene_241775)

  • For your References section:

    Deep-tissue high-sensitivity multimodal imaging and optogenetic manipulation enabled by biliverdin reductase knockout. Kasatkina LA, Ma C, Sheng H, Lowerison M, Menozzi L, Baloban M, Tang Y, Xu Y, Humayun L, Vu T, Song P, Yao J, Verkhusha VV. Nat Commun. 2025 Jul 14;16(1):6469. doi: 10.1038/s41467-025-61532-4. 10.1038/s41467-025-61532-4 PubMed 40659617
