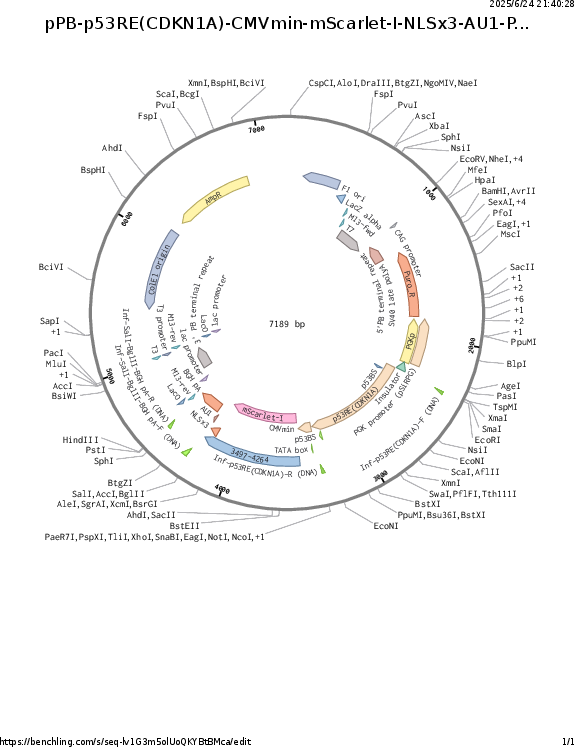

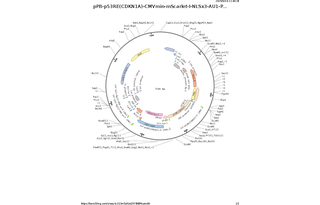

pPB-p53RE(CDKN1A)-CMVmin-mScarlet-I-NLSx3-AU1-PGKpuro
(Plasmid #241845)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 241845 Standard format: Plasmid sent in bacteria as agar stab 1 $89

Backbone

  • Vector backbone
    pPB
  • Backbone size w/o insert (bp) 6226
  • Total vector size (bp) 7389
  • Modifications to backbone
    The backbone contains Insulator-PGK promoter-pac gene-SV40 late polyA cassette for the selection marker.
  • Vector type
    Mammalian Expression
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    CDKN1A promoter
  • Species
    H. sapiens (human)
  • Mutation
    CDKN1A promoter (1015 bp) + CMV minimal promoter (125 bp)
  • Entrez Gene
    CDKN1A (a.k.a. CAP20, CDKN1, CIP1, MDA-6, P21, SDI1, WAF1, p21CIP1)
  • Promoter n/a
  • Tag / Fusion Protein
    • mScarlet-I-3xNLS (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site NotI (unknown if destroyed)
  • 5′ sequencing primer n/a
  • 3′ sequencing primer n/a
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pPB-p53RE(CDKN1A)-CMVmin-mScarlet-I-NLSx3-AU1-PGKpuro was a gift from Kazuhiro Aoki (Addgene plasmid # 241845 ; http://n2t.net/addgene:241845 ; RRID:Addgene_241845)
  • For your References section:

    Opto-p53: A Light-Controllable Activation of p53 Signaling Pathway. Tsuruoka T, Goto Y, Aoki K. Cell Struct Funct. 2025 Jun 12. doi: 10.1247/csf.25017. 10.1247/csf.25017 PubMed 40500178
