Depositing Lab
-
Depositing OrganizationStanford University
Located in United States of America -
Publication
-
Citations
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 24343 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 24343-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 24343-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepGL4.23
- Backbone size w/o insert (bp) 4283
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameLuciferase
-
Tag
/ Fusion Protein
- 5XGAL4 (N terminal on backbone)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ sequencing primer LucNRev
- (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byThe 5xUAS+Pmin fragment from pUAS-GG originates from pUAST (Brand and Perrimon, 1993).
-
Additional Resources
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Obtained by subcloning 5 copies of GAL4-binding UAS sequence and the hsp70
minimal promoter from pUAS-GG into pGL4.23 using HindIII and NcoI.
DNA (Catalog # 24343-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 24343-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pUAS-luc2 was a gift from Liqun Luo (Addgene plasmid # 24343 ; http://n2t.net/addgene:24343 ; RRID:Addgene_24343) -
For your References section:
The Q system: a repressible binary system for transgene expression, lineage tracing, and mosaic analysis. Potter CJ, Tasic B, Russler EV, Liang L, Luo L. Cell. 2010 Apr 30. 141(3):536-48. 10.1016/j.cell.2010.02.025 PubMed 20434990

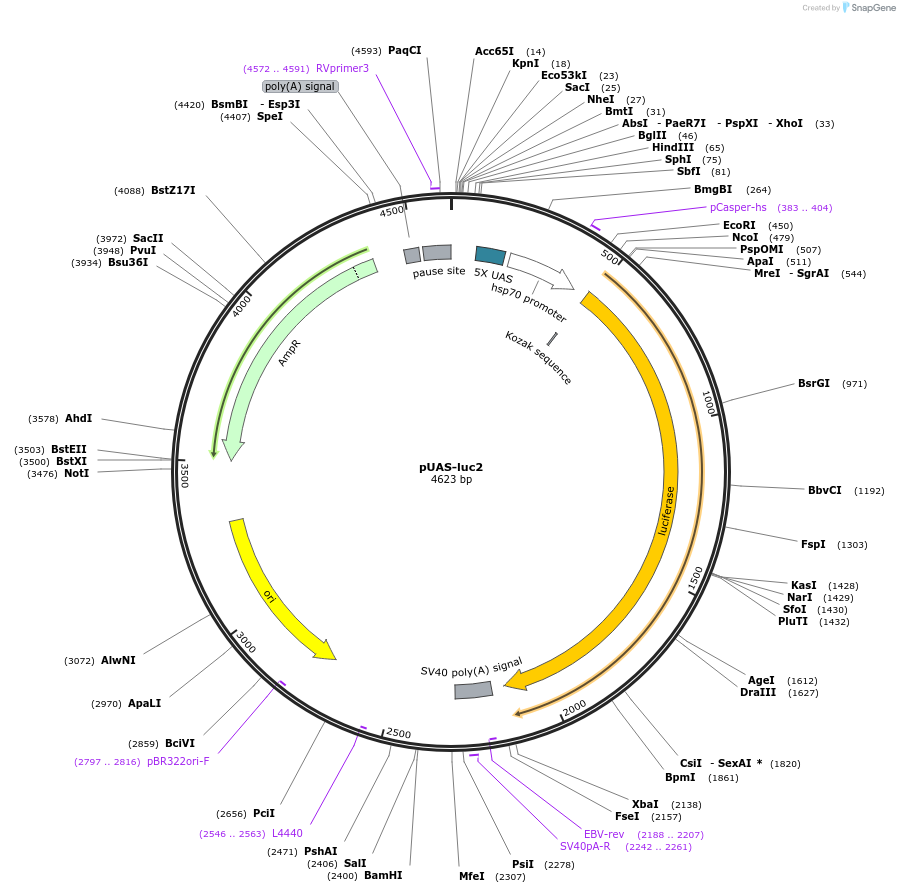

Map uploaded by the depositor.
