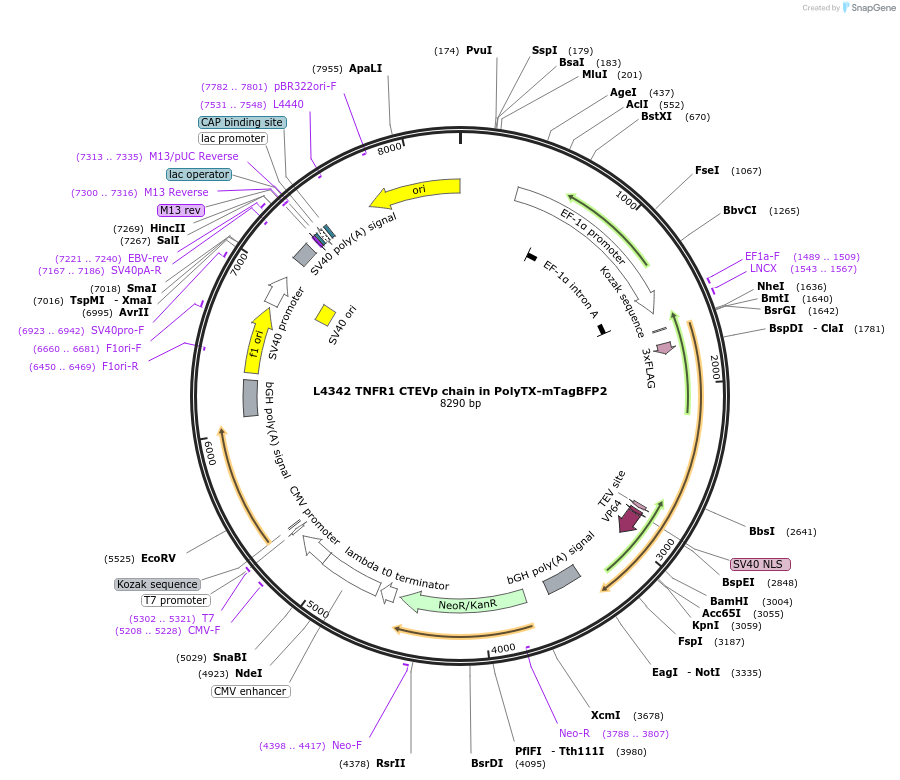

L4342 TNFR1 CTEVp chain in PolyTX-mTagBFP2
(Plasmid #244178)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 244178 Standard format: Plasmid sent in bacteria as agar stab 1 $89

Backbone

  • Vector backbone
    pPD1053 Polytransfect L1 mTagBFP2
  • Vector type
    Mammalian Expression, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    MESA CTEVp chain with human TNFR1 SS, ECD (no MMP site) and TMD, CTEVp (190K), TEVp PRS (M in P1'), and synTF (VP64-ZF6)
  • Species
    H. sapiens (human), Synthetic
  • Mutation
    CTEVp_190K
  • Entrez Gene
    TNFRSF1A (a.k.a. CD120a, FPF, TBP1, TNF-R, TNF-R-I, TNF-R55, TNFAR, TNFR1, TNFR55, TNFR60, p55, p55-R, p60)
  • Promoter hEF1a
  • Tag / Fusion Protein
    • TNFR1 signal peptide - 3xFLAG (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Unknown (unknown if destroyed)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please visit https://doi.org/10.1101/2024.03.23.586421 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    L4342 TNFR1 CTEVp chain in PolyTX-mTagBFP2 was a gift from Joshua Leonard (Addgene plasmid # 244178 ; http://n2t.net/addgene:244178 ; RRID:Addgene_244178)
  • For your References section:

    Conversion of natural cytokine receptors into orthogonal synthetic biosensors. Edelstein HI, Cosio A, Ezekiel ML, Corcoran WK, Morris AH, Leonard JN. Nat Chem Biol. 2025 Aug 22:10.1038/s41589-025-01986-1. doi: 10.1038/s41589-025-01986-1. 10.1038/s41589-025-01986-1 PubMed 40846994
