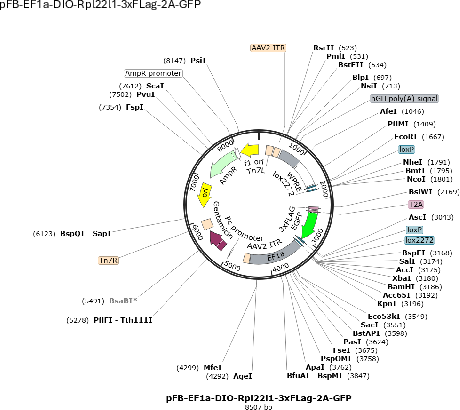

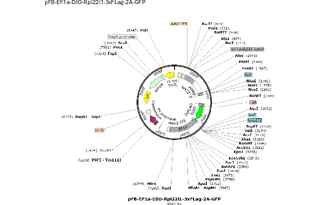

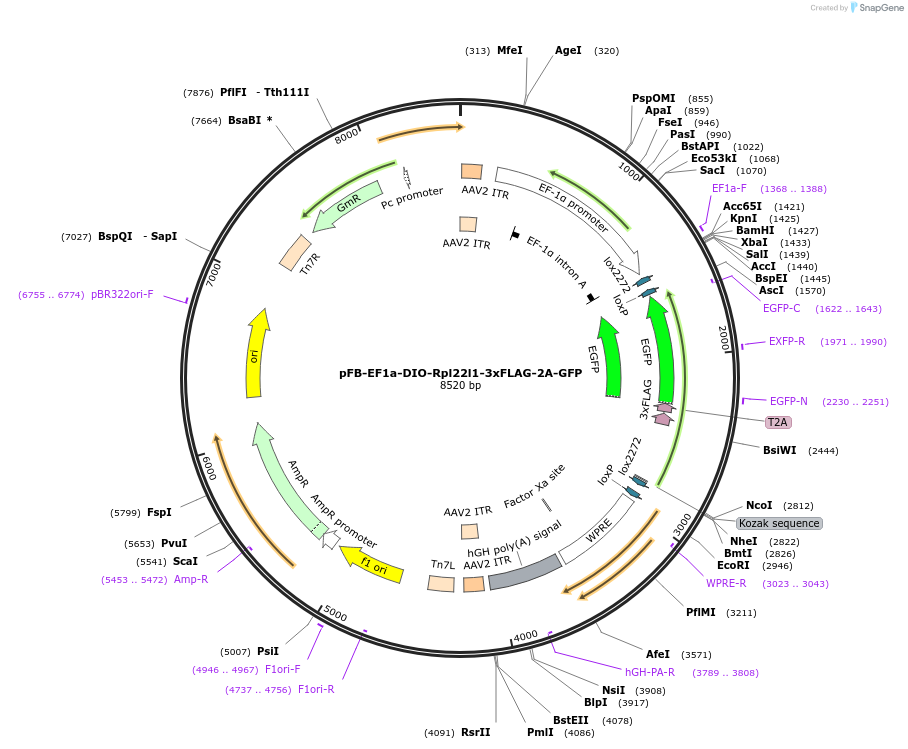

pFB-EF1a-DIO-Rpl22l1-3xFLAG-2A-GFP
(Plasmid #245377)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 245377 Standard format: Plasmid sent in bacteria as agar stab 1 $89
Add to Cart

Backbone

  • Vector backbone
    pFB
  • Backbone manufacturer
    Virovek
  • Backbone size w/o insert (bp) 4544
  • Total vector size (bp) 8507
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Rpl22l1
  • Alt name
    Ribosomal protein L22-like1
  • Species
    M. musculus (mouse)
  • Insert Size (bp)
    3963
  • GenBank ID
    NM_001347226.3
  • Entrez Gene
    Rpl22l1 (a.k.a. 3110001N18Rik)
  • Promoter EF1a
  • Tag / Fusion Protein
    • 3xFLAG, T2A-GFP (C terminal on insert)

Cloning Information

  • Cloning method Unknown
  • 5′ sequencing primer TCAAGCCTCAGACAGTGGTTC
  • 3′ sequencing primer CCAGCTTGGTTCCCAATAGA
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pFB-EF1a-DIO-Rpl22l1-3xFLAG-2A-GFP was a gift from D. James Surmeier (Addgene plasmid # 245377 ; http://n2t.net/addgene:245377 ; RRID:Addgene_245377)

  • For your References section:

    alpha-Synuclein pathology disrupts mitochondrial function in dopaminergic and cholinergic neurons at-risk in Parkinson's disease. Geibl FF, Henrich MT, Xie Z, Zampese E, Ueda J, Tkatch T, Wokosin DL, Nasiri E, Grotmann CA, Dawson VL, Dawson TM, Chandel NS, Oertel WH, Surmeier DJ. Mol Neurodegener. 2024 Oct 8;19(1):69. doi: 10.1186/s13024-024-00756-2. 10.1186/s13024-024-00756-2 PubMed 39379975
