pMAPLe4 PCMTD1 PCMTD1(∆ESB-ASB9)
(Plasmid
#246507)
-
PurposeRecombinant protein expression of PCMTD1(∆ESB-ASB9)
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 246507 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $89 |

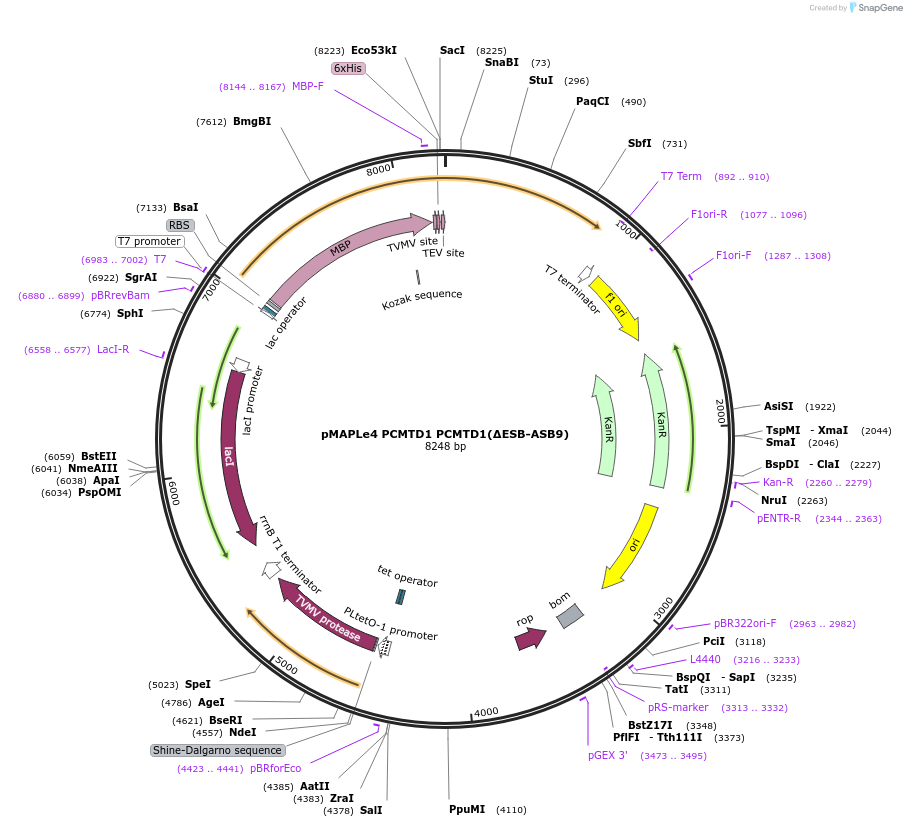

Backbone
-
Vector backbonepMAPLe4
- Total vector size (bp) 8248
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Growth instructionsUse BL21(DE3) for expression
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameProtein-L-isoaspartate O-methyltransferase domain-containing protein 1
-
Alt namePCMTD1
-
SpeciesH. sapiens (human)
-
Insert Size (bp)2028
-
MutationDeleted amino acids 266-340 in PCMTD1 and replaced with amino acids RKCFGIQQHHKITK
-
Entrez GenePCMTD1
-
Tag
/ Fusion Protein
- His-tag (N terminal on insert)
Resource Information
-
Supplemental Documents
-
A portion of this plasmid was derived from a plasmid made byProduced for us in this study by Twist Bioscience using our order specifications
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Induce with 0.5 mM IPTG at OD600 = 0.5 - 0.7 and express for 3 hours at 37°C after induction.
Please visit https://doi.org/10.1101/2025.05.21.654933 for bioRxiv preprint.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pMAPLe4 PCMTD1 PCMTD1(∆ESB-ASB9) was a gift from Steven Clarke (Addgene plasmid # 246507 ; http://n2t.net/addgene:246507 ; RRID:Addgene_246507) -
For your References section:
Structural basis for L-isoaspartyl-containing protein recognition by the PCMTD1 cullin-RING E3 ubiquitin ligase. Pang EZ, Zhao B, Flowers C, Oroudjeva E, Winter JB, Pandey V, Sawaya MR, Wohlschlegel J, Loo JA, Rodriguez JA, Clarke SG. bioRxiv [Preprint]. 2025 May 21:2025.05.21.654933. doi: 10.1101/2025.05.21.654933. 10.1101/2025.05.21.654933 PubMed 40475564
