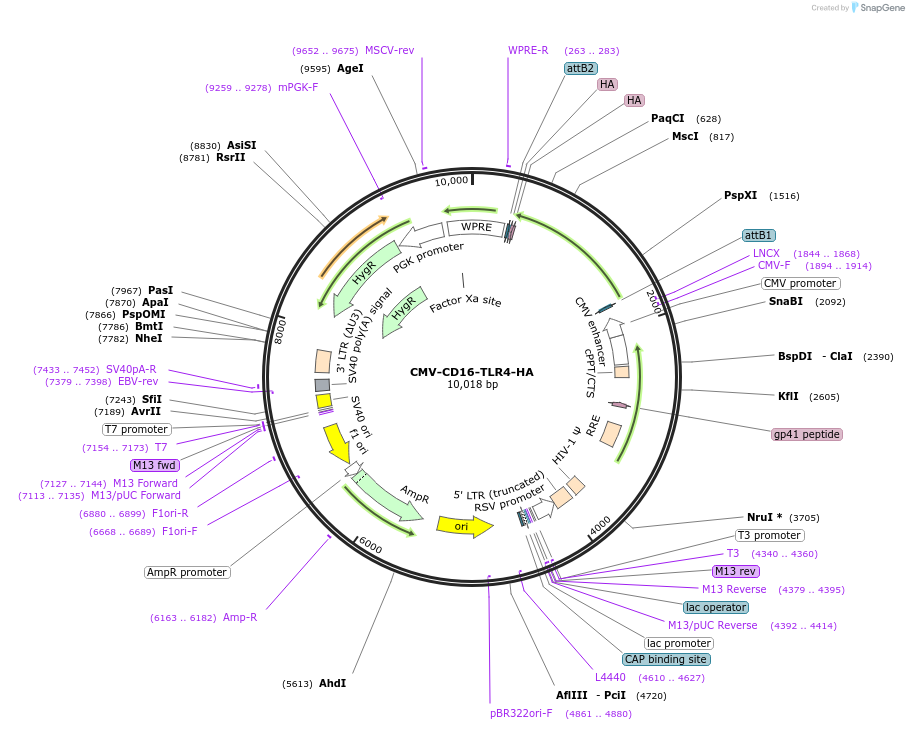

CMV-CD16-TLR4-HA
(Plasmid #246906)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 246906 Standard format: Plasmid sent in bacteria as agar stab 1 $89
Add to Cart

Backbone

  • Vector backbone
    lentiviral expression plasmid
  • Vector type
    Mammalian Expression, Lentiviral
  • Selectable markers
    Hygromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    CD16-TLR4
  • Alt name
    Chimera of the CD16 (FCGR3B) extracellular domain fused to the transmembrane and intracellular domains of TLR4
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1200
  • Mutation
    N terminus of CD16, C terminus of TLR4
  • Entrez Gene
    TLR4 (a.k.a. ARMD10, CD284, TLR-4, TOLL)
  • Entrez Gene
    FCGR3B (a.k.a. CD16, CD16-I, CD16A, CD16b, FCG3, FCGR3, FCGR3A, FCR-10, FCRIII, FCRIIIb)
  • Promoter CMV
  • Tag / Fusion Protein
    • HA (C terminal on insert)

Cloning Information

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    CMV-CD16-TLR4-HA was a gift from William Kaelin (Addgene plasmid # 246906 ; http://n2t.net/addgene:246906 ; RRID:Addgene_246906)

  • For your References section:

    Positive selection CRISPR screens reveal a druggable pocket in an oligosaccharyltransferase required for inflammatory signaling to NF-kappaB. Lampson BL, Ramiotarez AS, Baro M, He L, Hegde M, Koduri V, Pfaff JL, Hanna RE, Kowal J, Shirole NH, He Y, Doench JG, Contessa JN, Locher KP, Kaelin WG Jr. Cell. 2024 Apr 25;187(9):2209-2223.e16. doi: 10.1016/j.cell.2024.03.022. 10.1016/j.cell.2024.03.022 PubMed 38670073
