pNP3386 [For use in genome insertion and off-target assessment]
(Plasmid
#247258)
-
PurposeExample plasmid for bridge recombinase mediated insertion and off-target assessment with puromycin selection — must clone in UMI
-
Depositing Lab
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 247258 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $89 | |
Backbone
-
Vector backboneN/A
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-

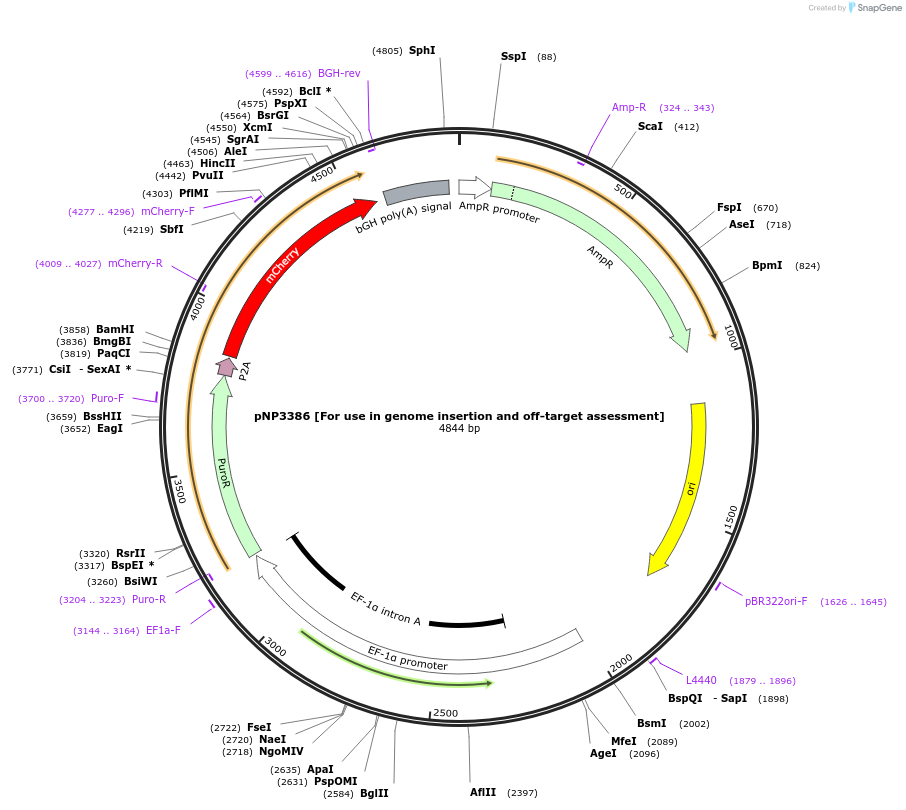

Gene/Insert nameISCro4 Recognition Site-UMI-Ef1a-PuroR-P2A-mCherry (Plasmid for Insertion Site Mapping [Example, Clone in Sequence + UMI])
-
SpeciesSynthetic
Cloning Information
- Cloning method Gibson Cloning
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://doi.org/10.1101/2025.05.14.653916 for bioRxiv preprint.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pNP3386 [For use in genome insertion and off-target assessment] was a gift from Patrick Hsu (Addgene plasmid # 247258 ; http://n2t.net/addgene:247258 ; RRID:Addgene_247258) -
For your References section:
Megabase-scale human genome rearrangement with programmable bridge recombinases. Perry NT, Bartie LJ, Katrekar D, Gonzalez GA, Durrant MG, Pai JJ, Fanton A, Martins JQ, Hiraizumi M, Ricci-Tam C, Nishimasu H, Konermann S, Hsu PD. Science. 2025 Sep 25:eadz0276. doi: 10.1126/science.adz0276. 10.1126/science.adz0276 PubMed 40997214
