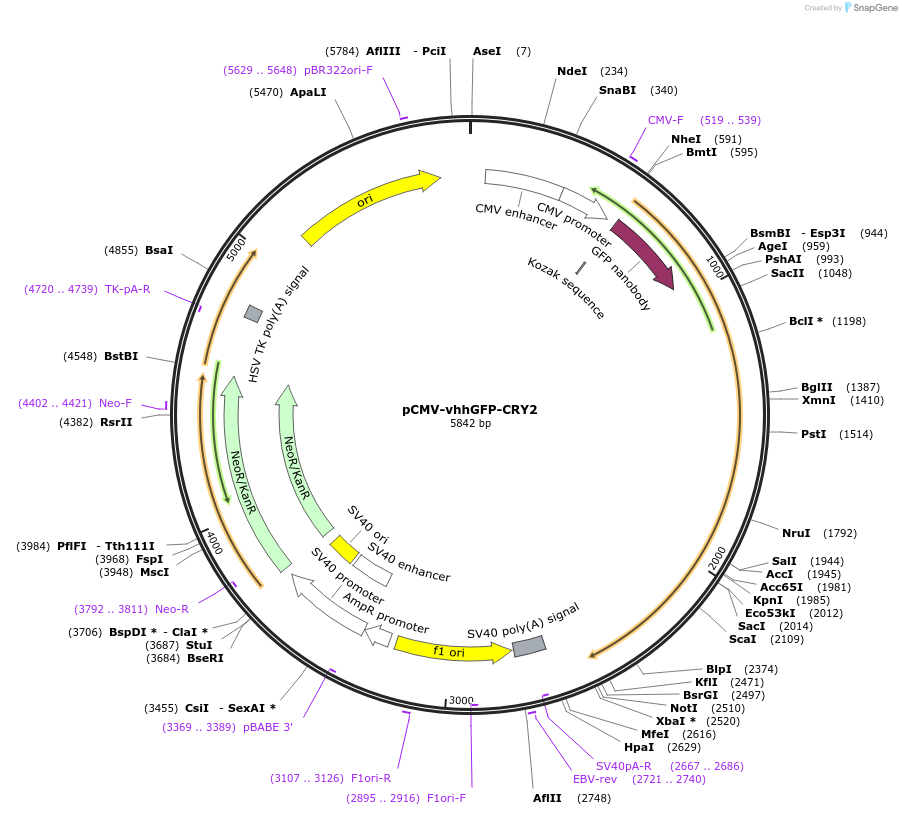

pCMV-vhhGFP-CRY2
(Plasmid #248298)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 248298 Standard format: Plasmid sent in bacteria as agar stab 1 $89
Add to Cart

Backbone

  • Vector backbone
    pCMV
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 3937
  • Total vector size (bp) 5842
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    GFP nanobody (vhhGFP) fused to CRY2
  • Alt name
    CRY2
  • Entrez Gene
    CRY2 (a.k.a. HCRY2, PHLL2)
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Nhe1 (not destroyed)
  • 3′ cloning site Age1 (not destroyed)
  • 5′ sequencing primer CMV-F
  • 3′ sequencing primer SV40-pAR
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Depositor Comments

vhhGFP
MVQLVESGGALVQPGGSLRLSCAASGFPVNRYSMRWYRQAPGKEREWVAGMSSAGDRSSYEDSVKGRFTISRDDARNTVYLQMNSLKPEDTAVYYCNVNVGFEYWGQGTQVTVSS

CRY2(E281A) MKMDKKTIVWFRRDLRIEDNPALAAAAHEGSVFPVFIWCPEEEGQFYPGRASRWWMKQSLAHLSQSLKALGSDLTLIKTHNTISAILDCIRVTGATKVVFNHLYDPVSLVRDHTVKEKLVERGISVQSYNGDLLYEPWEIYCEKGKPFTSFNSYWKKCLDMSIESVMLPPPWRLMPITAAAEAIWACSIEELGLENEAEKPSNALLTRAWSPGWSNADKLLNEFIEKQLIDYAKNSKKVVGNSTSLLSPYLHFGEISVRHVFQCARMKQIIWARDKNSEGAESADLFLRGIGLREYSRYICFNFPFTHEQSLLSHLRFFPWDADVDKFKAWRQGRTGYPLVDAGMRELWATGWMHNRIRVIVSSFAVKFLLLPWKWGMKYFWDTLLDADLECDILGWQYISGSIPDGHELDRLDNPALQGAKYDPEGEYIRQWLPELARLPTEWIHHPWDAPLTVLKASGVELGTNYAKPIVDIDTARELLAKAISRTREAQIMIGAA

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCMV-vhhGFP-CRY2 was a gift from Sangkyu Lee (Addgene plasmid # 248298 ; http://n2t.net/addgene:248298 ; RRID:Addgene_248298)

  • For your References section:

    AAV-compatible optogenetic tools for activating endogenous calcium channels in vivo. Kook YH, Lee H, Lee J, Jeong Y, Rho J, Heo WD, Lee S. Mol Brain. 2023 Oct 17;16(1):73. doi: 10.1186/s13041-023-01061-7. 10.1186/s13041-023-01061-7 PubMed 37848907
