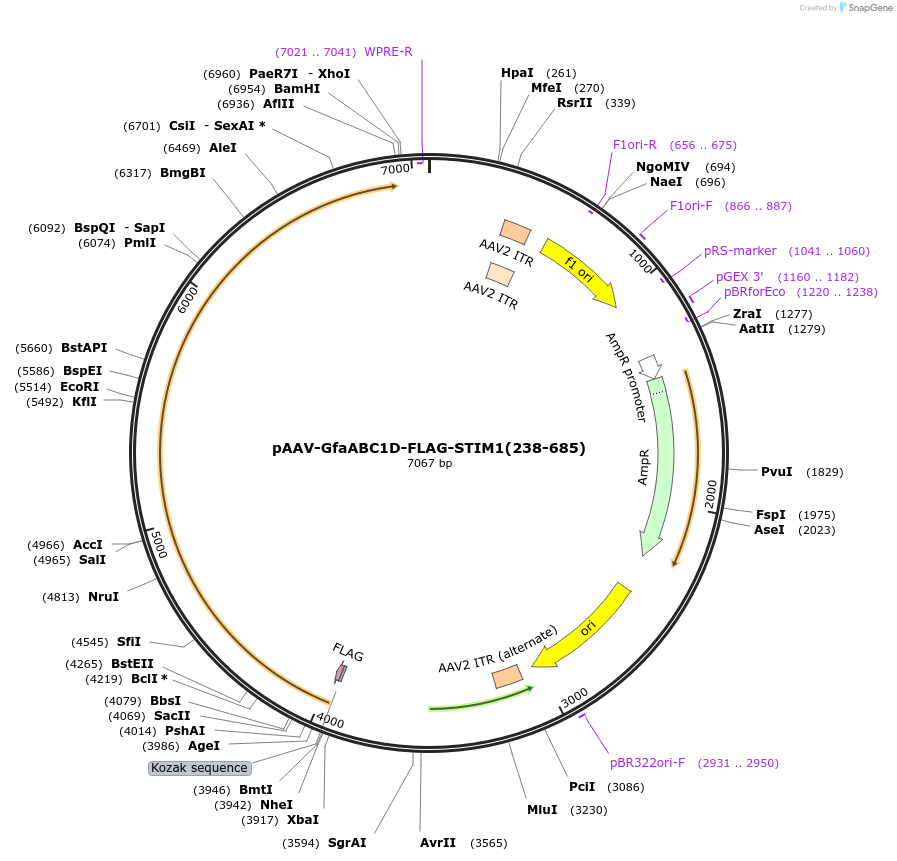

pAAV-GfaABC1D-FLAG-STIM1(238-685)
(Plasmid #248301)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 248301 Standard format: Plasmid sent in bacteria as agar stab 1 $89
Add to Cart

Backbone

  • Vector backbone
    pAAV
  • Backbone size w/o insert (bp) 2879
  • Total vector size (bp) 7084
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    CRY2-fused FLAG-tagged STIM1 fragment (a.a.238-685)
  • Alt name
    STIM1
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    2997
  • Mutation
    deleted amino acids 1-237
  • Entrez Gene
    STIM1 (a.k.a. D11S4896E, GOK, IMD10, STRMK, TAM, TAM1)
  • Promoter GfaABC1D
  • Tag / Fusion Protein
    • FLAG (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Nhe1 (not destroyed)
  • 3′ cloning site BamH1 (not destroyed)
  • 5′ sequencing primer GfaABC1D-F
  • 3′ sequencing primer W3SL-R
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Depositor Comments

CRY2(E281A) MKMDKKTIVWFRRDLRIEDNPALAAAAHEGSVFPVFIWCPEEEGQFYPGRASRWWMKQSLAHLSQSLKALGSDLTLIKTHNTISAILDCIRVTGATKVVFNHLYDPVSLVRDHTVKEKLVERGISVQSYNGDLLYEPWEIYCEKGKPFTSFNSYWKKCLDMSIESVMLPPPWRLMPITAAAEAIWACSIEELGLENEAEKPSNALLTRAWSPGWSNADKLLNEFIEKQLIDYAKNSKKVVGNSTSLLSPYLHFGEISVRHVFQCARMKQIIWARDKNSEGAESADLFLRGIGLREYSRYICFNFPFTHEQSLLSHLRFFPWDADVDKFKAWRQGRTGYPLVDAGMRELWATGWMHNRIRVIVSSFAVKFLLLPWKWGMKYFWDTLLDADLECDILGWQYISGSIPDGHELDRLDNPALQGAKYDPEGEYIRQWLPELARLPTEWIHHPWDAPLTVLKASGVELGTNYAKPIVDIDTARELLAKAISRTREAQIMIGAA

STIM1(238-685)
KEHMKKMMKDLEGLHRAEQSLHDLQERLHKAQEEHRTVEVEKVHLEKKLRDEINLAKQEAQRLKELREGTENERSRQKYAEEELEQVREALRKAEKELESHSSWYAPEALQKWLQLTHEVEVQYYNIKKQNAEKQLLVAKEGAEKIKKKRNTLFGTFHVAHSSSLDDVDHKILTAKQALSEVTAALRERLHRWQQIEILCGFQIVNNPGIHSLVAALNIDPSWMGSTRPNPAHFIMTDDVDDMDEEIVSPLSMQSPSLQSSVRQRLTEPQHGLGSQRDLTHSDSESSLHMSDRQRVAPKPPQMSRAADEALNAMTSNGSHRLIEGVHPGSLVEKLPDSPALAKKALLALNHGLDKAHSLMELSPSAPPGGSPHLDSSRSHSPSSPDPDTPSPVGDSRALQASRNTRIPHLAGKKAVAEEDNGSIGEETDSSPGRKKFPLKIFKKPLKK

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV-GfaABC1D-FLAG-STIM1(238-685) was a gift from Sangkyu Lee (Addgene plasmid # 248301 ; http://n2t.net/addgene:248301 ; RRID:Addgene_248301)

  • For your References section:

    AAV-compatible optogenetic tools for activating endogenous calcium channels in vivo. Kook YH, Lee H, Lee J, Jeong Y, Rho J, Heo WD, Lee S. Mol Brain. 2023 Oct 17;16(1):73. doi: 10.1186/s13041-023-01061-7. 10.1186/s13041-023-01061-7 PubMed 37848907
