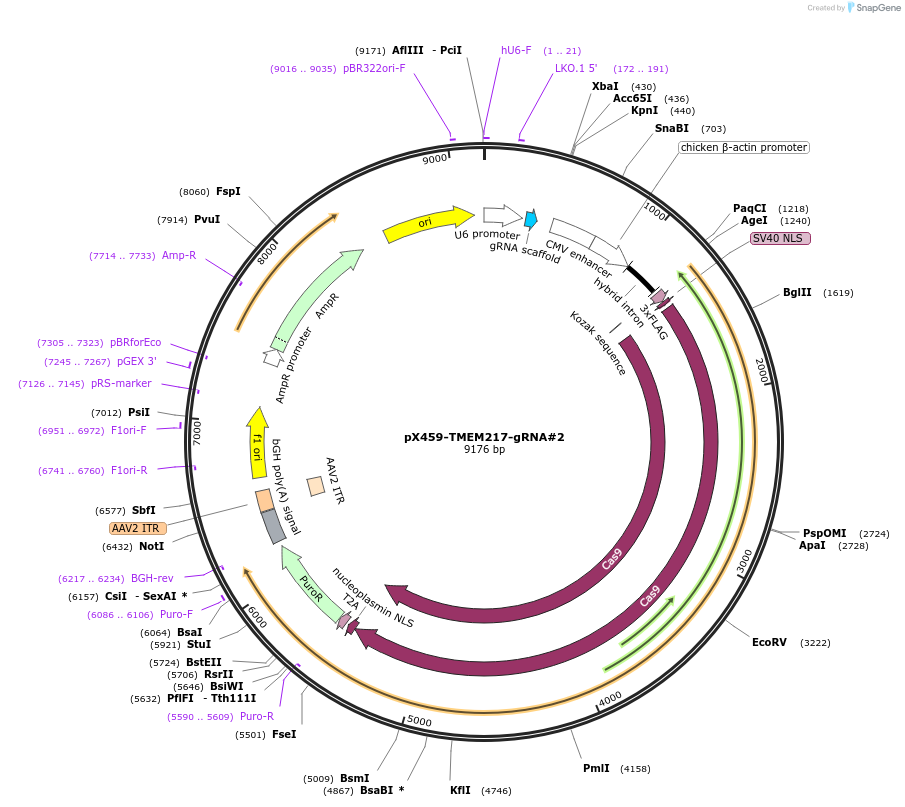

pX459-TMEM217-gRNA#2
(Plasmid #249418)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 249418 Standard format: Plasmid sent in bacteria as agar stab 1 $89
Add to Cart

Backbone

  • Vector backbone
    px459
  • Vector type
    CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    TMEM217
  • gRNA/shRNA sequence
    CAAGAGACGAATTTCTACAG
  • Species
    H. sapiens (human)
  • Entrez Gene
    TMEM217 (a.k.a. C6orf128, dJ355M6.2)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BbsI (destroyed during cloning)
  • 3′ cloning site BbsI (destroyed during cloning)
  • 5′ sequencing primer tggactatcatatgcttacc
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pX459-TMEM217-gRNA#2 was a gift from Masahito Ikawa (Addgene plasmid # 249418 ; http://n2t.net/addgene:249418 ; RRID:Addgene_249418)

  • For your References section:

    Formation of a complex between TMEM217 and the sodium-proton exchanger SLC9C1 is crucial for mouse sperm motility and male fertility. Iida-Norita R, Miyata H, Ninomiya A, Emori C, Kamoshita M, Pan C, Wang H, Ikawa M. Proc Natl Acad Sci U S A. 2025 Oct 21;122(42):e2513924122. doi: 10.1073/pnas.2513924122. Epub 2025 Oct 15. 10.1073/pnas.2513924122 PubMed 41091759
