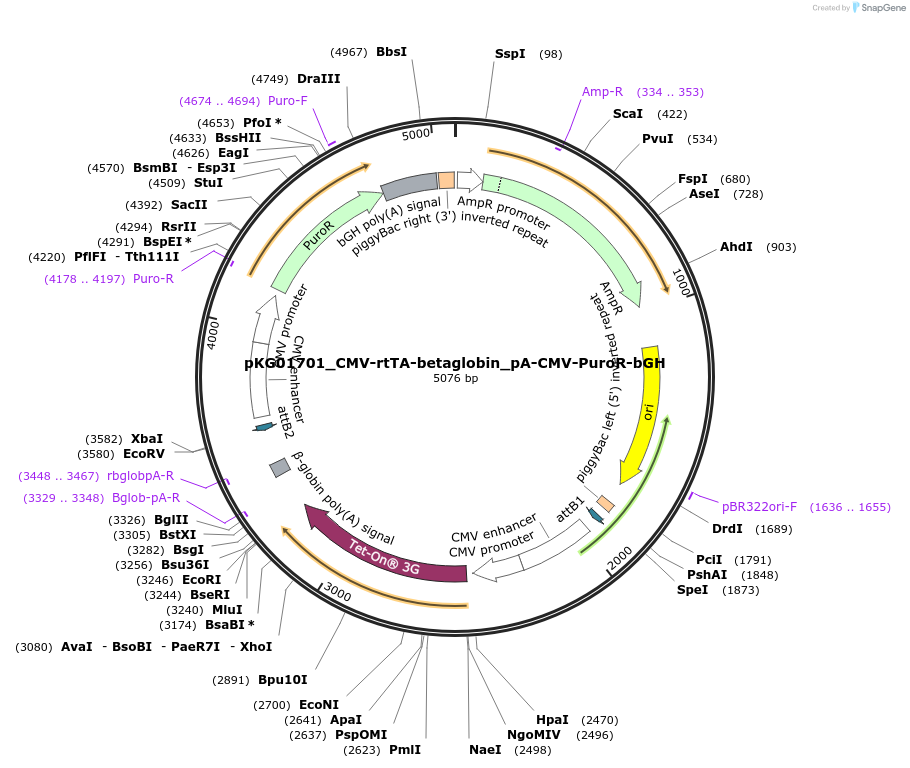

pKG01701_CMV-rtTA-betaglobin_pA-CMV-PuroR-bGH
(Plasmid #252540)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 252540 Standard format: Plasmid sent in bacteria as agar stab 1 $89
Add to Cart

Backbone

  • Vector backbone
    PiggBac (truncated ITRs)
  • Backbone manufacturer
    Katie Galloway lab
  • Backbone size w/o insert (bp) 1917
  • Vector type
    Mammalian Expression
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    rtTA
  • Alt name
    Tet-On 3G
  • Species
    Escherichia coli, Streptomyces alboniger
  • Insert Size (bp)
    2197
  • Promoter CMV (human cytomegalovirus immediate early enhancer and promoter)

Cloning Information

  • Cloning method Golden Gate

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Addgene #105840

Terms and Licenses

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Also expresses puromycin resistance gene (pac/PuroR). Please visit https://doi.org/10.1101/2025.01.19.633652 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pKG01701_CMV-rtTA-betaglobin_pA-CMV-PuroR-bGH was a gift from Kate Galloway (Addgene plasmid # 252540 ; http://n2t.net/addgene:252540 ; RRID:Addgene_252540)

  • For your References section:

    Gene syntax defines supercoiling-mediated transcriptional feedback. Johnstone CP, Love KS, Kabaria SR, Jones R, Blanch-Asensio A, Ploessl DS, Peterman EL, Lee R, Yun J, Oakes CG, Mummery CL, Davis RP, DeKosky BJ, Zandstra PW, Galloway KE. bioRxiv [Preprint]. 2025 Jan 19:2025.01.19.633652. doi: 10.1101/2025.01.19.633652. 10.1101/2025.01.19.633652 PubMed 39868195
