TOMO70_NTD_Delta6_GFP
(Plasmid #253341)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 253341 Standard format: Plasmid sent in bacteria as agar stab 1 $89
Add to Cart

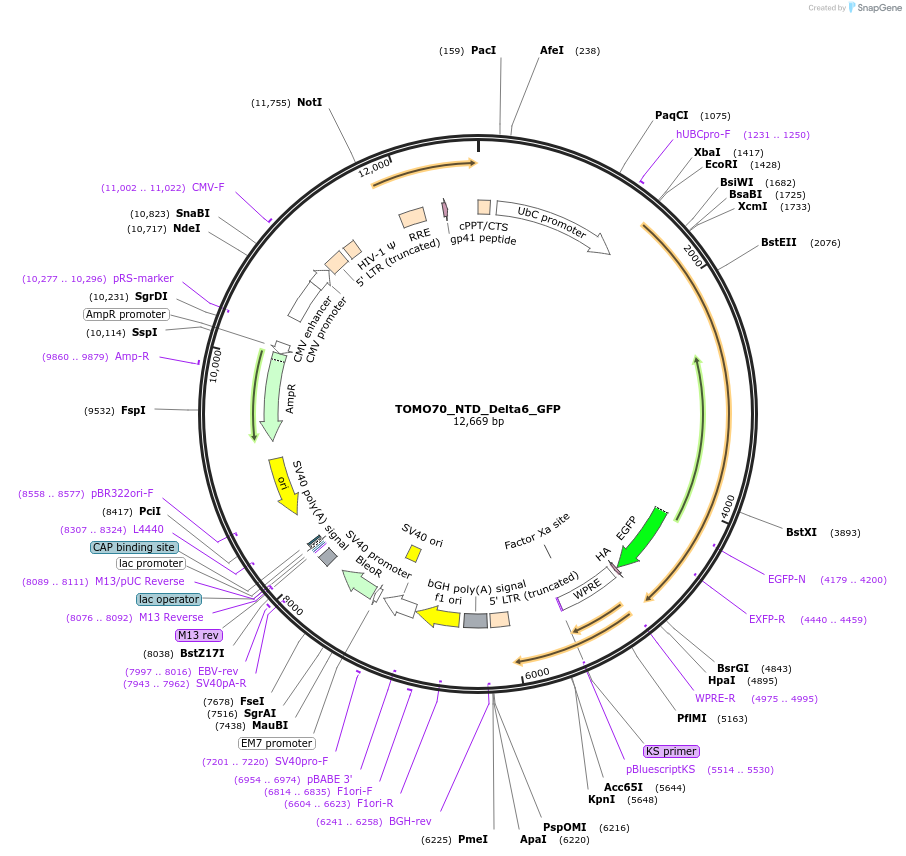

Backbone

  • Vector backbone
    pFUGW
  • Backbone size w/o insert (bp) 9216
  • Total vector size (bp) 12669
  • Vector type
    Mammalian Expression, Lentiviral

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    TOMO70-NTD-Delta6-GFP
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    3450
  • Entrez Gene
    TOMM70 (a.k.a. TOMM70A, Tom70)
  • Promoter UBC
  • Tag / Fusion Protein
    • GFP (C terminal on insert)

Cloning Information

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please visit https://doi.org/10.64898/2026.01.16.700029 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    TOMO70_NTD_Delta6_GFP was a gift from Qiangjun Zhou (Addgene plasmid # 253341 ; http://n2t.net/addgene:253341 ; RRID:Addgene_253341)

  • For your References section:

    Fully genetically encoded low-molecular-weight protein tags with defined shapes for direct molecular identification by cryo-electron tomography. Luo F, Sun R, Chalkley O, Li P, Zhou Q. bioRxiv [Preprint]. 2026 Jan 20:2026.01.16.700029. doi: 10.64898/2026.01.16.700029. 10.64898/2026.01.16.700029 PubMed 41648103
