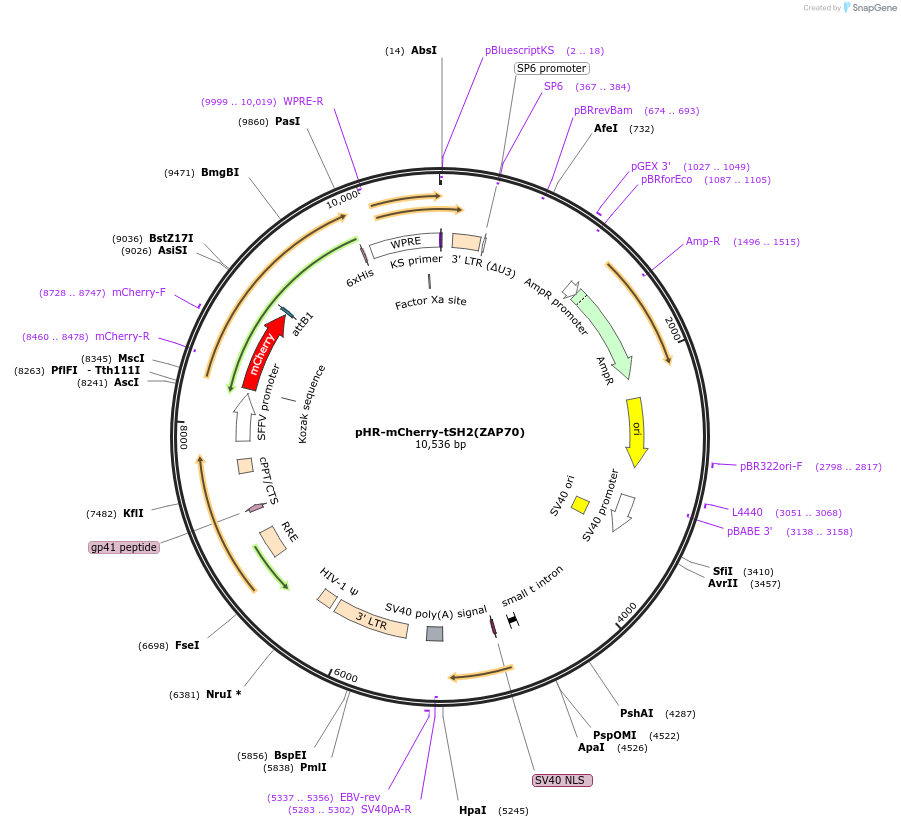

pHR-mCherry-tSH2(ZAP70)
(Plasmid #27137)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 27137 Standard format: Plasmid sent in bacteria as agar stab 1 $65

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pHR'
  • Backbone size w/o insert (bp) 9000
  • Vector type
    Mammalian Expression, Lentiviral

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    Stbl3
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    mCherry and ZAP70 (residues 1-259)
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1572
  • Tag / Fusion Protein
    • mCherry (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ sequencing primer GCTTCCCGAGCTCTATAAAAGAGC
  • 3′ sequencing primer CCAGAGGTTGATTATCGATAAGC
  • (Common Sequencing Primers)

Resource Information

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pHR-mCherry-tSH2(ZAP70) was a gift from Ron Vale (Addgene plasmid # 27137)
  • For your References section:

    Imaging T-cell receptor activation reveals accumulation of tyrosine-phosphorylated CD3{zeta} in the endosomal compartment. Yudushkin IA, Vale RD.. Proc Natl Acad Sci U S A. 2010 Dec 21;107(51):22128-33. 10.1073/pnas.1016388108 PubMed 21135224
