(Plasmid #89344)


Item Catalog # Description Quantity Price (USD)
Plasmid 89344 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.


  • Vector backbone
  • Backbone size w/o insert (bp) 8311
  • Total vector size (bp) 10767
  • Vector type
    Mammalian Expression, Lentiviral

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
  • Growth Strain(s)
    NEB Stable
  • Copy number


  • Gene/Insert name
  • Alt name
    Signal-Peptide-SNAPf tag- TM-CD3zeta chains fused in frame to mGFP
  • Species
    H. sapiens (human)
  • Insert Size (bp)
  • Entrez Gene
    CD247 (a.k.a. CD3-ZETA, CD3H, CD3Q, CD3Z, CD3ZETA, IMD25, T3Z, TCRZ)
  • Entrez Gene
    CD86 (a.k.a. B7-2, B7.2, B70, CD28LG2, LAB72)
  • Tags / Fusion Proteins
    • SNAPf tag (N terminal on insert)
    • mEGFP (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Mlu1 (not destroyed)
  • 3′ cloning site BamH1 (not destroyed)
  • 5′ sequencing primer SFFV for (GCTTCCCGAGCTCTATAAAAGAGC)
  • 3′ sequencing primer GFP rev, WPRE rev (CCAGAGGTTGATTATCGATAAGC)
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

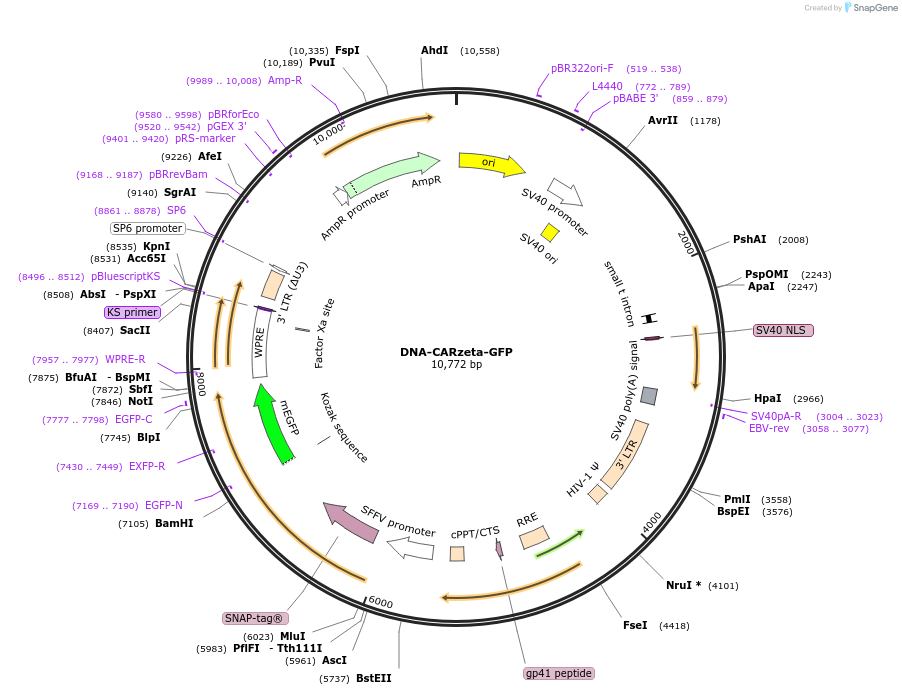

    DNA-CARzeta-GFP was a gift from Ron Vale (Addgene plasmid # 89344 ; ; RRID:Addgene_89344)
  • For your References section:

    A DNA-Based T Cell Receptor Reveals a Role for Receptor Clustering in Ligand Discrimination. Taylor MJ, Husain K, Gartner ZJ, Mayor S, Vale RD. Cell. 2017 Mar 23;169(1):108-119.e20. doi: 10.1016/j.cell.2017.03.006. 10.1016/j.cell.2017.03.006 PubMed 28340336
