|Item||Catalog #||Description||Quantity||Price (USD)|
|Plasmid||31333||Standard format: Plasmid sent in bacteria as agar stab||1||$75|
This material is available to academics and nonprofits only.
- Backbone size w/o insert (bp) 4700
Vector typeBacterial Expression
Growth in Bacteria
Gene/Insert nameproteasome (prosome, macropain) 26S subunit, non-ATPase, 11
SpeciesH. sapiens (human)
Insert Size (bp)1341
Entrez GenePSMD11 (a.k.a. Rpn6, S9, p44.5)
/ Fusion Proteins
- His (N terminal on backbone)
- TEV (N terminal on backbone)
- Cloning method Restriction Enzyme
- 5′ cloning site BamHI (not destroyed)
- 3′ cloning site NotI (not destroyed)
- 5′ sequencing primer TGAGCGGATAACAATTTCACACAG
- 3′ sequencing primer GGCAACCGAGCGTTCTGAAC (Common Sequencing Primers)

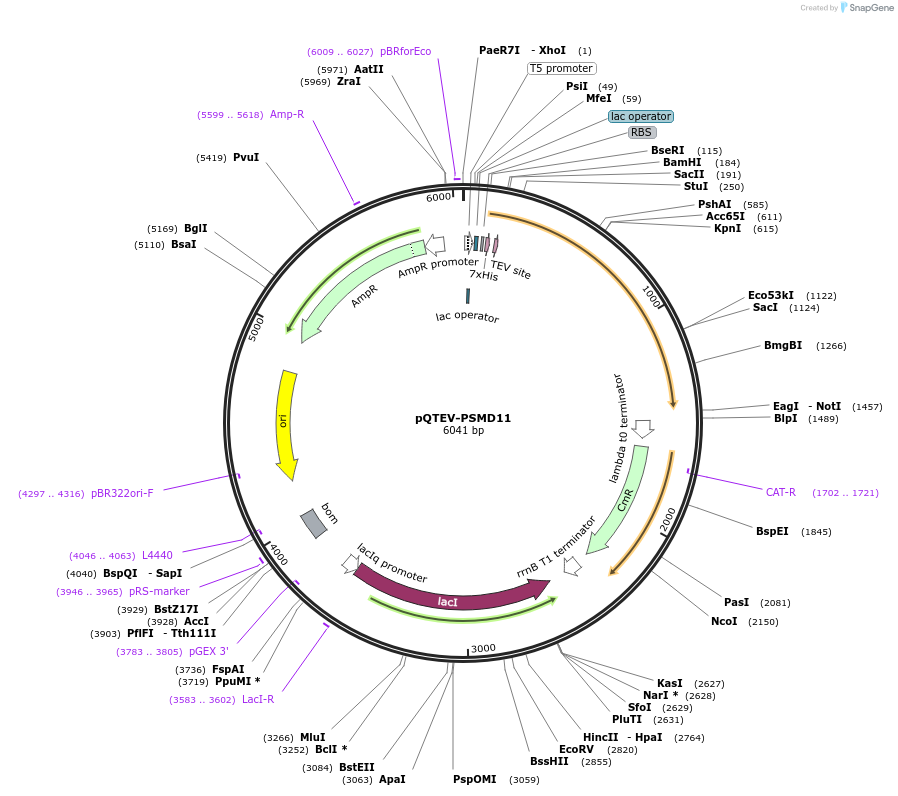

The vector pQTEV is derived from Qiagen pQE-2 and contains an inactive chloramphenicol resistance gene sequence.
The Rosetta bacterial strain contains an additional plasmid. The second plasmid, pRARE, provides rare tRNAs for overexpression of recombinant proteins. It has 4694 bp and is chloramphenicol resistence.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:pQTEV-PSMD11 was a gift from Konrad Buessow (Addgene plasmid # 31333 ; http://n2t.net/addgene:31333 ; RRID:Addgene_31333)
For your References section:Structural genomics of human proteins--target selection and generation of a public catalogue of expression clones. Bussow K, Scheich C, Sievert V, Harttig U, Schultz J, Simon B, Bork P, Lehrach H, Heinemann U. Microb Cell Fact. 2005 Jul 5. 4():21. 10.1186/1475-2859-4-21 PubMed 15998469
