This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 40775 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |

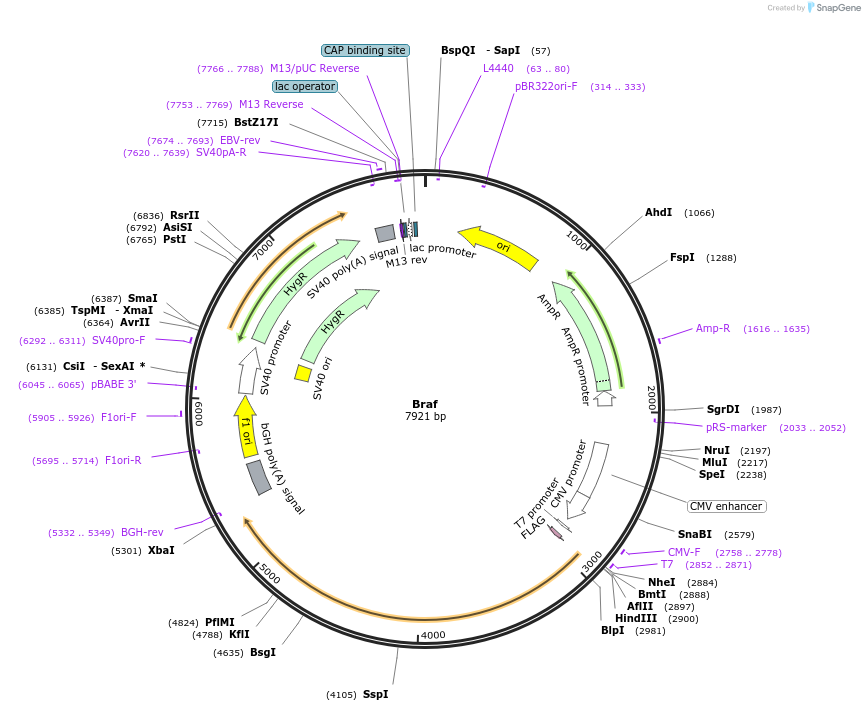

Backbone
-
Vector backbonepcDNA3.1-Hygro
- Backbone size w/o insert (bp) 5600
- Total vector size (bp) 7900
-
Vector typeMammalian Expression
-
Selectable markersHygromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)XL1 Blue
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameBraf
-
SpeciesH. sapiens (human)
-
Insert Size (bp)2300
-
MutationStarting Met removed
-
Entrez GeneBRAF (a.k.a. B-RAF1, B-raf, BRAF-1, BRAF1, NS7, RAFB1)
- Promoter CMV
-
Tag
/ Fusion Protein
- FLAG (N terminal on insert)
Cloning Information
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer T7
- 3′ sequencing primer BGHR (Common Sequencing Primers)
Resource Information
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
Braf was a gift from Dustin Maly (Addgene plasmid # 40775 ; http://n2t.net/addgene:40775 ; RRID:Addgene_40775) -
For your References section:
A computationally engineered RAS rheostat reveals RAS-ERK signaling dynamics. Rose JC, Huang PS, Camp ND, Ye J, Leidal AM, Goreshnik I, Trevillian BM, Dickinson MS, Cunningham-Bryant D, Debnath J, Baker D, Wolf-Yadlin A, Maly DJ. Nat Chem Biol. 2016 Nov 21. doi: 10.1038/nchembio.2244. 10.1038/nchembio.2244 PubMed 27870838
