PurposeExpresses MDA5 with a mutation to motif I in mammalian cells
-
Depositing Lab
-
Depositing OrganizationNorthwestern University
Located in the United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 52875 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 52875-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 52875-D100 | 100 μg of DNA in Tris buffer | $585 | ||

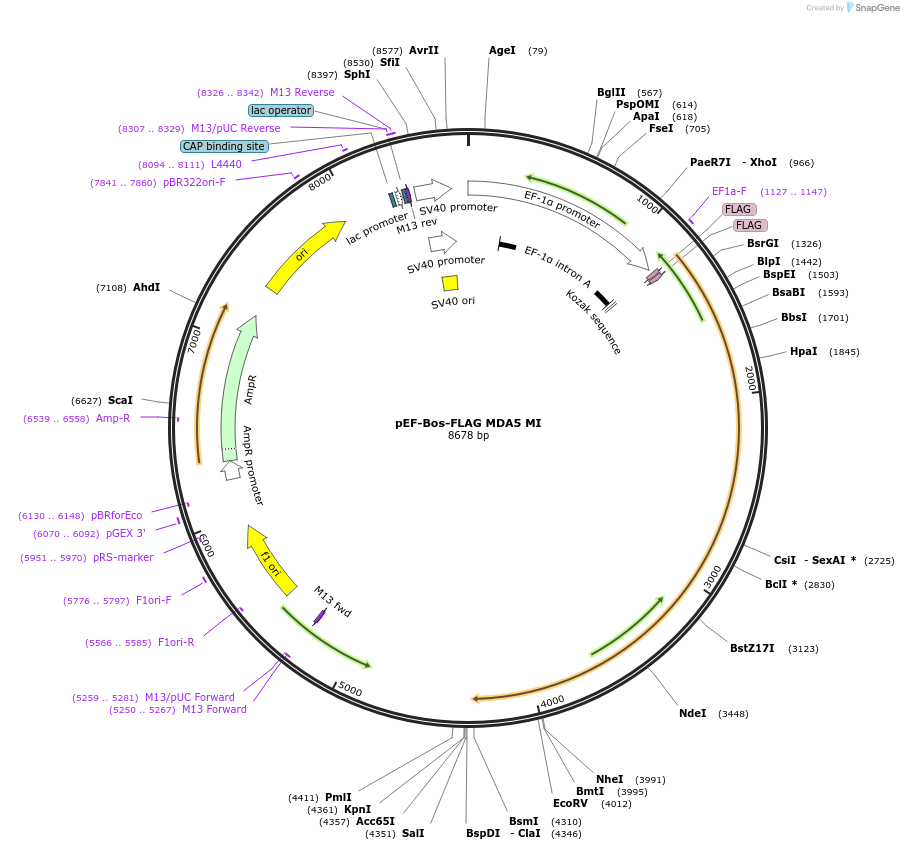

Backbone
-
Vector backbonepEF-Bos-Flag
- Backbone size w/o insert (bp) 5500
- Total vector size (bp) 8600
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameIFIH1
-
Alt nameMDA5
-
Alt nameMelanoma Differentiation-Associated protein 5
-
SpeciesH. sapiens (human)
-
Insert Size (bp)3075
-
MutationK335A, E658K
-
GenBank IDNM_022168
-
Entrez GeneIFIH1 (a.k.a. AGS7, Hlcd, IDDM19, IMD95, MDA-5, MDA5, RLR-2, SGMRT1)
-
Tag
/ Fusion Protein
- FLAG (N terminal on insert)
Cloning Information
- Cloning method Unknown
- 5′ sequencing primer pEF-Bos-F
- 3′ sequencing primer pEF-Bos-R
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 52875-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 52875-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pEF-Bos-FLAG MDA5 MI was a gift from Curt Horvath (Addgene plasmid # 52875 ; http://n2t.net/addgene:52875 ; RRID:Addgene_52875) -
For your References section:
Regulation of signal transduction by enzymatically inactive antiviral RNA helicase proteins MDA5, RIG-I, and LGP2. Bamming D, Horvath CM. J Biol Chem. 2009 Apr 10;284(15):9700-12. doi: 10.1074/jbc.M807365200. Epub 2009 Feb 11. 10.1074/jbc.M807365200 PubMed 19211564
