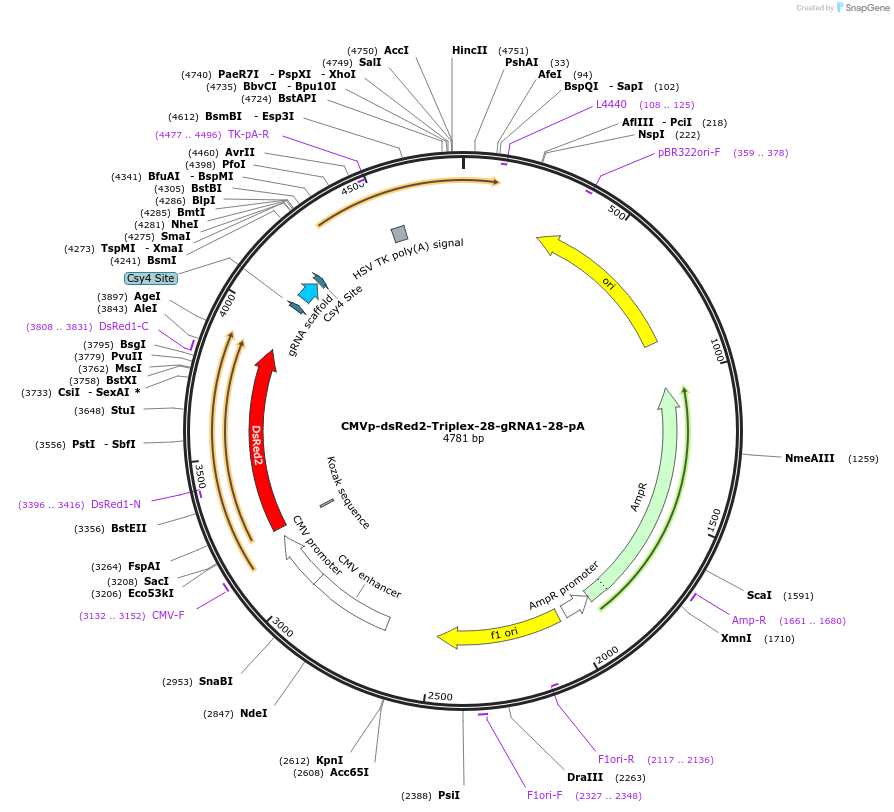

PurposePlasmid encoding the Triplex/gRNA architecture.This is a modified form of the original plasmid described in the paper (Construct 3). mKate2 was replaced with dsRed2 because of distribution issues.
|Item||Catalog #||Description||Quantity||Price (USD)|
|Plasmid||55200||Standard format: Plasmid sent in bacteria as agar stab||1||$85|
This material is available to academics and nonprofits only.
Vector backbonepGL2-Luc (Addgene #26280)
- Backbone size w/o insert (bp) 3500
- Total vector size (bp) 4781
Vector typeMammalian Expression, Synthetic Biology
Growth in Bacteria
Bacterial Resistance(s)Ampicillin, 100 μg/mL
SpeciesH. sapiens (human)
Insert Size (bp)1057
- Promoter CMV
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer TGCGCAACTGTTGGGAAGGGCGATCGGTGCGGGCC
- 3′ sequencing primer AGTGCGGCGACGATAGTCATGCCCC (Common Sequencing Primers)
Terms and Licenses
- Not Available to Industry
- Zeocin® is an InvivoGen trademark.
Please see http://www.rle.mit.edu/sbg/resources/ for more information.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:CMVp-dsRed2-Triplex-28-gRNA1-28-pA was a gift from Timothy Lu (Addgene plasmid # 55200 ; http://n2t.net/addgene:55200 ; RRID:Addgene_55200)
For your References section:Multiplexed and Programmable Regulation of Gene Networks with an Integrated RNA and CRISPR/Cas Toolkit in Human Cells. Nissim L, Perli SD, Fridkin A, Perez-Pinera P, Lu TK. Mol Cell. 2014 May 14. pii: S1097-2765(14)00355-4. doi: 10.1016/j.molcel.2014.04.022. 10.1016/j.molcel.2014.04.022 PubMed 24837679
