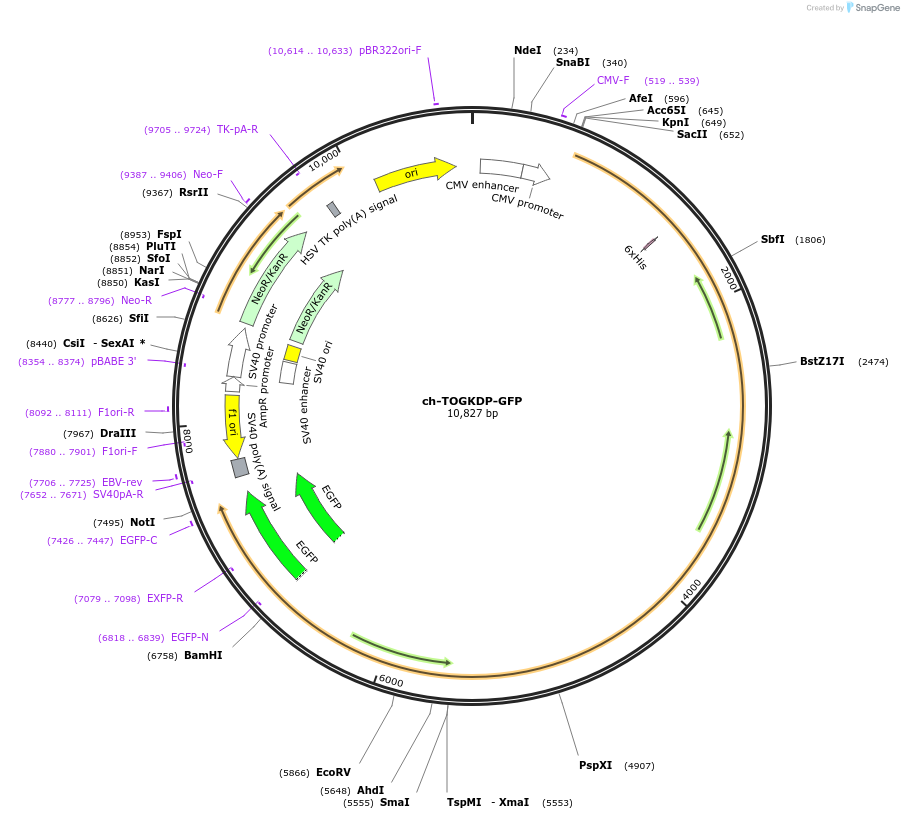

ch-TOGKDP-GFP
(Plasmid #69112)

• Purpose: For mammalian expression of knockdown-proof human ch-TOG tagged with EGFP.
• Depositing Lab: Stephen Royle
• Depositing Organization: University of Warwick
  Located in United Kingdom of Great Britain and Northern Ireland
• Publication: Gutierrez-Caballero et al Biol Open. 2015 Jan 16;4(2):170-9. doi: 10.1242/bio.201410843.
• Citations: 1 Article

Backbone

• Vector backbone: pEGFP-N3
• Backbone size w/o insert (bp): 4758
• Total vector size (bp): 10827
• Vector type: Mammalian Expression
• Selectable markers: Neomycin (select with G418)

Growth in Bacteria

• Bacterial Resistance(s): Kanamycin, 50 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): XL10 Gold
• Copy number: Unknown

Gene/Insert

• Gene/Insert name: Colonic Hepatic Tumour Over-expressed Gene
• Alt name: ch-TOG
• Alt name: CKAP5
• Species: H. sapiens (human)
• Insert Size (bp): 6096
• Mutation: Silent mutations to confer shRNA resistance.
• GenBank ID: NM_001008938
• Entrez Gene: CKAP5 (a.k.a. CHTOG, MSPS, TOG, TOGp, ch-TOG)
• Promoter: CMV
• Tag / Fusion Protein:
  • EGFP (C terminal on backbone)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: Acc65I (not destroyed)
• 3′ cloning site: BamHI (not destroyed)
• 5′ sequencing primer: -
• 3′ sequencing primer: -

Resource Information

• A portion of this plasmid was derived from a plasmid made by: ch-TOG cDNA purchased. IMAGE ID: 40072423 (Clone BC120869).

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

DNA (Catalog # 69112-D50)

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

• Amount: 50 μg
• Concentration: 1 μg/μL
• Pricing: $495 USD
• Storage: 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

DNA (Catalog # 69112-D100)

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

• Amount: 100 μg
• Concentration: 1 μg/μL
• Pricing: $585 USD
• Storage: 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
