(Plasmid #69941)


Item Catalog # Description Quantity Price (USD)
Plasmid 69941 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.


  • Vector backbone
  • Backbone size w/o insert (bp) 3376
  • Total vector size (bp) 4524
  • Vector type
    Bacterial Expression, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
  • Growth Temperature
  • Growth Strain(s)
  • Copy number
    Low Copy


  • Gene/Insert name
  • Species
  • Insert Size (bp)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site PstI (not destroyed)
  • 5′ sequencing primer tgccacctgacgtctaagaa
  • 3′ sequencing primer gctcactcaaaggcggtaat
  • (Common Sequencing Primers)

Resource Information

Depositor Comments

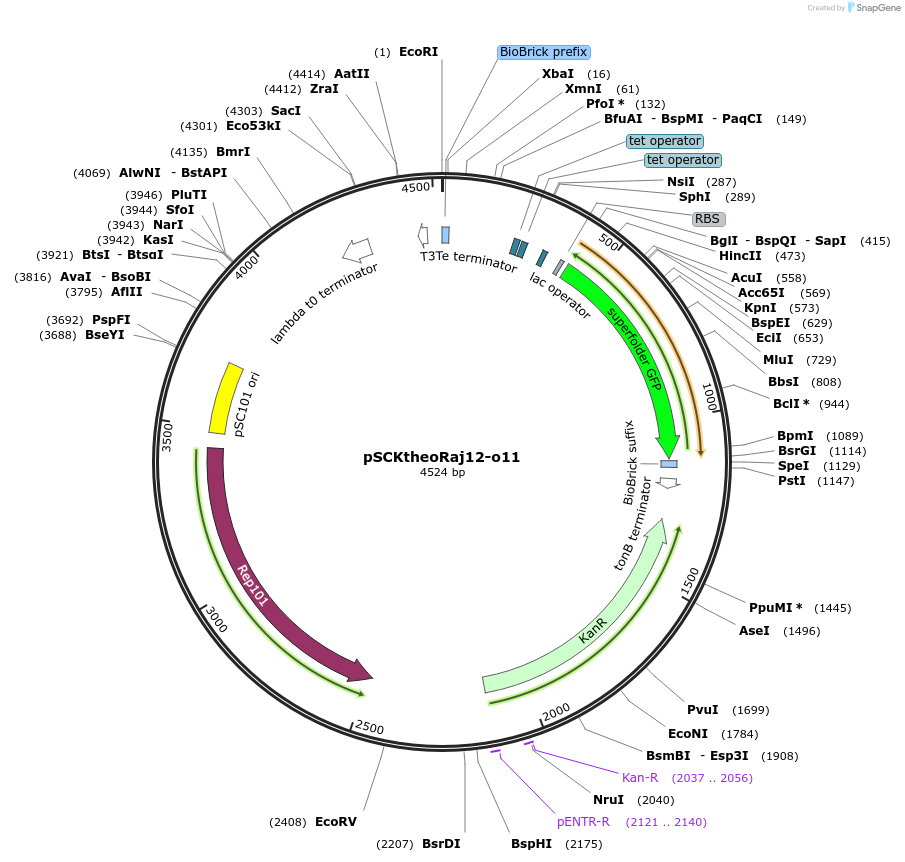

Please check Genbank file for complete sequence annotation.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSCKtheoRaj12-o11 was a gift from Alfonso Jaramillo (Addgene plasmid # 69941 ; ; RRID:Addgene_69941)
  • For your References section:

    Dynamic signal processing by ribozyme-mediated RNA circuits to control gene expression. Shen S, Rodrigo G, Prakash S, Majer E, Landrain TE, Kirov B, Daros JA, Jaramillo A. Nucleic Acids Res. 2015 May 26;43(10):5158-70. doi: 10.1093/nar/gkv287. Epub 2015 Apr 27. 10.1093/nar/gkv287 PubMed 25916845
