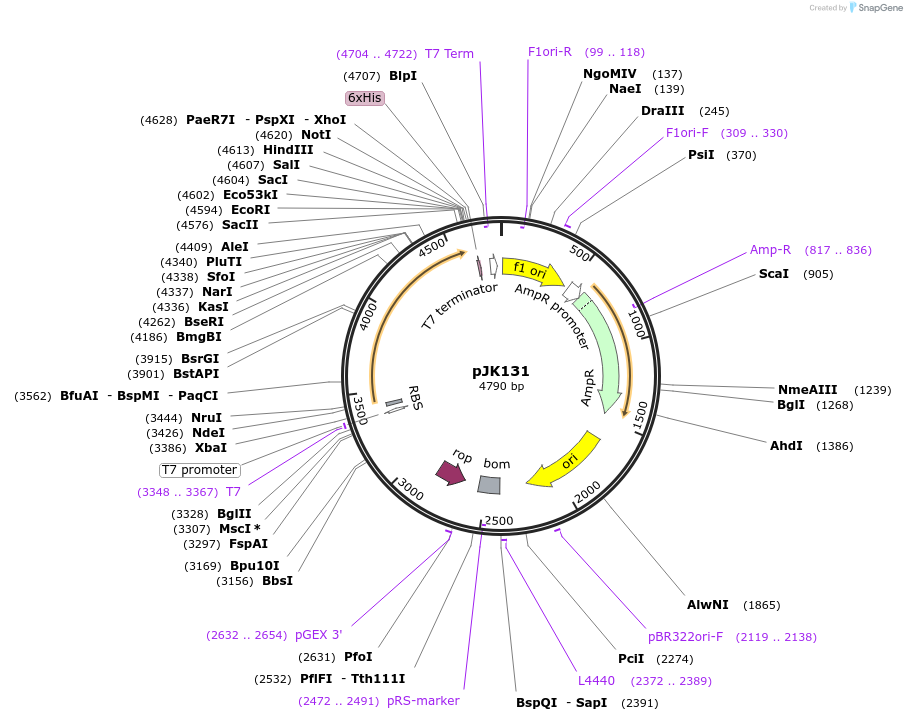

pJK131
(Plasmid #71548)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 71548 Standard format: Plasmid sent in bacteria as agar stab 1 $65

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pET23a
  • Backbone size w/o insert (bp) 3666
  • Total vector size (bp) 4790
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Alanine racemase
  • Alt name
    alr
  • Species
    Geobacillus stearothermophilus
  • GenBank ID
    AAA22220 M19142
  • Promoter T7

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NdeI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer T7 promoter
  • 3′ sequencing primer T7 terminator
  • (Common Sequencing Primers)

Resource Information

  • Terms and Licenses
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pJK131 was a gift from T. J. Kappock (Addgene plasmid # 71548 ; http://n2t.net/addgene:71548 ; RRID:Addgene_71548)
  • For your References section:

    Alanine racemase from the acidophile Acetobacter aceti. Francois JA, Kappock TJ. Protein Expr Purif. 2007 Jan;51(1):39-48. Epub 2006 Jun 6. 10.1016/j.pep.2006.05.016 PubMed 16843006
