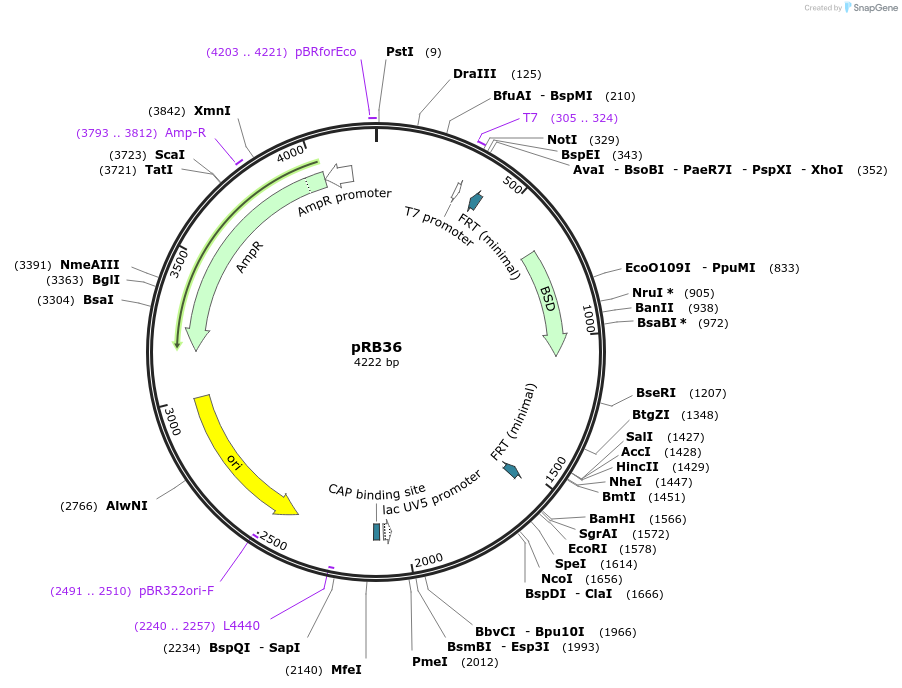

pRB36
(Plasmid #72861)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 72861 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pJet1.2
  • Backbone size w/o insert (bp) 2974
  • Total vector size (bp) 4222
  • Modifications to backbone
    contains a copia-Blasticidin cassette, followed by the Drosophila mtnDE promoter, flanked by FRT-sites
  • Vector type
    Insect Expression
  • Selectable markers
    Blasticidin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    base vector for introduction of tags
  • Species
    synthetic
  • Insert Size (bp)
    1242

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XhoI (not destroyed)
  • 3′ cloning site SpeI (not destroyed)
  • 5′ sequencing primer pJet fwd
  • 3′ sequencing primer pJet rev
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

We observe rather poor growth of bacteria with the pJet1.2 backbone, resulting in low yields of the plasmid preps.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pRB36 was a gift from Klaus Foerstemann (Addgene plasmid # 72861 ; http://n2t.net/addgene:72861 ; RRID:Addgene_72861)
  • For your References section:

    A Comprehensive Toolbox for Genome Editing in Cultured Drosophila melanogaster Cells. Kunzelmann S, Bottcher R, Schmidts I, Forstemann K. G3 (Bethesda). 2016 Jun 1;6(6):1777-85. doi: 10.1534/g3.116.028241. 10.1534/g3.116.028241 PubMed 27172193
