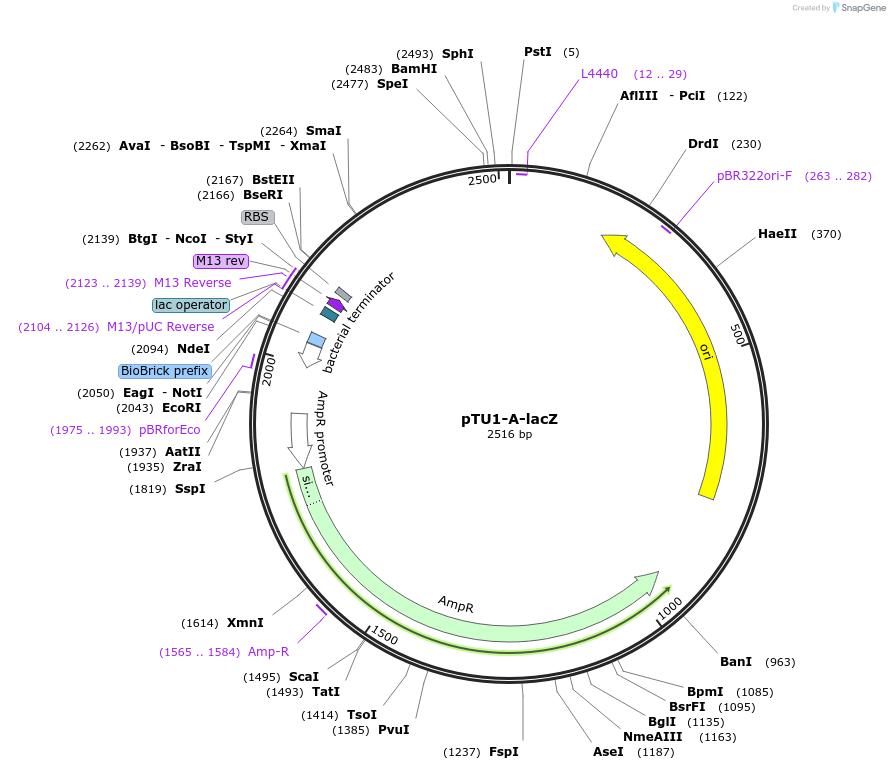

pTU1-A-lacZ
(Plasmid #72935)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 72935 Standard format: Plasmid sent in bacteria as agar stab 1 $65

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pSB1A2
  • Backbone manufacturer
    iGEM
  • Backbone size w/o insert (bp) 2532
  • Vector type
    Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    JM109
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Level 1 - A site
  • Alt name
    LacZalpha fragment
  • Species
    Synthetic
  • Mutation
    Beta-lactamase - G717C (nucleotide) - silent mutagenesis to remove BsaI site

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Unknown (unknown if destroyed)
  • 3′ cloning site Unknown (unknown if destroyed)
  • 5′ sequencing primer VF2 (5' tgccacctgacgtctaagaa 3')
  • 3′ sequencing primer VR (5' attaccgcctttgagtgagc 3')
  • (Common Sequencing Primers)

Resource Information

  • Terms and Licenses
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pTU1-A-lacZ was a gift from Paul Freemont (Addgene plasmid # 72935)
  • For your References section:

    EcoFlex: A Multifunctional MoClo Kit for E. coli Synthetic Biology. Moore SJ, Lai HE, Kelwick RJ, Chee SM, Bell DJ, Polizzi KM, Freemont PS. ACS Synth Biol. 2016 May 2. 10.1021/acssynbio.6b00031 PubMed 27096716
