|Item||Catalog #||Description||Quantity||Price (USD)|
|Plasmid||74098||Standard format: Plasmid sent in bacteria as agar stab||1||$85|
This material is available to academics and nonprofits only.
- Backbone size w/o insert (bp) 2044
- Total vector size (bp) 2134
Modifications to backboneModifications between XbaI and PstI from original pSB1C3 plasmid. CAT gene - C435G (nucleotide) - silent mutagenesis to remove BsmBI site
Vector typeBacterial Expression, Synthetic Biology
Growth in Bacteria
Bacterial Resistance(s)Chloramphenicol, 25 μg/mL
Copy numberHigh Copy
Gene/Insert nameTL9 RBS
Alt nameShine-Dalgarno sequence (weak)
Insert Size (bp)42
- Promoter None
- Cloning method Restriction Enzyme
- 5′ cloning site BsaI (not destroyed)
- 3′ cloning site BsaI (not destroyed)
- 5′ sequencing primer tgccacctgacgtctaagaa (Common Sequencing Primers)
Terms and Licenses
- Not Available to Industry
- Zeocin® is an InvivoGen trademark.

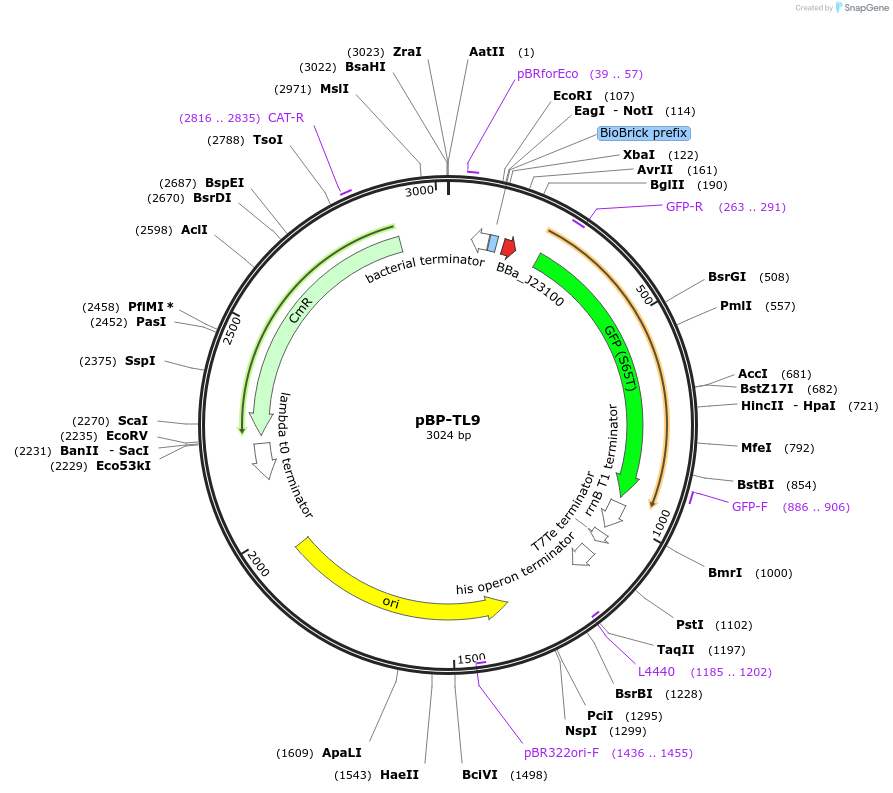

This plasmid contains the TL9 RBS upstream of GFP.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:pBP-TL9 was a gift from Paul Freemont (Addgene plasmid # 74098 ; http://n2t.net/addgene:74098 ; RRID:Addgene_74098)
For your References section:EcoFlex: A Multifunctional MoClo Kit for E. coli Synthetic Biology. Moore SJ, Lai HE, Kelwick RJ, Chee SM, Bell DJ, Polizzi KM, Freemont PS. ACS Synth Biol. 2016 May 2. 10.1021/acssynbio.6b00031 PubMed 27096716
