pMars1CyeGFP
(Plasmid
#75222)
-
PurposeMammalian intracellular expression of fluorogen activating protein Mars1Cy-eGFP fusion
-
Depositing Lab
-
Depositing OrganizationCarnegie Mellon University
Located in United States of America -

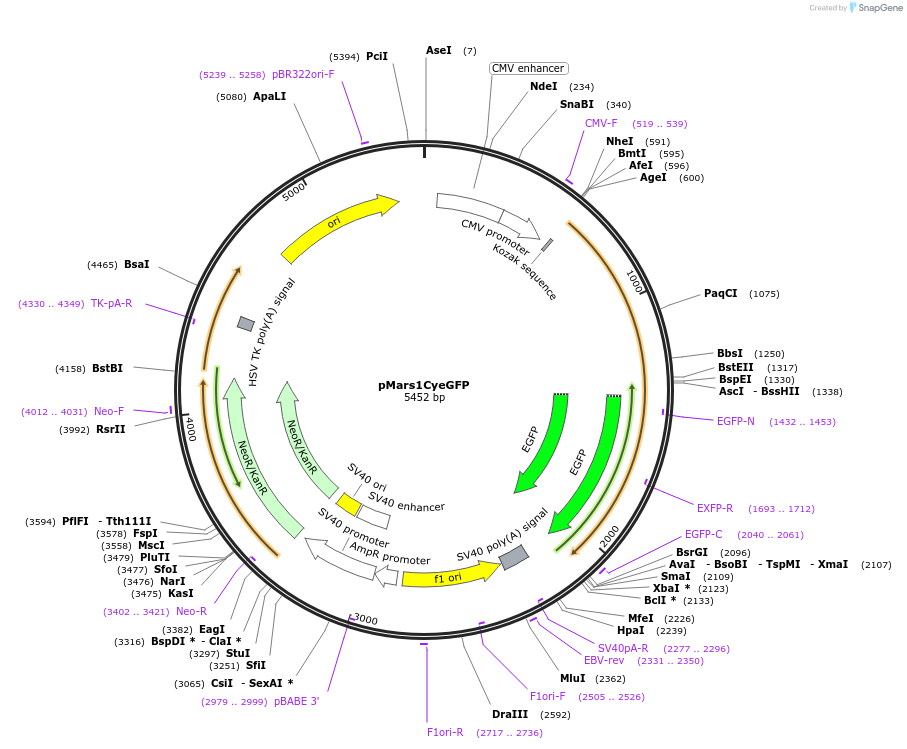

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 75222 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 75222-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 75222-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepEGFP
-
Backbone manufacturerClontech
- Backbone size w/o insert (bp) 3958
- Total vector size (bp) 5452
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameMars1Cy-EGFP
-
Alt namedL9.5-EGFP
-
SpeciesSynthetic
- Promoter CMV
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site NheI (not destroyed)
- 3′ cloning site XmaI (not destroyed)
- 5′ sequencing primer cgcaaatgggcggtaggcgtg
- 3′ sequencing primer ctctacaaatgtggtatggctg
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 75222-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 75222-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pMars1CyeGFP was a gift from Alan Waggoner (Addgene plasmid # 75222 ; http://n2t.net/addgene:75222 ; RRID:Addgene_75222) -
For your References section:
Fluoromodule-based reporter/probes designed for in vivo fluorescence imaging. Zhang M, Chakraborty SK, Sampath P, Rojas JJ, Hou W, Saurabh S, Thorne SH, Bruchez MP, Waggoner AS. J Clin Invest. 2015 Oct 1;125(10):3915-27. doi: 10.1172/JCI81086. Epub 2015 Sep 8. 10.1172/JCI81086 PubMed 26348895
