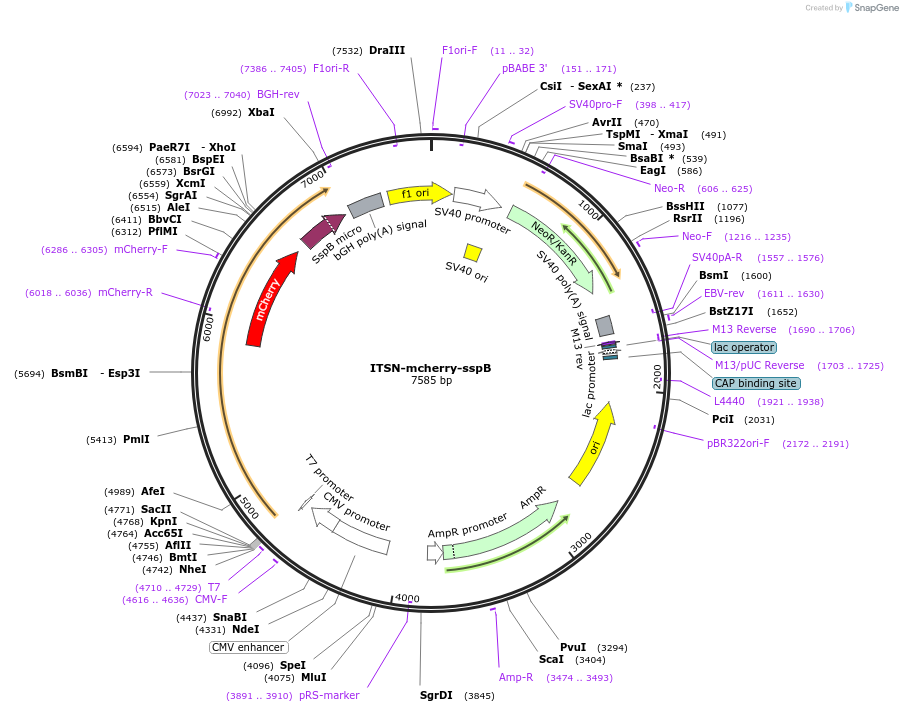

ITSN-mcherry-sspB
(Plasmid #85220)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 85220 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pcDNA3.1
  • Backbone manufacturer
    invitrogen
  • Backbone size w/o insert (bp) 5428
  • Total vector size (bp) 7585
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    ITSN1(1225-1575)
  • Alt name
    Intersectin 1
  • Species
    H. sapiens (human)
  • GenBank ID
    NM_001331010
  • Entrez Gene
    ITSN1 (a.k.a. ITSN, SH3D1A, SH3P17)
  • Promoter CMV
  • Tag / Fusion Protein
    • NA

Cloning Information for Gene/Insert 1

  • Cloning method Restriction Enzyme
  • 5′ cloning site KpnI (not destroyed)
  • 3′ cloning site EcoR1 (not destroyed)
  • 5′ sequencing primer T7 primer
  • 3′ sequencing primer BGH reverse primer
  • (Common Sequencing Primers)

Gene/Insert 2

  • Gene/Insert name
    mcherry
  • Species
    Synthetic
  • Insert Size (bp)
    710
  • Promoter CMV

Cloning Information for Gene/Insert 2

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoR1 (destroyed during cloning)
  • 3′ cloning site BspE1 (not destroyed)
  • 5′ sequencing primer cttccacatctcccacattgac
  • (Common Sequencing Primers)

Gene/Insert 3

  • Gene/Insert name
    sspB
  • Species
    bacterial
  • Insert Size (bp)
    342
  • Mutation
    R73Q
  • Promoter CMV

Cloning Information for Gene/Insert 3

  • Cloning method Restriction Enzyme
  • 5′ cloning site BspE1 (destroyed during cloning)
  • 3′ cloning site XbaI (not destroyed)
  • 5′ sequencing primer ggactacaccatcgtggaacagtacgaacg
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    ITSN-mcherry-sspB was a gift from Narasimhan Gautam (Addgene plasmid # 85220 ; http://n2t.net/addgene:85220 ; RRID:Addgene_85220)
  • For your References section:

    Subcellular optogenetic activation of Cdc42 controls local and distal signaling to drive immune cell migration. O'Neill PR, Kalyanaraman V, Gautam N. Mol Biol Cell. 2016 May 1;27(9):1442-50. doi: 10.1091/mbc.E15-12-0832. Epub 2016 Mar 3. 10.1091/mbc.E15-12-0832 PubMed 26941336
