pcDNA3.1-STIM1-Venus-173-C
(Plasmid
#87619)
-
PurposeFull-length STIM1 fused to C-terminal Venus (YFP) fragment; for BiFC.
-
Depositing Lab
-
Depositing OrganizationUniversity of California, San Diego (UCSD)
Located in United States of America -
Citations
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 87619 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 87619-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 87619-D100 | 100 μg of DNA in Tris buffer | $585 | ||

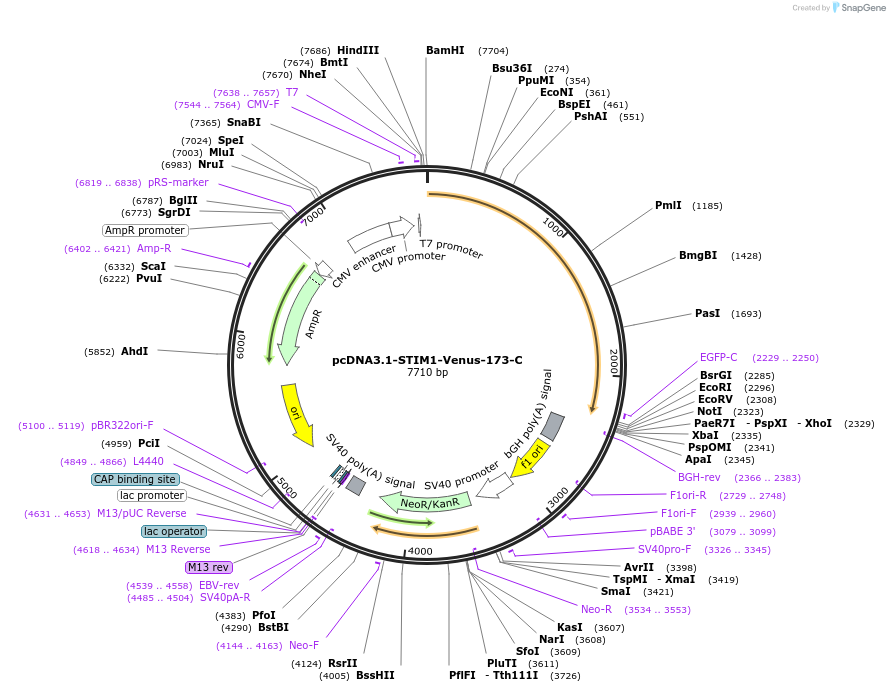

Backbone
-
Vector backbonepcDNA3.1
-
Backbone manufacturerInvitrogen
- Backbone size w/o insert (bp) 5500
- Total vector size (bp) 7707
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameSTIM1-Venus173-C
-
SpeciesH. sapiens (human), Synthetic
-
Insert Size (bp)2295
-
Entrez GeneSTIM1 (a.k.a. D11S4896E, GOK, IMD10, STRMK, TAM, TAM1)
- Promoter CMV
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BamHI (unknown if destroyed)
- 3′ cloning site EcoRI (unknown if destroyed)
- 5′ sequencing primer T7 forward
- 3′ sequencing primer BGH reverse
- (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made bySTIM1 cDNA provided by Dr. Paul Worley (Johns Hopkins)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 87619-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 87619-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pcDNA3.1-STIM1-Venus-173-C was a gift from Jin Zhang (Addgene plasmid # 87619 ; http://n2t.net/addgene:87619 ; RRID:Addgene_87619) -
For your References section:
RefSOFI for Mapping Nanoscale Organization of Protein-Protein Interactions in Living Cells. Hertel F, Mo GC, Duwe S, Dedecker P, Zhang J. Cell Rep. 2016 Jan 12;14(2):390-400. doi: 10.1016/j.celrep.2015.12.036. Epub 2015 Dec 31. 10.1016/j.celrep.2015.12.036 PubMed 26748717
