PurposeLabels mother centrioles/basal bodies
|Item||Catalog #||Description||Quantity||Price (USD)|
|Plasmid||89472||Standard format: Plasmid sent in bacteria as agar stab||1||$75|
This material is available to academics and nonprofits only.
- Backbone size w/o insert (bp) 4700
- Total vector size (bp) 5800
Vector typeMammalian Expression
Growth in Bacteria
Bacterial Resistance(s)Ampicillin, 100 μg/mL
Copy numberHigh Copy
Gene/Insert namehuman Chibby1
SpeciesH. sapiens (human)
Entrez GeneCBY1 (a.k.a. C22orf2, CBY, Chibby1, HS508I15A, PGEA1, PIGEA-14, PIGEA14, arb1)
/ Fusion Protein
- GFP (N terminal on backbone)
- Cloning method Restriction Enzyme
- 5′ cloning site EcoRI (not destroyed)
- 3′ cloning site XhoI (not destroyed)
- 5′ sequencing primer ACCACATGGTCCTTCTTCAG
- 3′ sequencing primer TTATGCTGAGTGATATC (Common Sequencing Primers)
Article Citing this Plasmid
Terms and Licenses
- Not Available to Industry
- Zeocin® is an InvivoGen trademark.

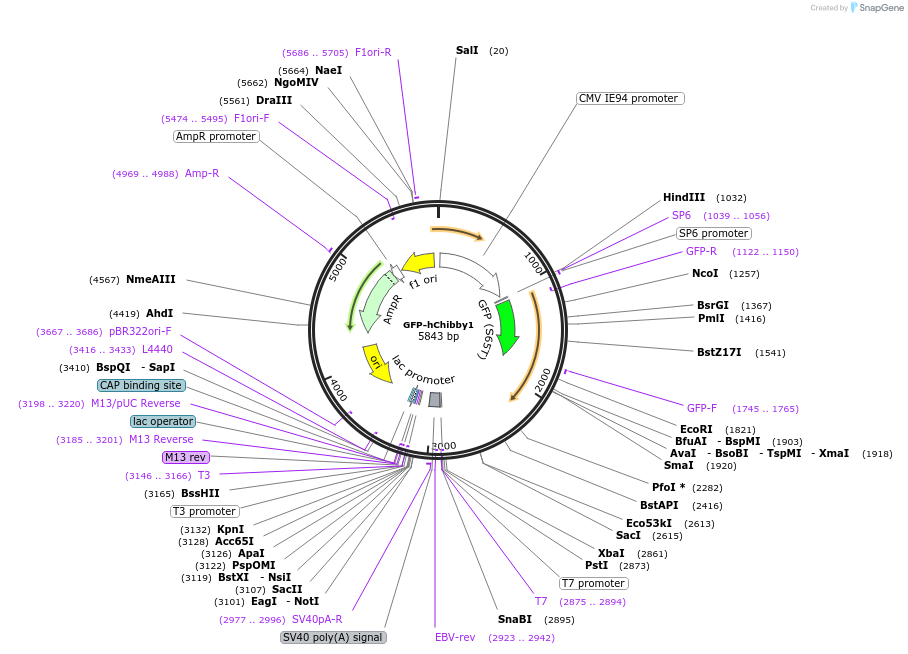

A human Chibby1 cDNA including its 3' UTR was subcloned into the V8 BB.GFPLT CS2+ vector (Addgene plasmid #17099).
The insert can be sequenced using the following primers: forward (GFP primer), ACCACATGGTCCTTCTTCAG;
reverse (T7 primer), TTATGCTGAGTGATATC.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:GFP-hChibby1 was a gift from Ken-Ichi Takemaru (Addgene plasmid # 89472 ; http://n2t.net/addgene:89472 ; RRID:Addgene_89472)
