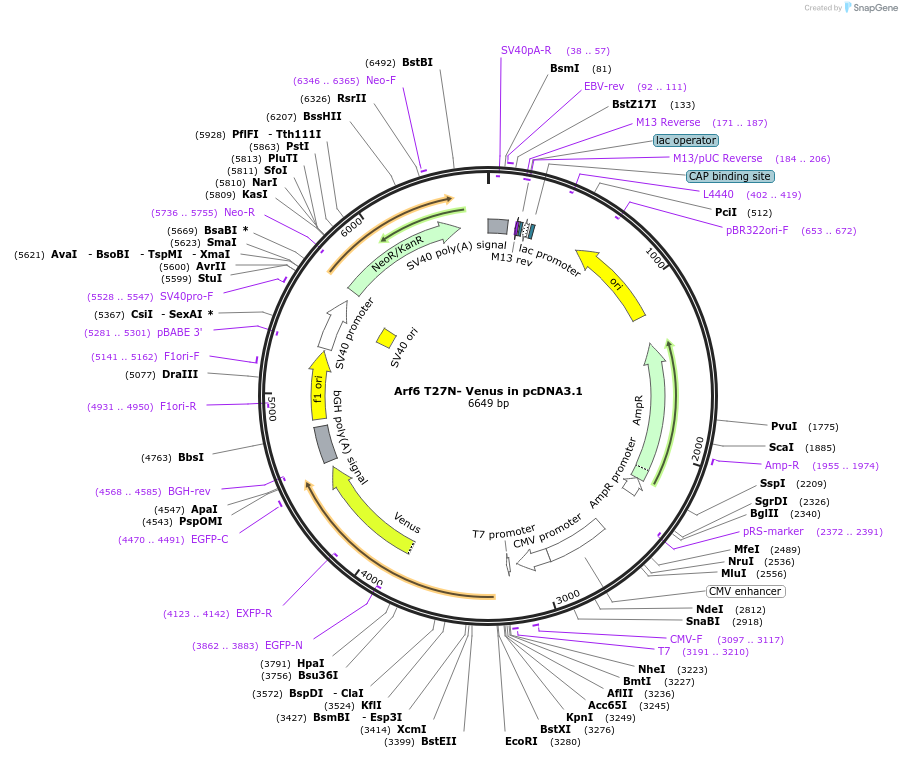

Arf6 T27N- Venus in pcDNA3.1
(Plasmid #90464)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 90464 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pcDNA3.1
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 5428
  • Total vector size (bp) 6667
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Arf6 T27N
  • Insert Size (bp)
    528
  • Entrez Gene
    ARF6
  • Promoter CMV
  • Tag / Fusion Protein
    • Venus (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoR1 (not destroyed)
  • 3′ cloning site BglII (destroyed during cloning)
  • 5′ sequencing primer T7 forward primer
  • 3′ sequencing primer BGH reverse primer
  • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

The entire Arf6 T27N-Venus can be cut out from pcDNA3.1 using EcoR1 and XbaI

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Arf6 T27N- Venus in pcDNA3.1 was a gift from Narasimhan Gautam (Addgene plasmid # 90464 ; http://n2t.net/addgene:90464 ; RRID:Addgene_90464)
  • For your References section:

    SRRF-Stream Imaging of Optogenetically Controlled Furrow Formation Shows Localized and Coordinated Endocytosis and Exocytosis Mediating Membrane Remodeling. Castillo-Badillo JA, Bandi AC, Harlalka S, Gautam N. ACS Synth Biol. 2020 Mar 16. doi: 10.1021/acssynbio.9b00521. 10.1021/acssynbio.9b00521 PubMed 32155337
