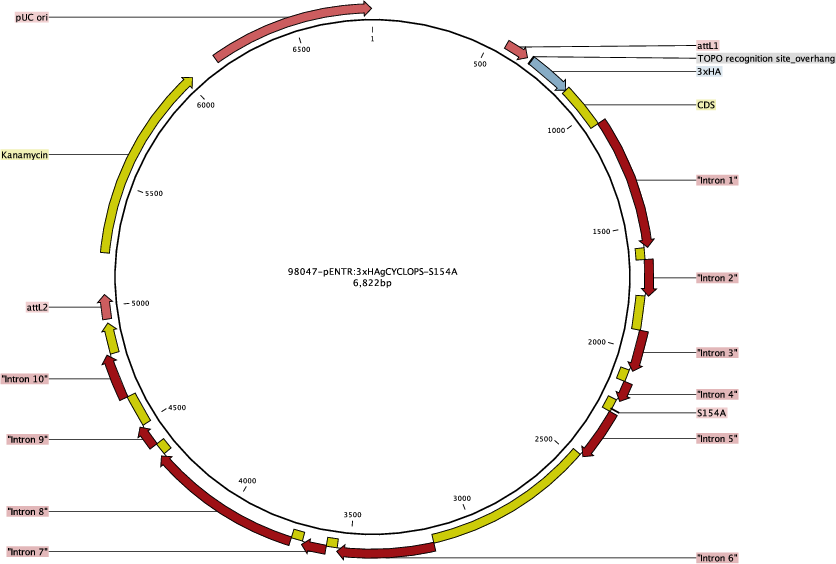

pENTR:3xHAgCYCLOPS-S154A
(Plasmid
#98047)
-
Purpose3xHA-gCYCLOPS-S154A for Gateway Cloning
-
Depositing Lab
-

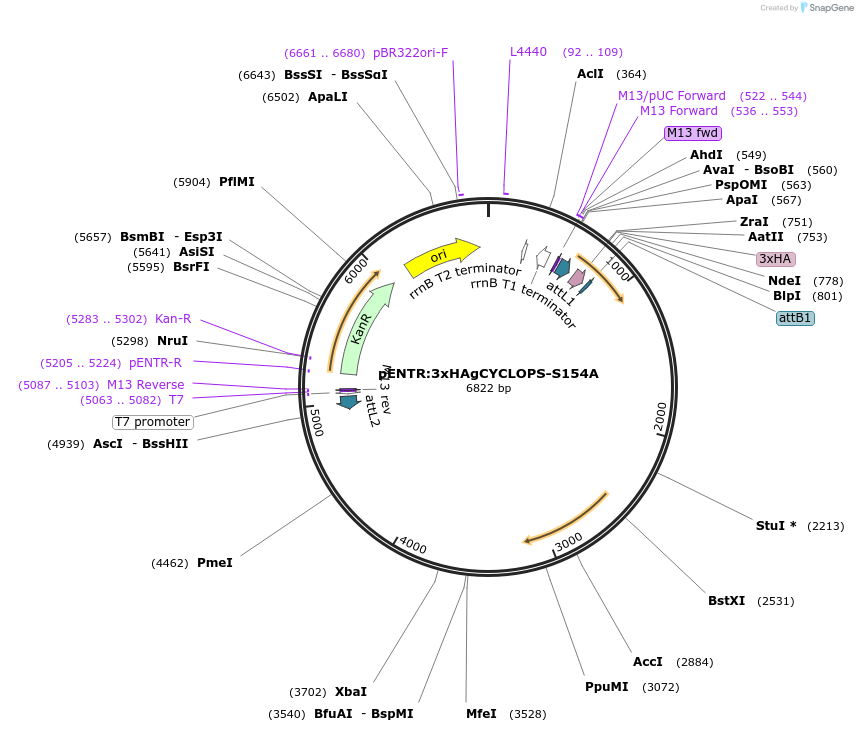

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 98047 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
This material is available to academics and nonprofits only.
Backbone
-
Vector backbonepENTR-TOPO
-
Backbone manufacturerInvitrogen
- Backbone size w/o insert (bp) 2763
- Total vector size (bp) 6822
-
Vector typeEntry vector
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameCYCLOPS
-
SpeciesL. japonicus
-
Insert Size (bp)4059
-
Mutationserine 154 to alanine
-
GenBank IDAP009158.1
- Promoter none
-
Tag
/ Fusion Protein
- 3xHA-tag (N terminal on insert)
Cloning Information
- Cloning method TOPO Cloning
- 5′ sequencing primer M13_fwd GTAAAACGACGGCCAG
- 3′ sequencing primer M13_rev CAGGAAACAGCTATGAC (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
A portion of this plasmid was derived from a plasmid made by"CYCLOPS, a mediator of symbiotic intracellular accommodation." Yano et al., 2008
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pENTR:3xHAgCYCLOPS-S154A was a gift from Martin Parniske (Addgene plasmid # 98047) -
For your References section:
CYCLOPS, a DNA-binding transcriptional activator, orchestrates symbiotic root nodule development. Singh S, Katzer K, Lambert J, Cerri M, Parniske M. Cell Host Microbe. 2014 Feb 12;15(2):139-52. doi: 10.1016/j.chom.2014.01.011. 10.1016/j.chom.2014.01.011 PubMed 24528861
