|Item||Catalog #||Description||Quantity||Price (USD)|
|Plasmid||21717||Standard format: Plasmid sent in bacteria as agar stab||1||$75|
This material is available to academics and nonprofits only.

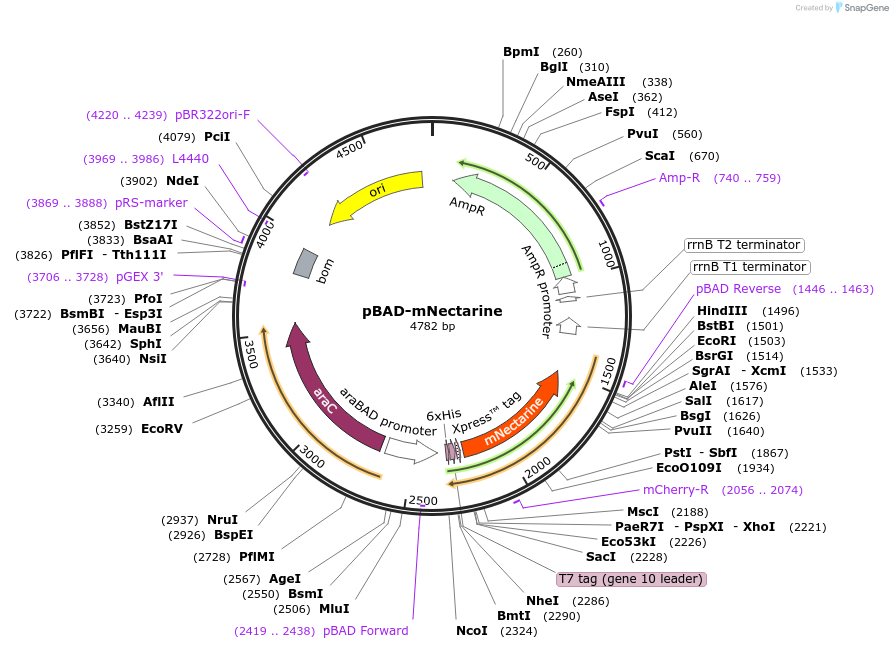

Vector backbonepBad/His B
- Backbone size w/o insert (bp) 4100
Vector typeBacterial Expression
Growth in Bacteria
Copy numberLow Copy
Gene/Insert namemNectarine fluorescent proteins
Alt nameSynthetic construct fluorescent protein mNectarine gene
Speciesevolved fluorescent protein
Insert Size (bp)720
MutationThe fluorescent protein was inserted between XhoI and EcoR1 of pBad/His B. There is an extra 'C' after XhoI to avoid the frameshift.
/ Fusion Protein
- His (N terminal on backbone)
- Cloning method Restriction Enzyme
- 5′ cloning site XhoI (not destroyed)
- 3′ cloning site EcoRI (not destroyed)
- 5′ sequencing primer ATGCCATAGCATTTTTATCC
- 3′ sequencing primer GATTTAATCTGTATCAGG (Common Sequencing Primers)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:pBAD-mNectarine was a gift from Robert Campbell (Addgene plasmid # 21717 ; http://n2t.net/addgene:21717 ; RRID:Addgene_21717)
For your References section:Red fluorescent protein pH biosensor to detect concentrative nucleoside transport. Johnson DE, Ai HW, Wong P, Young JD, Campbell RE, Casey J. J Biol Chem. 2009 Jun 3. ():. 10.1074/jbc.M109.019042 PubMed 19494110
