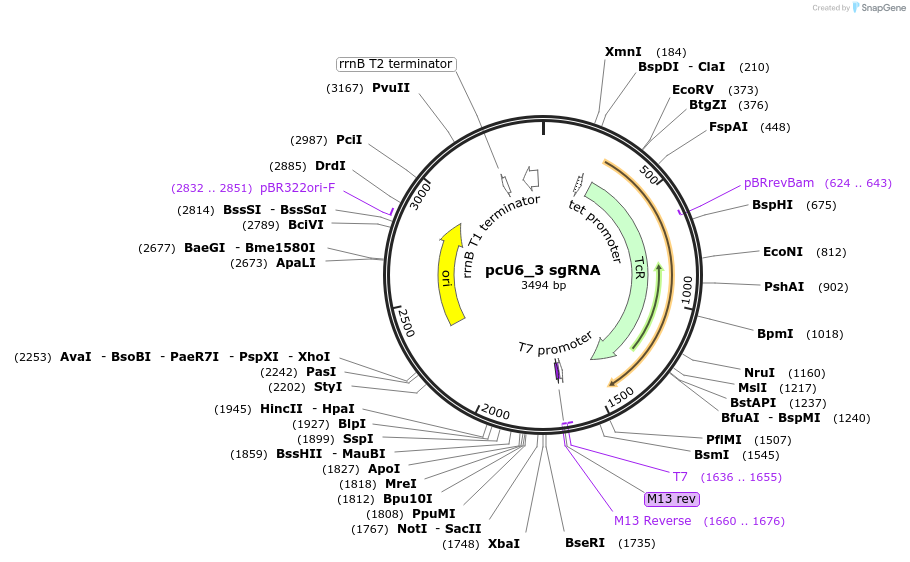

pcU6_3 sgRNA
(Plasmid #92359)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 92359 Standard format: Plasmid sent in bacteria as agar stab 1 $65

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pNG3
  • Backbone size w/o insert (bp) 3017
  • Total vector size (bp) 3494
  • Vector type
    Mammalian Expression, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Tetracycline
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    chick U6.3 promoter and gRNA cloning cassette
  • Species
    G. gallus (chicken)
  • Insert Size (bp)
    477
  • Promoter chick U6.3

Cloning Information

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    chick U6.3 promoter (Kudo and Sutou, 2005) was cloned into BsaI sites in pNG3 vector #30987
  • Terms and Licenses

Depositor Comments

Kudo, T., and S. Sutou. 2005. Usage of putative chicken U6 promoters for vector-based RNA interference. J Reprod Dev. 51:411-417.

Efficient design and assembly of custom TALEN and other TAL effector-based constructs for DNA targeting. Cermak T, Doyle EL, Christian M, Wang L, Zhang Y, Schmidt C, Baller JA, Somia NV, Bogdanove AJ, Voytas DF. Nucleic Acids Res. 2011 Apr 14. ():. 10.1093/nar/gkr218 PubMed 21493687

Please visit https://www.biorxiv.org/content/early/2017/05/08/135525 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcU6_3 sgRNA was a gift from Tatjana Sauka-Spengler (Addgene plasmid # 92359 ; http://n2t.net/addgene:92359 ; RRID:Addgene_92359)
  • For your References section:

    Genome and epigenome engineering CRISPR toolkit for in vivo modulation of cis-regulatory interactions and gene expression in the chicken embryo. Williams RM, Senanayake U, Artibani M, Taylor G, Wells D, Ahmed AA, Sauka-Spengler T. Development. 2018 Feb 23;145(4). pii: dev.160333. doi: 10.1242/dev.160333. 10.1242/dev.160333 PubMed 29386245
