pPHR-mCherry-NLS-VP16
(Plasmid
#103821)
-
PurposeSoluble BLInCR transcription activator (transactivation domain of viral VP16 protein) that is recruited to 'localizer' sites upon blue light illumination
-
Depositing Lab
-
Depositing OrganizationDeutsches Krebsforschungszentrum (DKFZ)
Located in Germany -
Citations
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 103821 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 103821-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 103821-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepmCherry-N1
-
Backbone manufacturerClontech
- Backbone size w/o insert (bp) 3945
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namePHR-mCherry-VP16
-
Alt namePHR domain of CRY2 & transactivation domain of UL48 (VP16)
-
SpeciesA. thaliana (mustard weed)
-
Insert Size (bp)2557
-
MutationVP16: G126T (silent, G42G)
-
Entrez GeneCRY2 (a.k.a. AT1G04400, AT-PHH1, ATCRY2, CRYPTOCHROME 2 APOPROTEIN, F19P19.14, F19P19_14, FHA, PHH1, cryptochrome 2)
- Promoter CMV
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site XhoI (not destroyed)
- 3′ cloning site NotI (not destroyed)
- 5′ sequencing primer CMV-F
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
aa412-482 of UL48 (transactivation domain); mCherry was cut out from the backbone (XhoI/NotI cuts) and reinserted with the insert
DNA (Catalog # 103821-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 103821-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pPHR-mCherry-NLS-VP16 was a gift from Karsten Rippe (Addgene plasmid # 103821 ; http://n2t.net/addgene:103821 ; RRID:Addgene_103821) -
For your References section:
Real-time observation of light-controlled transcription in living cells. Rademacher A, Erdel F, Trojanowski J, Schumacher S, Rippe K. J Cell Sci. 2017 Dec 15;130(24):4213-4224. doi: 10.1242/jcs.205534. Epub 2017 Nov 9. 10.1242/jcs.205534 PubMed 29122982

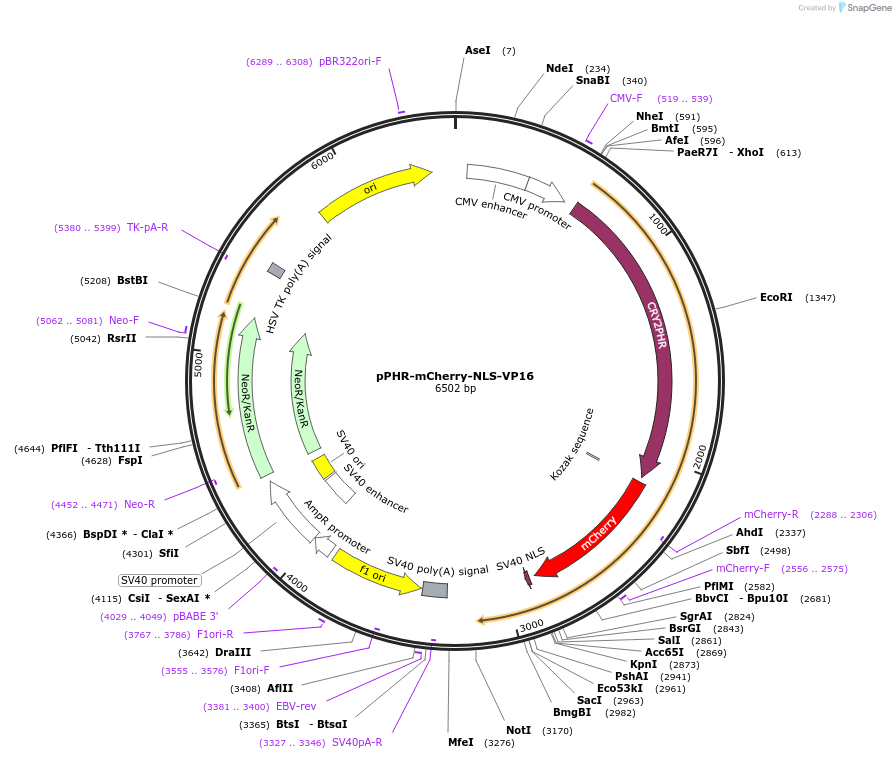

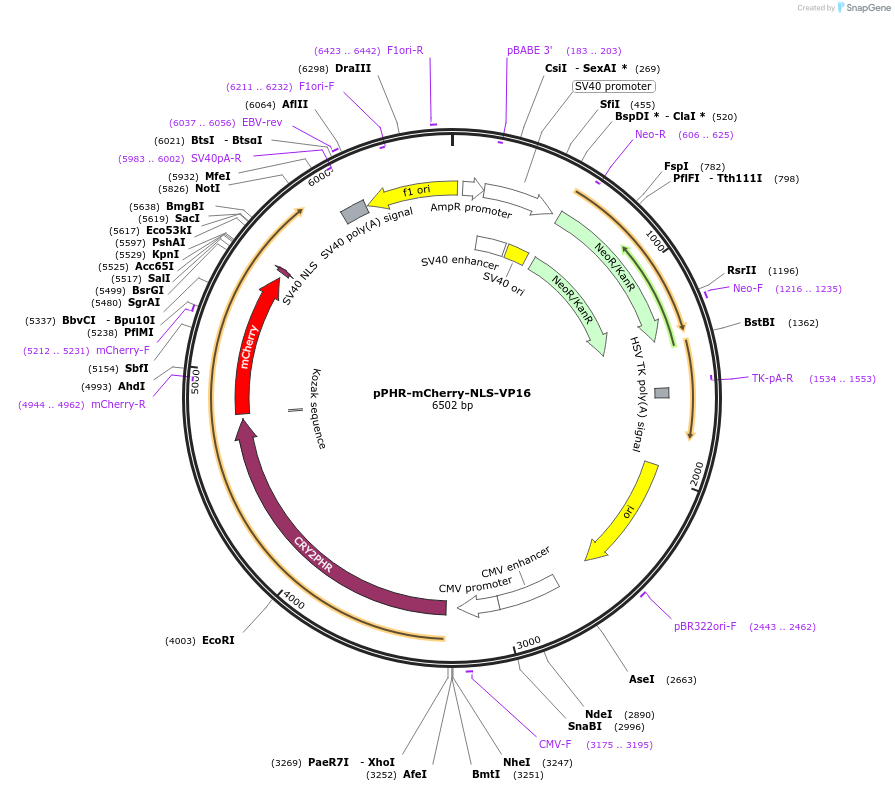

Map uploaded by the depositor.
