PurposeAAV expression of EGFP-Cre from hSyn promoter
-
Depositing Lab
-
Publication
-

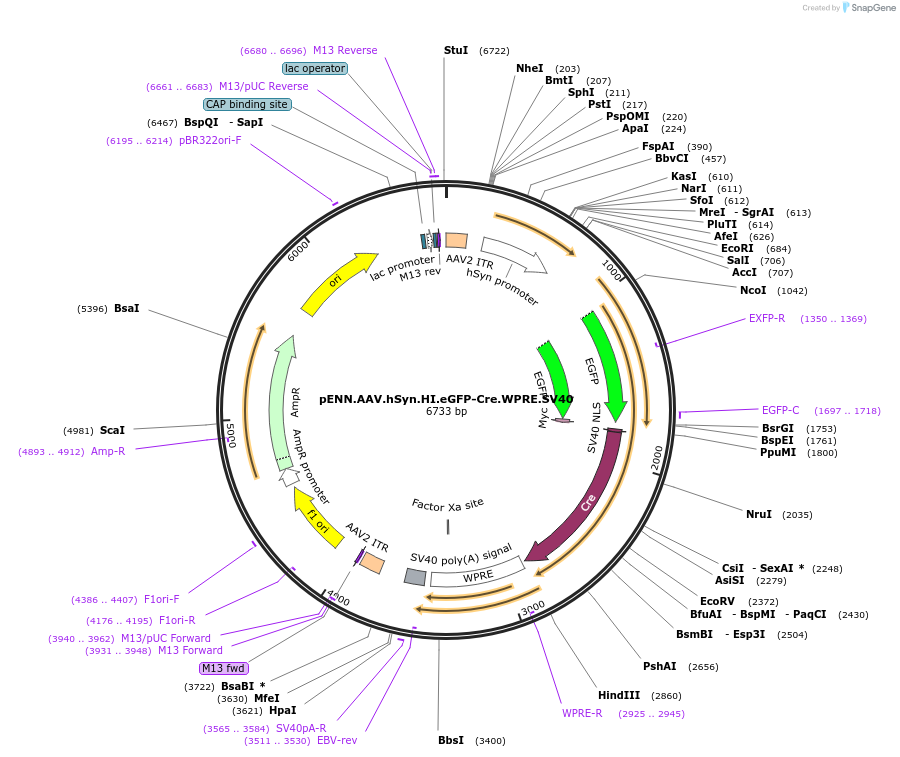

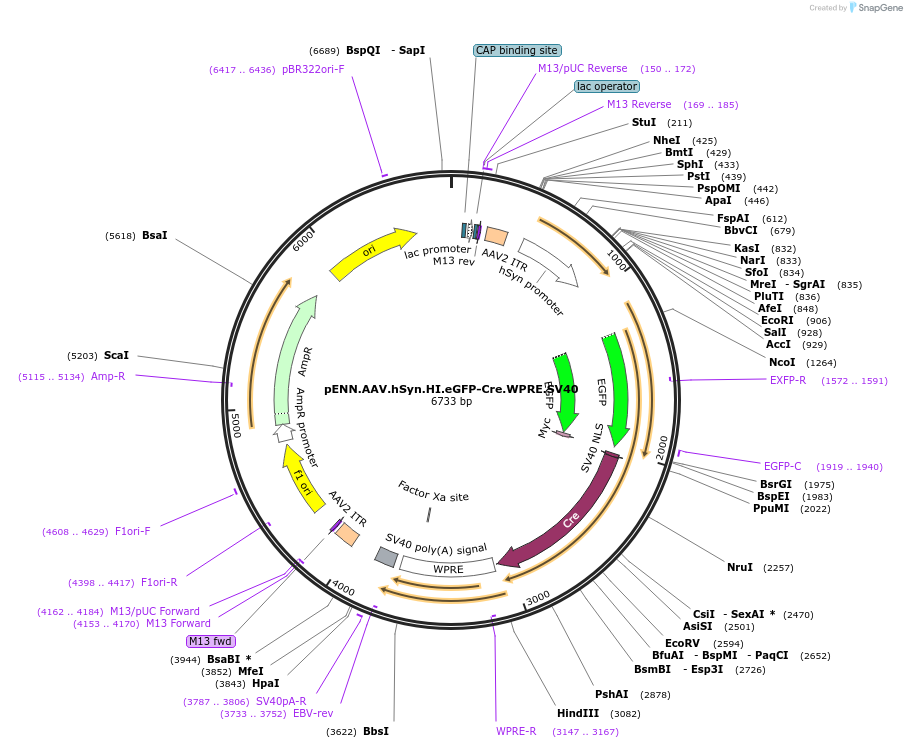

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 105540 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
AAV1 | 105540-AAV1 | 100 µL at titer ≥ 1×10¹³ vg/mL and Plasmid. | $405 | ||
AAV5 | 105540-AAV5 | Virus (100 µL at titer ≥ 7×10¹² vg/mL) and Plasmid. | $405 | ||
AAV8 | 105540-AAV8 | Virus (100 µL at titer ≥ 1×10¹³ vg/mL) and Plasmid. | $405 | ||
AAV9 | 105540-AAV9 | Virus (100 µL at titer ≥ 1×10¹³ vg/mL) and Plasmid. | $405 | ||
AAV Retrograde | 105540-AAVrg | Virus (100 µL at titer ≥ 7×10¹² vg/mL) and Plasmid. | $405 | ||
AAV PHP.eB | 105540-PHPeB | 100 µL at titer ≥ 1×10¹³ vg/mL and Plasmid. | $405 |
Backbone
-
Vector backbonepAAV
-
Vector typeMammalian Expression, AAV, Cre/Lox
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameEGFP-Cre
- Promoter hSyn
Cloning Information
- Cloning method Unknown
Resource Information
-
Supplemental Documents
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Penn Vector Core number p1848
Information for AAV1 (Catalog # 105540-AAV1) ( Back to top)
Purpose
Ready-to-use AAV1 particles produced from pENN.AAV.hSyn.HI.eGFP-Cre.WPRE.SV40 (#105540). In addition to the viral particles, you will also receive purified pENN.AAV.hSyn.HI.eGFP-Cre.WPRE.SV40 plasmid DNA.
Expression of EGFP-Cre from hSyn promoter. These AAV preparations are suitable purity for injection into animals.Delivery
- Volume 100 µL
- Titer ≥ 1×10¹³ vg/mL
- Pricing $375 USD for preparation of 100 µL virus + $30 USD for plasmid.
- Storage Store at -80℃. Thaw just before use and keep on ice.
- Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.
Viral Production & Use
- Packaging Plasmids Encode adenoviral helper sequences and AAV rep gene, AAV1 cap gene
- Buffer PBS + 0.001% Poloxamer 188
- Serotype AAV1
- Purification Iodixanol gradient ultracentrifugation
- Reporter Gene EGFP
Biosafety
Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Viral Quality Control
- Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
- Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.
Visit our viral production page for more information.
Information for AAV5 (Catalog # 105540-AAV5) ( Back to top)
Purpose
Ready-to-use AAV5 particles produced from pENN.AAV.hSyn.HI.eGFP-Cre.WPRE.SV40 (#105540). In addition to the viral particles, you will also receive purified pENN.AAV.hSyn.HI.eGFP-Cre.WPRE.SV40 plasmid DNA.
Expression of EGFP-Cre from hSyn promoter. These AAV preparations are suitable purity for injection into animals.Delivery
- Volume 100 µL
- Titer ≥ 7×10¹² vg/mL
- Pricing $375 USD for preparation of 100 µL virus + $30 USD for plasmid.
- Storage Store at -80℃. Thaw just before use and keep on ice.
- Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.
Viral Production & Use
- Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV5 cap gene
- Buffer PBS + 0.001% Poloxamer 188 + 200 mM NaCl
- Serotype AAV5
- Purification Iodixanol gradient ultracentrifugation
- Reporter Gene EGFP
Biosafety
Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Viral Quality Control
- Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
- Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.
Visit our viral production page for more information.
Information for AAV8 (Catalog # 105540-AAV8) ( Back to top)
Purpose
Ready-to-use AAV8 particles produced from pENN.AAV.hSyn.HI.eGFP-Cre.WPRE.SV40 (#105540). In addition to the viral particles, you will also receive purified pENN.AAV.hSyn.HI.eGFP-Cre.WPRE.SV40 plasmid DNA.
Expression of EGFP-Cre from hSyn promoter. These AAV preparations are suitable purity for injection into animals.Delivery
- Volume 100 µL
- Titer ≥ 1×10¹³ vg/mL
- Pricing $375 USD for preparation of 100 µL virus + $30 USD for plasmid.
- Storage Store at -80℃. Thaw just before use and keep on ice.
- Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.
Viral Production & Use
- Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV8 cap gene
- Buffer PBS + 0.001% Poloxamer 188
- Serotype AAV8
- Purification Iodixanol gradient ultracentrifugation
- Reporter Gene EGFP
Biosafety
Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Viral Quality Control
- Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
- Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.
Visit our viral production page for more information.
Information for AAV9 (Catalog # 105540-AAV9) ( Back to top)
Purpose
Ready-to-use AAV9 particles produced from pENN.AAV.hSyn.HI.eGFP-Cre.WPRE.SV40 (#105540). In addition to the viral particles, you will also receive purified pENN.AAV.hSyn.HI.eGFP-Cre.WPRE.SV40 plasmid DNA.
Synapsin-driven EGFP-Cre expression. These AAV preparations are suitable purity for injection into animals.Delivery
- Volume 100 µL
- Titer ≥ 1×10¹³ vg/mL
- Pricing $375 USD for preparation of 100 µL virus + $30 USD for plasmid.
- Storage Store at -80℃. Thaw just before use and keep on ice.
- Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.
Viral Production & Use
- Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV9 cap gene
- Buffer PBS + 0.001% Poloxamer 188
- Serotype AAV9
- Purification Iodixanol gradient ultracentrifugation
- Reporter Gene EGFP
Biosafety
Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Viral Quality Control
- Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
- Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.
Visit our viral production page for more information.
Addgene Comments
Data submitted about 105540-AAV9 by requesting scientist(s):
Information for AAV Retrograde (Catalog # 105540-AAVrg) ( Back to top)
Purpose
Ready-to-use AAV Retrograde particles produced from pENN.AAV.hSyn.HI.eGFP-Cre.WPRE.SV40 (#105540). In addition to the viral particles, you will also receive purified pENN.AAV.hSyn.HI.eGFP-Cre.WPRE.SV40 plasmid DNA.
Expression of EGFP-Cre from hSyn promoter. These AAV were produced with a retrograde serotype, which permits retrograde access to projection neurons. These AAV preparations are suitable purity for injection into animals.Delivery
- Volume 100 µL
- Titer ≥ 7×10¹² vg/mL
- Pricing $375 USD for preparation of 100 µL virus + $30 USD for plasmid.
- Storage Store at -80℃. Thaw just before use and keep on ice.
- Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.
Viral Production & Use
- Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV retrograde cap gene from rAAV2-retro helper (plasmid #81070)
- Buffer PBS + 0.001% Poloxamer 188 + 200 mM NaCl
- Serotype AAV retrograde (AAVrg)
- Purification Iodixanol gradient ultracentrifugation
- Reporter Gene EGFP
Biosafety
Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Viral Quality Control
- Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
- Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.
Visit our viral production page for more information.
Addgene Comments
Retrograde functionality is dependent on high viral titers. Addgene recommends not diluting your AAV preps prior to use.Information for AAV PHP.eB (Catalog # 105540-PHPeB) ( Back to top)
Purpose
Ready-to-use AAV PHP.eB particles produced from pENN.AAV.hSyn.HI.eGFP-Cre.WPRE.SV40 (#105540). In addition to the viral particles, you will also receive purified pENN.AAV.hSyn.HI.eGFP-Cre.WPRE.SV40 plasmid DNA.
Expression of EGFP-Cre from hSyn promoter. These AAV were produced with the PHPeB serotype, which permits efficient transduction of the central nervous system. These AAV preparations are suitable purity for injection into animals.Delivery
- Volume 100 µL
- Titer ≥ 1×10¹³ vg/mL
- Pricing $375 USD for preparation of 100 µL virus + $30 USD for plasmid.
- Storage Store at -80℃. Thaw just before use and keep on ice.
- Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.
Viral Production & Use
-
Packaging Plasmids
encode adenoviral helper sequences and AAV rep gene, PHP.eB cap gene
pUCmini-iCAP-PHP.eB (plasmid #103005) - Buffer PBS + 0.001% Poloxamer 188
- Serotype PHPeB (plasmid #103005)
- Purification Iodixanol gradient ultracentrifugation
- Reporter Gene EGFP
Biosafety
Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Viral Quality Control
- Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
- Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.
Visit our viral production page for more information.
Addgene Comments
Citation Information: When using the PHP.eB serotype in future publications, please acknowledge Viviana Gradinaru and cite Chan et al., Nat Neurosci, 20(8):1172-1179. Pubmed.These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pENN.AAV.hSyn.HI.eGFP-Cre.WPRE.SV40 was a gift from James M. Wilson (Addgene plasmid # 105540 ; http://n2t.net/addgene:105540 ; RRID:Addgene_105540) For viral preps, please replace (Addgene plasmid # 105540) in the above sentence with: (Addgene viral prep # 105540-AAV1), (Addgene viral prep # 105540-AAV5), (Addgene viral prep # 105540-AAV8), (Addgene viral prep # 105540-AAV9), (Addgene viral prep # 105540-AAVrg), or (Addgene viral prep # 105540-PHPeB)
