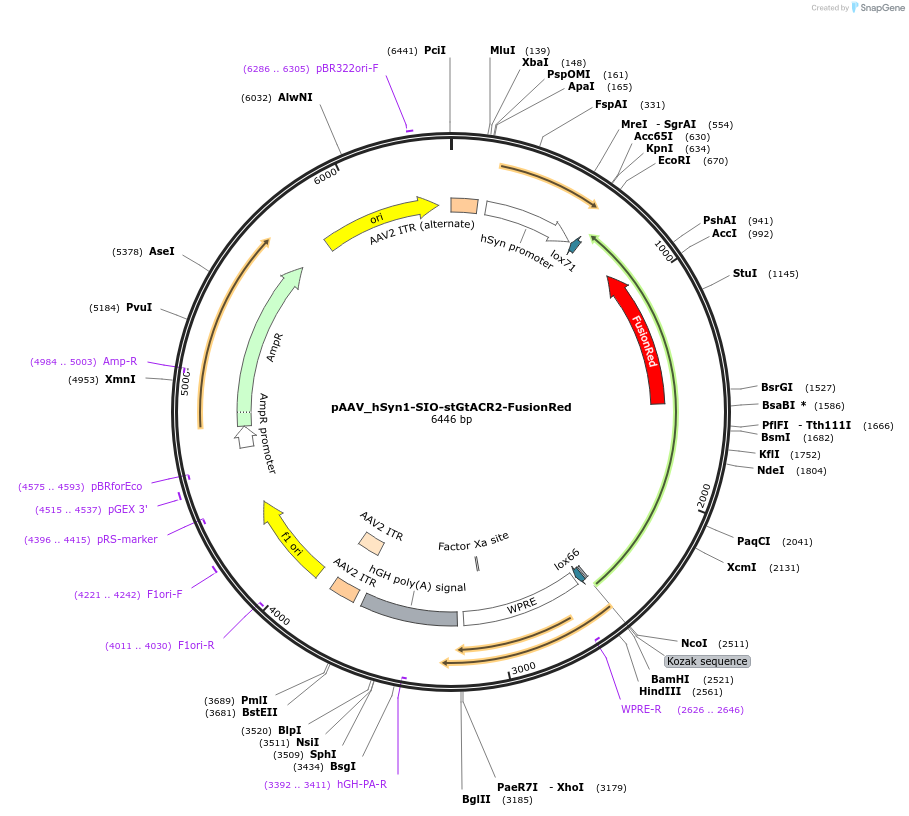

pAAV_hSyn1-SIO-stGtACR2-FusionRed
(Plasmid #105677)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 105677 Standard format: Plasmid sent in bacteria as agar stab 1 $85
AAV1 105677-AAV1 Virus (100 µL at titer ≥ 7×10¹² vg/mL) and Plasmid. $405
AAV Retrograde 105677-AAVrg Virus (100 µL at titer ≥ 7×10¹² vg/mL) and Plasmid. $405

Backbone

  • Vector backbone
    pAAV
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 4606
  • Total vector size (bp) 6469
  • Modifications to backbone
    directional Cre-Lox sites
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Growth instructions
    Use recA deficient growth strain to prevent homologous recombination.
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    stGtACR2
  • Alt name
    soma-targeted Guillardia theta anion-conducting channelrhodopsin 2
  • Species
    Synthetic; Guillardia theta
  • Insert Size (bp)
    1863
  • Promoter hSyn1
  • Tags / Fusion Proteins
    • FusionRed (C terminal on insert)
    • Kv2.1 (C terminal on insert)

Cloning Information

  • Cloning method Ligation Independent Cloning
  • 5′ sequencing primer CAGCGCTGCCTCAGTCTGC
  • 3′ sequencing primer CACATAGCGTAAAAGGAGCAAC
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Information for AAV1 (Catalog # 105677-AAV1) ( Back to top)

Purpose

Ready-to-use AAV1 particles produced from pAAV_hSyn1-SIO-stGtACR2-FusionRed (#105677). In addition to the viral particles, you will also receive purified pAAV_hSyn1-SIO-stGtACR2-FusionRed plasmid DNA.

Synapsin-driven, Cre-dependent, soma-targeted anion-conducting channelrhodopsin fused to FusionRed for optogenetic inhibition. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 7×10¹² vg/mL
  • Pricing $375 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV1 cap gene
  • Buffer PBS + 0.001% Poloxamer 188
  • Serotype AAV1
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene FusionRed (Cre-dependent)

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Terms and Licenses

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

Addgene Comments

Using FLEX vectors in vivo: LoxP sites in FLEX plasmids are known to recombine during DNA amplification and viral vector production, which may result in a minority of Cre-activated (i.e., "flipped") viral vectors. Addgene has measured this occurs in 0.1-0.8% of viral particles in our typical production protocol. This can lead to a small number of cells exhibiting Cre-independent transgene expression in vivo. To address this, it is necessary to optimize the injection volume and viral titer to find the optimal AAV dosage required for Cre-dependent transgene expression and function in vivo. This may include reducing the viral particle dosage in order to reduce the likelihood of Cre-independent expression.

Data submitted about 105677-AAV1 by requesting scientist(s):

Information for AAV Retrograde (Catalog # 105677-AAVrg) ( Back to top)

Purpose

Ready-to-use AAV Retrograde particles produced from pAAV_hSyn1-SIO-stGtACR2-FusionRed (#105677). In addition to the viral particles, you will also receive purified pAAV_hSyn1-SIO-stGtACR2-FusionRed plasmid DNA.

Synapsin-driven, Cre-dependent, soma-targeted anion-conducting channelrhodopsin fused to FusionRed for optogenetic inhibition. These AAV were produced with a retrograde serotype, which permits retrograde access to projection neurons. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 7×10¹² vg/mL
  • Pricing $375 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV retrograde cap gene from rAAV2-retro helper (plasmid #81070)
  • Buffer PBS + 0.001% Poloxamer 188 + 200 mM NaCl
  • Serotype AAV retrograde (AAVrg)
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene FusionRed (Cre-dependent)

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Terms and Licenses

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

Addgene Comments

Retrograde functionality is dependent on high viral titers. Addgene recommends not diluting your AAV preps prior to use.

Using FLEX vectors in vivo: LoxP sites in FLEX plasmids are known to recombine during DNA amplification and viral vector production, which may result in a minority of Cre-activated (i.e., "flipped") viral vectors. Addgene has measured this occurs in 0.1-0.8% of viral particles in our typical production protocol. This can lead to a small number of cells exhibiting Cre-independent transgene expression in vivo. To address this, it is necessary to optimize the injection volume and viral titer to find the optimal AAV dosage required for Cre-dependent transgene expression and function in vivo. This may include reducing the viral particle dosage in order to reduce the likelihood of Cre-independent expression.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV_hSyn1-SIO-stGtACR2-FusionRed was a gift from Ofer Yizhar (Addgene plasmid # 105677 ; http://n2t.net/addgene:105677 ; RRID:Addgene_105677) For viral preps, please replace (Addgene plasmid # 105677) in the above sentence with: (Addgene viral prep # 105677-AAV1) or (Addgene viral prep # 105677-AAVrg)
  • For your References section:

    High-efficiency optogenetic silencing with soma-targeted anion-conducting channelrhodopsins. Mahn M, Gibor L, Patil P, Cohen-Kashi Malina K, Oring S, Printz Y, Levy R, Lampl I, Yizhar O. Nat Commun. 2018 Oct 8;9(1):4125. doi: 10.1038/s41467-018-06511-8. 10.1038/s41467-018-06511-8 PubMed 30297821
