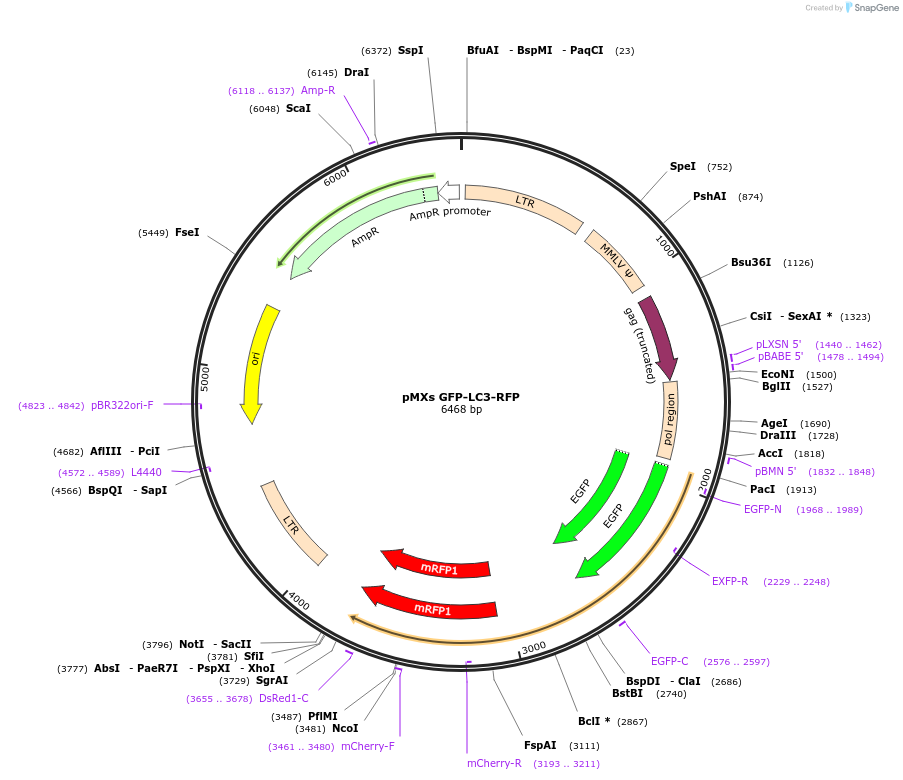

pMXs GFP-LC3-RFP
(Plasmid #117413)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 117413 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pMXs-IP
  • Backbone manufacturer
    Dr. Toshio Kitamura of the University of Tokyo
  • Backbone size w/o insert (bp) 5847
  • Vector type
    Mammalian Expression, Retroviral

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    microtubule-associated protein 1 light chain 3 beta
  • Alt name
    Map1lc3b
  • Alt name
    LC3
  • Alt name
    LC3B
  • Species
    R. norvegicus (rat)
  • Insert Size (bp)
    2200
  • GenBank ID
    NM_022867.2
  • Entrez Gene
    Map1lc3b (a.k.a. LC3B, Map1lc3, Mpl3, zbs559)
  • Tags / Fusion Proteins
    • EGFP (N terminal on insert)
    • mRFP1 (C terminal on insert)

Cloning Information

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    It has the pMX backbone
  • Articles Citing this Plasmid

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pMXs GFP-LC3-RFP was a gift from Noboru Mizushima (Addgene plasmid # 117413 ; http://n2t.net/addgene:117413 ; RRID:Addgene_117413)
  • For your References section:

    Genome-wide CRISPR screen identifies TMEM41B as a gene required for autophagosome formation. Morita K, Hama Y, Izume T, Tamura N, Ueno T, Yamashita Y, Sakamaki Y, Mimura K, Morishita H, Shihoya W, Nureki O, Mano H, Mizushima N. J Cell Biol. 2018 Aug 9. pii: jcb.201804132. doi: 10.1083/jcb.201804132. 10.1083/jcb.201804132 PubMed 30093494
