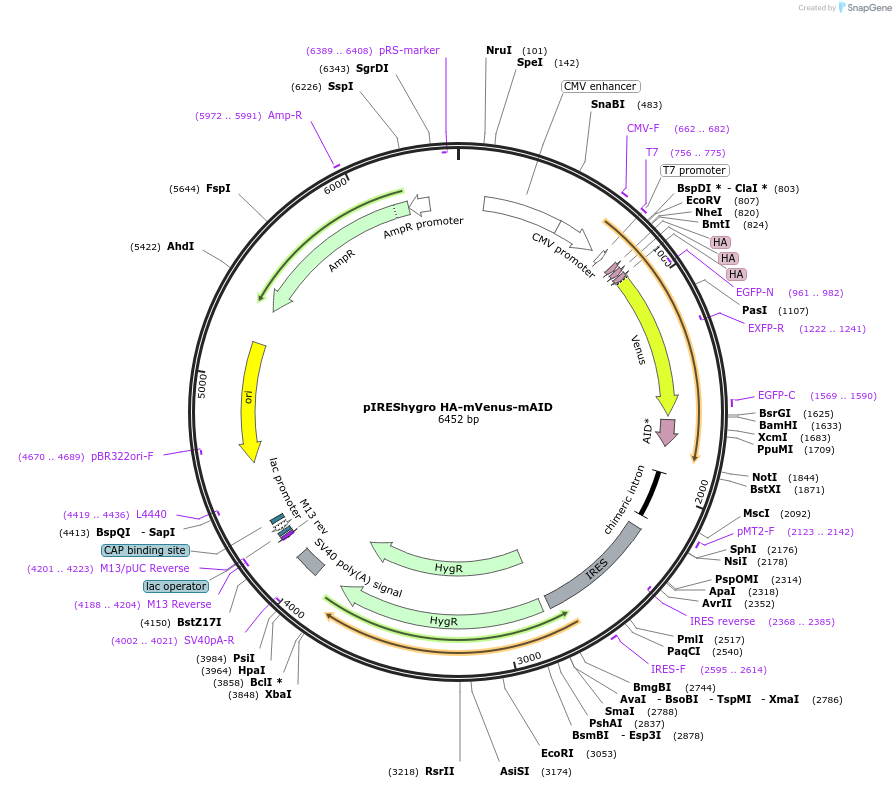

pIREShygro HA-mVenus-mAID
(Plasmid #117714)

• Purpose: Expression of HA-tagged mVenus fused to mAID
• Depositing Lab: Joerg Mansfeld
• Depositing Organization: Biotechnology Center (BIOTEC) of the Technische Universitaet Dresden
  Located in Germany
• Publication: Daniel et al Nat Commun. 2018 Aug 17;9(1):3297. doi: 10.1038/s41467-018-05855-5.

Backbone

• Vector backbone: pIREShygro3
• Backbone size w/o insert (bp): 5482
• Total vector size (bp): 6449
• Modifications to backbone: Neomycin resistance of pIRESneo3 (Clontech) was replaced with hygromycin resistance gene
• Vector type: Mammalian Expression
• Selectable markers: Hygromycin

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: mVenus-mAID
• Species: Synthetic
• Mutation: codon optimized mAID for murine expression
• Promoter: CMV
• Tag / Fusion Protein:
  • triple HA (N terminal on insert)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: NheI (not destroyed)
• 3′ cloning site: NotI (not destroyed)
• 5′ sequencing primer: CMV-F

Resource Information

• A portion of this plasmid was derived from a plasmid made by: codon-optimized A. thaliana AID (IAA17) was obtained from Francis Stewart (TU Dresden, BIOTEC, Tatzberg 47-49, 01307 Dresden, Germany.

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

codon-optimized A. thaliana AID (IAA17) is described in:

Baker, O. et al. RAC-tagging: Recombineering And Cas9-assisted targeting for protein tagging and conditional analyses. Sci Rep 6, 25529 (2016).

DNA (Catalog # 117714-D50)

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

• Amount: 50 μg
• Concentration: 1 μg/μL
• Pricing: $495 USD
• Storage: 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

DNA (Catalog # 117714-D100)

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

• Amount: 100 μg
• Concentration: 1 μg/μL
• Pricing: $585 USD
• Storage: 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
