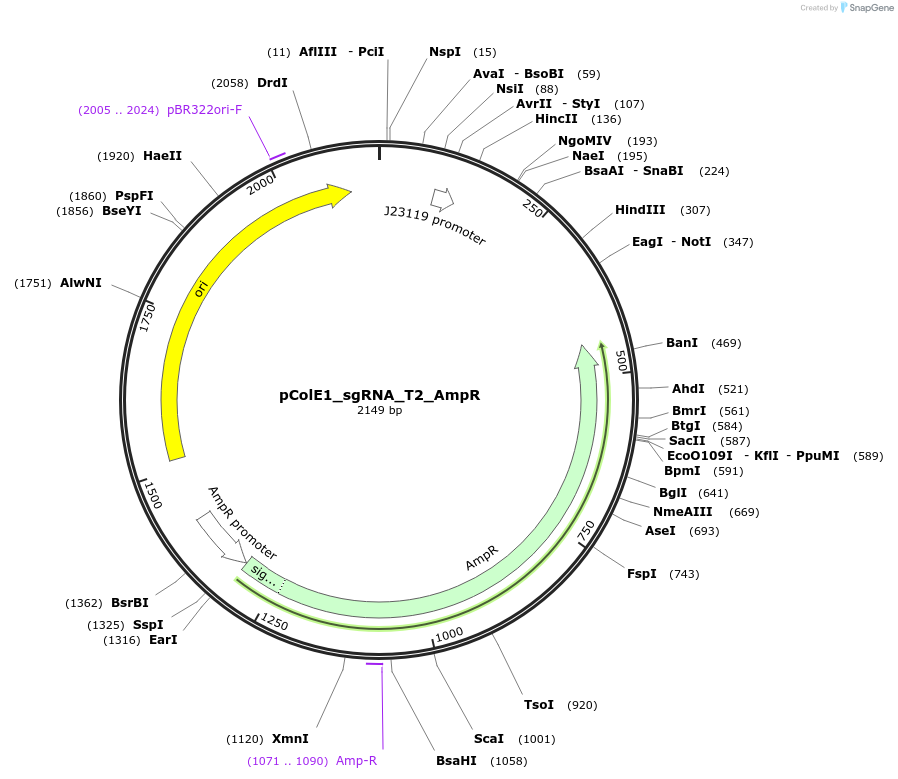

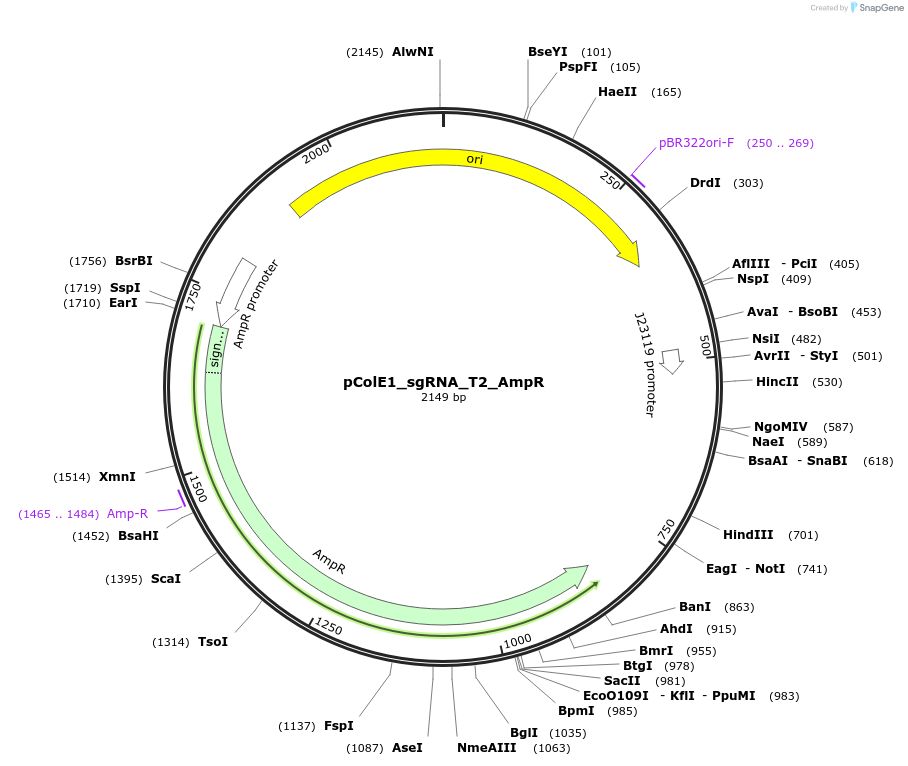

pColE1_sgRNA_T2_AmpR
(Plasmid #119159)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 119159 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    YTK095
  • Vector type
    CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    sgRNA targeting position 6 in pColE1_70a_deGFP_KanR, truncated in the 3' end
  • Alt name
    sgRNA-T2
  • gRNA/shRNA sequence
    GGTAAAATTGTCAACACGCA
  • Promoter J23119

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NsiI (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer ttatagtcctgtcgggtttcg
  • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    Dr. Chase Beisel Lab

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pColE1_sgRNA_T2_AmpR was a gift from Vincent Noireaux (Addgene plasmid # 119159 ; http://n2t.net/addgene:119159 ; RRID:Addgene_119159)
  • For your References section:

    An educational module to explore CRISPR technologies with a cell-free transcription-translation system. Collias D, Marshall R, Collins SP, Beisel CL, Noireaux V. Synth Biol (Oxf). 2019 Jan 21;4(1):ysz005. doi: 10.1093/synbio/ysz005. eCollection 2019. 10.1093/synbio/ysz005 PubMed 32995532
