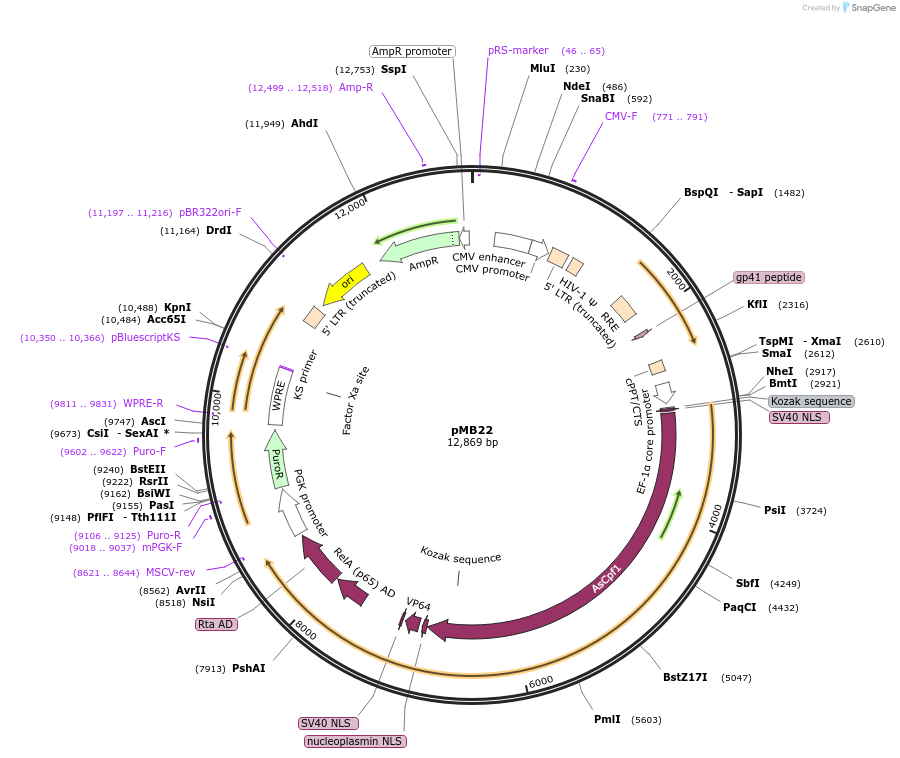

pMB22
(Plasmid #122244)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 122244 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pLL3.3
  • Backbone size w/o insert (bp) 7301
  • Total vector size (bp) 12869
  • Vector type
    Lentiviral
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    mammalian codon-optimized Acidaminococcus sp. Cas12a fused to VPR activator
  • Alt name
    AsCpf1
  • Species
    Synthetic
  • Insert Size (bp)
    5568
  • Promoter EFs
  • Tags / Fusion Proteins
    • VPR activator (C terminal on insert)
    • NLS (N terminal on insert)
    • NLS (C terminal on insert)

Cloning Information

  • Cloning method Ligation Independent Cloning
  • 5′ sequencing primer ggaaagtgatgtcgtgtactgg
  • 3′ sequencing primer ATGCTCCAGACTGCCTT
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    AsCas12a was amplified from pY108 (lenti-AsCas12a, Addgene plasmid # 84739)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pMB22 was a gift from Darjus Tschaharganeh (Addgene plasmid # 122244 ; http://n2t.net/addgene:122244 ; RRID:Addgene_122244)
  • For your References section:

    Multiplexed orthogonal genome editing and transcriptional activation by Cas12a. Breinig M, Schweitzer AY, Herianto AM, Revia S, Schaefer L, Wendler L, Cobos Galvez A, Tschaharganeh DF. Nat Methods. 2019 Jan;16(1):51-54. doi: 10.1038/s41592-018-0262-1. Epub 2018 Dec 17. 10.1038/s41592-018-0262-1 [pii] PubMed 30559432
