pLdSaCN
(Plasmid
#123261)
-
PurposeExpresses Staphylococcus aureus Cas9 (SaCas9) and its gRNA in Leishmania
-
Depositing Lab
-
Depositing OrganizationMcGill University
Located in Canada -
Citations
-

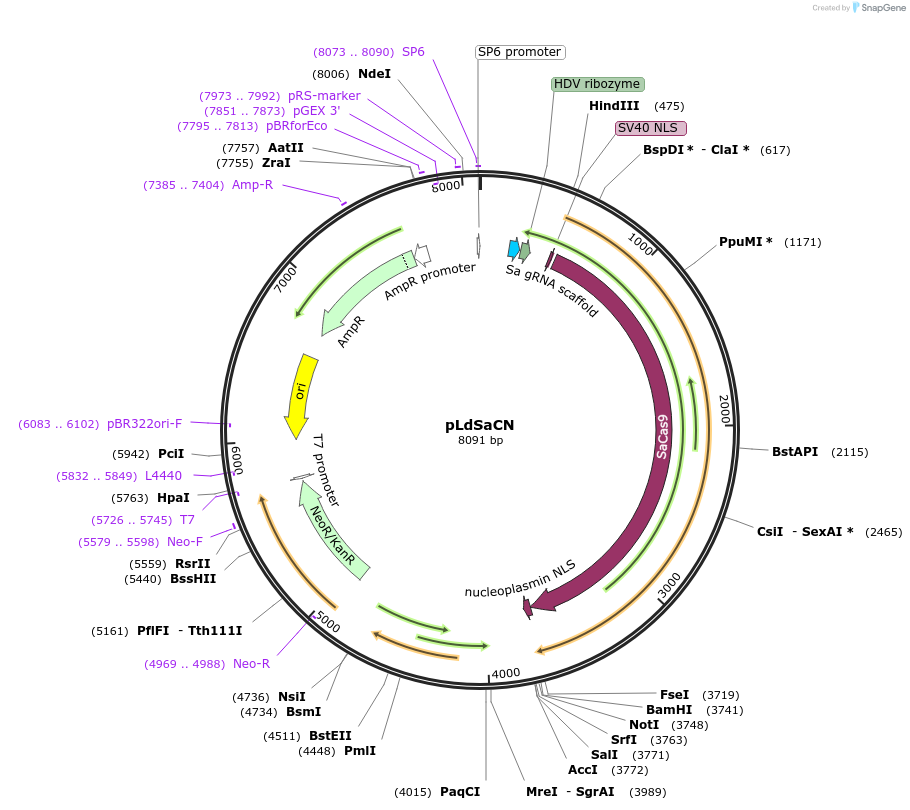

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 123261 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 123261-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 123261-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepSP72
- Total vector size (bp) 8099
-
Vector typeCRISPR ; Leishmania
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namegRNA and SaCas9
-
SpeciesLeishmania
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site Bbs I (unknown if destroyed)
- 3′ cloning site Bbs I (unknown if destroyed)
- 5′ sequencing primer SP6 promoter
- (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byDr. Feng Zhang Addgene Plasmid pX601
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 123261-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 123261-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pLdSaCN was a gift from Greg Matlashewski (Addgene plasmid # 123261 ; http://n2t.net/addgene:123261 ; RRID:Addgene_123261) -
For your References section:
Single-Strand Annealing Plays a Major Role in Double-Strand DNA Break Repair following CRISPR-Cas9 Cleavage in Leishmania. Zhang WW, Matlashewski G. mSphere. 2019 Aug 21;4(4). pii: 4/4/e00408-19. doi: 10.1128/mSphere.00408-19. 10.1128/mSphere.00408-19 PubMed 31434745
