pEGFP-SUN1_888
(Plasmid
#125851)
-
PurposeExpresses SUN1_888 tagged with GFP in mammalian cells
-
Depositing Lab
-
Depositing OrganizationEhime Prefectural University of Health Sciences
Located in Japan -
Citations
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 125851 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 125851-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 125851-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepEGFP-N3
-
Backbone manufacturerClonetech
- Backbone size w/o insert (bp) 4700
- Total vector size (bp) 7400
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameSUN1_888
-
SpeciesH. sapiens (human)
-
Insert Size (bp)2661
-
GenBank IDAB648918
-
Entrez GeneSUN1 (a.k.a. UNC84A)
-
Tag
/ Fusion Protein
- GFP (C terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site Bgl II (unknown if destroyed)
- 3′ cloning site Sal I (unknown if destroyed)
- 5′ sequencing primer AAATTAGATCTGCCACCATGGATTTTTCTCGGCTTCACATGTACAGT
- 3′ sequencing primer AAATTGTCGACCTTGACAGGTTCGCCATGAACTCTGAACCG
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 125851-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 125851-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pEGFP-SUN1_888 was a gift from Miki Hieda (Addgene plasmid # 125851 ; http://n2t.net/addgene:125851 ; RRID:Addgene_125851) -
For your References section:
SUN1 splice variants, SUN1_888, SUN1_785, and predominant SUN1_916, variably function in directional cell migration. Nishioka Y, Imaizumi H, Imada J, Katahira J, Matsuura N, Hieda M. Nucleus. 2016 Nov;7(6):572-584. doi: 10.1080/19491034.2016.1260802. 10.1080/19491034.2016.1260802 PubMed 27858498

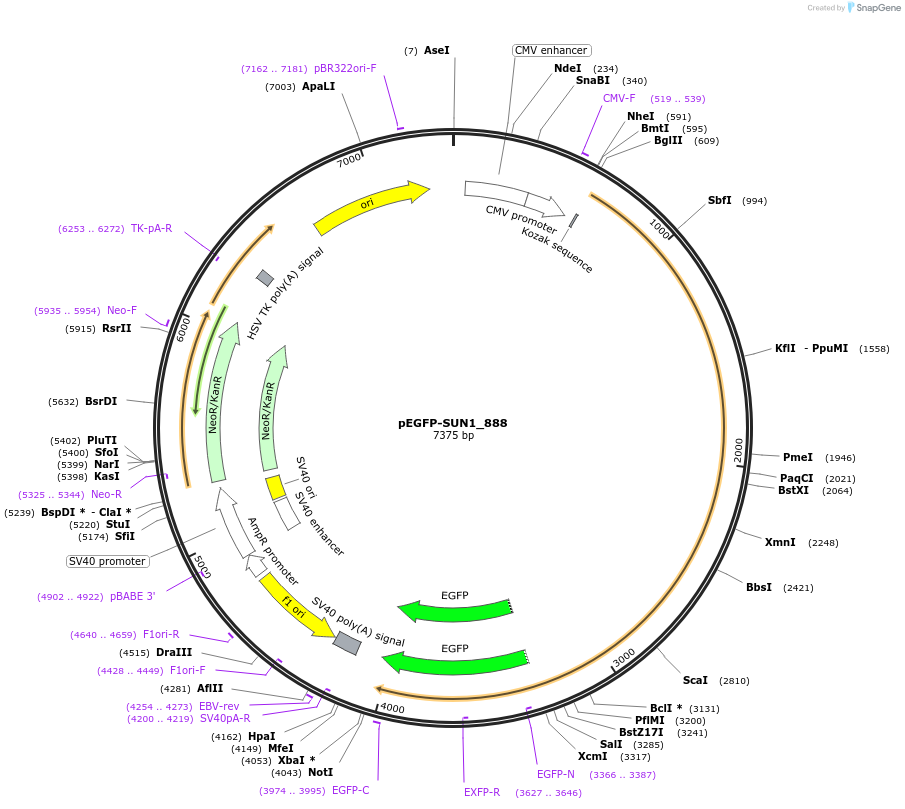

Map uploaded by the depositor.
