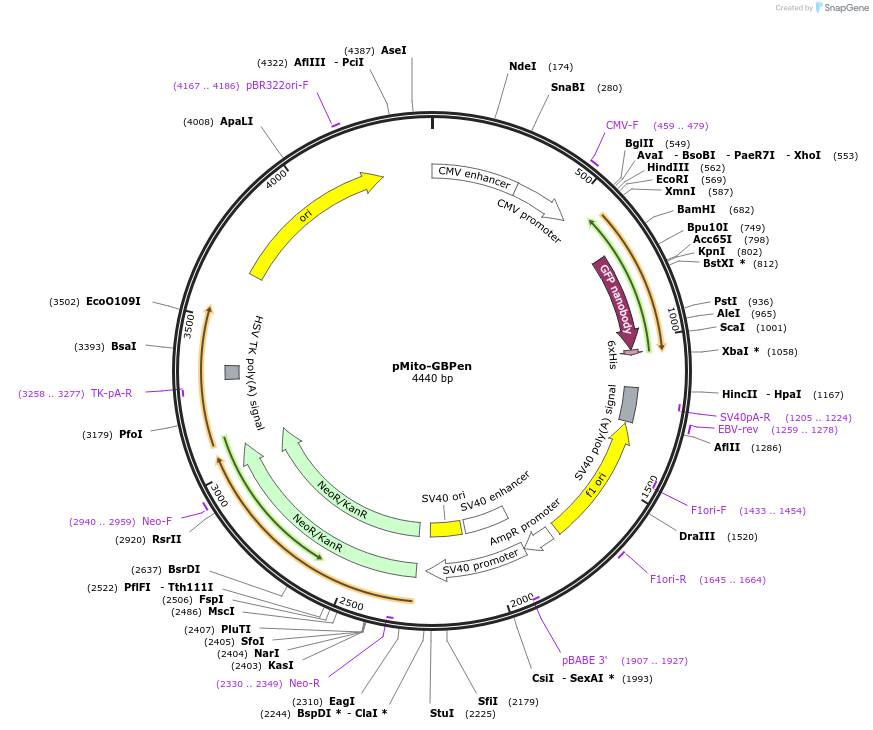

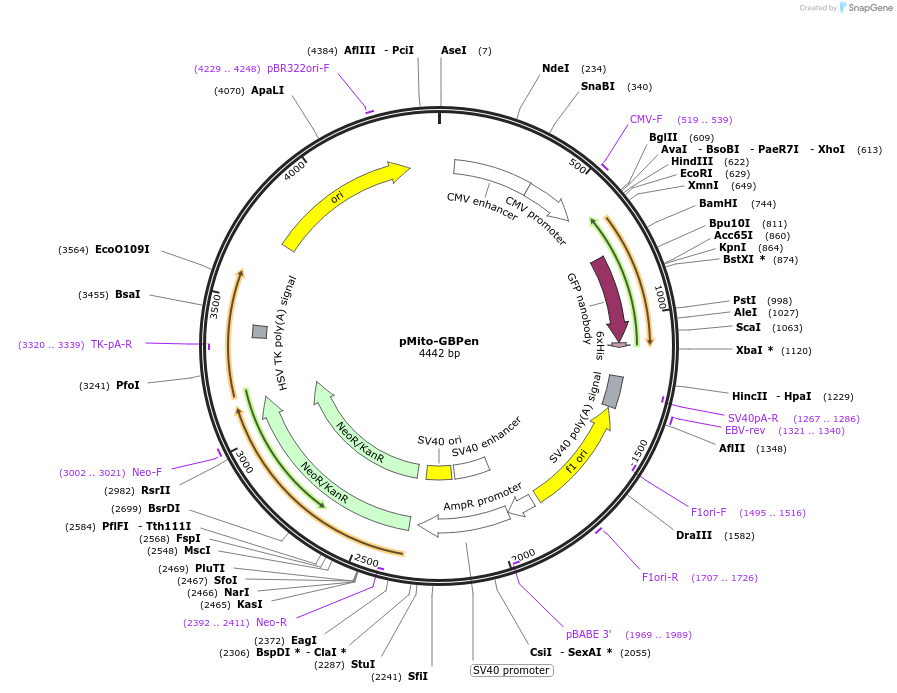

pMito-GBPen
(Plasmid #128269)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 128269 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pEGFP-C1
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Mito-GBPen
  • Alt name
    DongleTrap
  • Alt name
    Tom70(MTS)-GBPen
  • Species
    Synthetic
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site XbaI (not destroyed)
  • 5′ sequencing primer -
  • 3′ sequencing primer TTTAAAGCAAGTAAAACCTC
  • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    Gene synthesis
  • Terms and Licenses
  • Industry Terms
    • Not Available to Industry
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pMito-GBPen was a gift from Stephen Royle (Addgene plasmid # 128269 ; http://n2t.net/addgene:128269 ; RRID:Addgene_128269)
  • For your References section:

    Unintended perturbation of protein function using GFP nanobodies in human cells. Kuey C, Larocque G, Clarke NI, Royle SJ. J Cell Sci. 2019 Nov 6;132(21). pii: jcs.234955. doi: 10.1242/jcs.234955. 10.1242/jcs.234955 PubMed 31601614
