pAG328 td-iFAST
(Plasmid
#130811)
-
PurposeExpresses td-iFAST in mammalian cells
-
Depositing Lab
-
Depositing OrganizationCNRS UMR 8640, Processus d'Activation Sélectif par Transfert d'Energie Uni-électronique ou Radiatif (PASTEUR)
Located in France -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 130811 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 130811-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 130811-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepIRES
- Backbone size w/o insert (bp) 4004
- Total vector size (bp) 4765
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nametd-iFAST
-
Alt nametdFAST2
-
Alt nametandem iFAST, tandem FAST2
-
Alt nametandem improved fluorescence-activating and absorption-shifting tag
-
SpeciesSynthetic
-
Insert Size (bp)761
- Promoter CMV
-
Tag
/ Fusion Protein
- myc-tag (C terminal on insert)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer CGCAAATGGGCGGTAGGCGTG
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 130811-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 130811-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pAG328 td-iFAST was a gift from Arnaud Gautier (Addgene plasmid # 130811 ; http://n2t.net/addgene:130811 ; RRID:Addgene_130811) -
For your References section:
Improved Chemical-Genetic Fluorescent Markers for Live Cell Microscopy. Tebo AG, Pimenta FM, Zhang Y, Gautier A. Biochemistry. 2018 Oct 2;57(39):5648-5653. doi: 10.1021/acs.biochem.8b00649. Epub 2018 Sep 17. 10.1021/acs.biochem.8b00649 PubMed 30204425

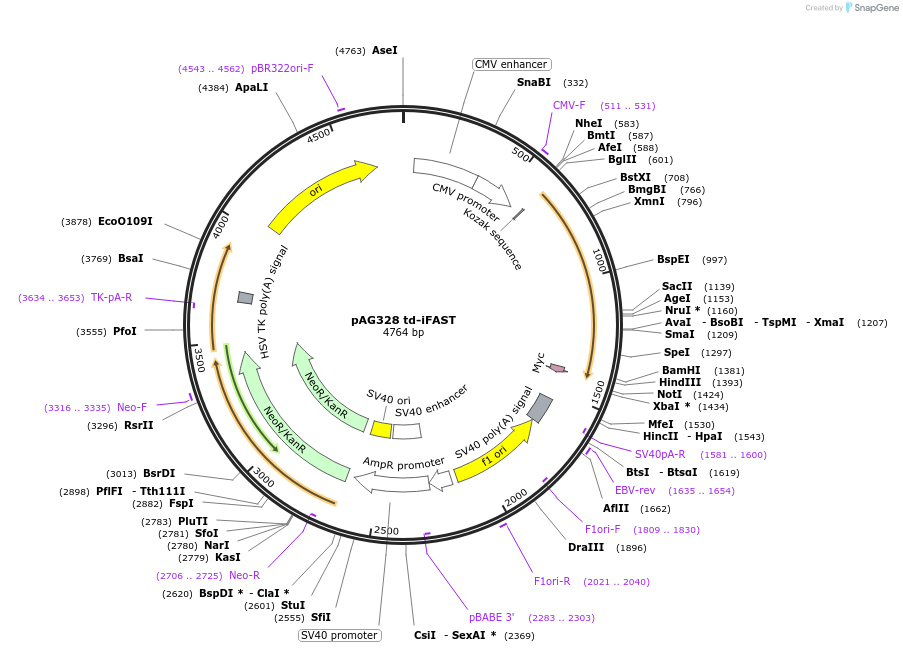

Map uploaded by the depositor.

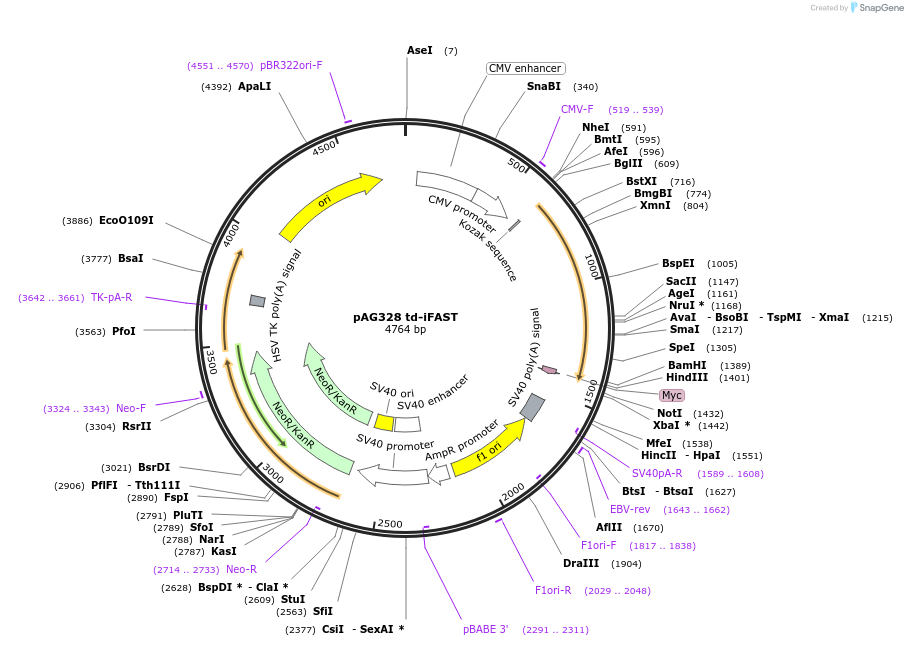

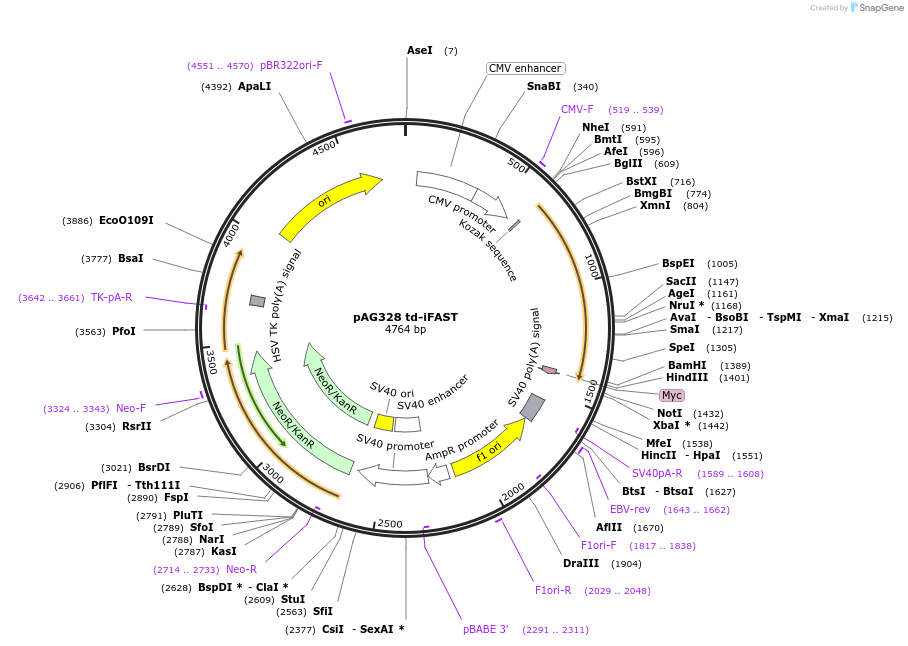

Map uploaded by the depositor.
